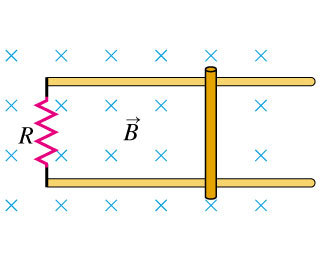

A 0.204 m -long bar moves on parallel rails that are connected through a 6.05 Ω resistor, as shown in the following figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and rails. The circuit is in a uniform magnetic field 1.45 T that is directed into the plane of the figure. At an instant when the induced current in the circuit is counterclockwise and equal to 1.70 A , what is the magnitude of the velocity of the bar?

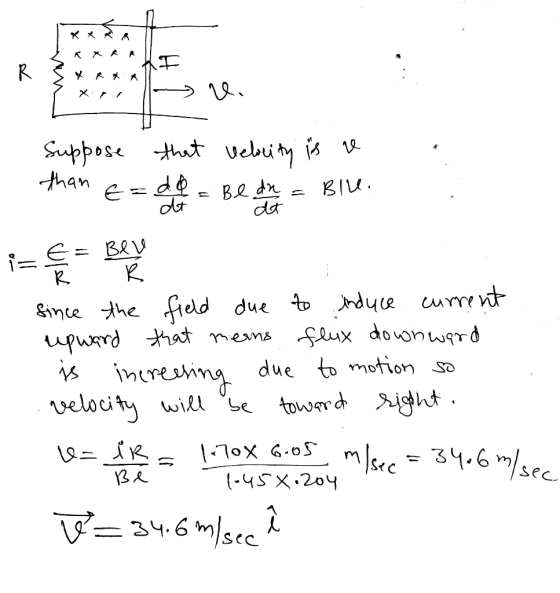

Homework Answers
Add Answer to:
A 0.204 m -long bar moves on parallel rails that are connected
through a 6.05 Ω...
A 0.282 m -long bar moves on parallel rails that are connected through a 6.03 Ω...
A 0.282 m -long bar moves on parallel rails that are connected through a 6.03 Ω resistor, as shown in the following figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and rails. The circuit is in a uniform magnetic field 1.30 Tthat is directed into the plane of the figure. Part A At an instant when the induced current in the circuit is counterclockwise and equal to 1.85 A ,...
A 0.344 m long metal bar is pulled to the left by an applied force F
A 0.344 m long metal bar is pulled to the left by an applied force F. The bar rides on parallel metal rails connected through a 44.1 2 resistor, as shown in the following figure(Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and rails. The circuit is in a uniform 0.602 T magnetic field that is directed out of the plane of the figure. Part A At the instant when the bar is...
A 0.392 m long metal bar is pulled to the left by an force F ....
A 0.392 m long metal bar is pulled to the left by an force F . The bar rides on parallel metal rails connected through a 48.4 Ω resistor, as shown in the following figure(Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and rails. The circuit is in a uniform 0.638 T magnetic field that is directed out of the plane of the figure. At the instant when the bar is...
A 1.10-m-long metal bar is pulled to the right at a steady 4.0 m/s perpendicular to...
A 1.10-m-long metal bar is pulled to the right at a steady 4.0 m/s perpendicular to a uniform, 0.790-T magnetic field. The bar rides on parallel metal rails connected through R = 25.5-Ω, as shown in the figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and the rails. A) Calculate the magnitude of the emf induced in the circuit. Express your answer using two significant figures. B)Find the direction of...
A 1.50-m-long metal bar is pulled to the right at a steady 4.0 m/s perpendicular to a uniform
A 1.50-m-long metal bar is pulled to the right at a steady 4.0 m/s perpendicular to a uniform, 0.5T magnetic field. The bar rides on parallel metal rails connected through R = 24.0Ω, as shown in the figure below, so the apparatus makes a complete circuit. You can ignore the resistance of the bar and the rails. a) (5.0 pts) Calculate the magnitude of the emf induced in the circuit. b) (5.0 pts) Find the direction of the current induced in the...
In the figure below, a metal bar sitting on two parallel conducting rails, connected to each other by a resistor, is pulled to the right at a constant speed.
A vertical bar and two parallel horizontal rails lie in the
plane of the page. The parallel rails run from left to right, with
one a distance ℓ above the other. The left ends of the rails are
connected by a vertical wire containing a resistor R. The
vertical bar lies across the rails to the right of the wire. Force
vector Fapp points from the bar toward
the right.In the figure below, a metal bar sitting on two parallel...
Exercise 29.28 Constants Part A A 1.15-m-long metal bar is pulled to the right at a...
Exercise 29.28 Constants Part A A 1.15-m-long metal bar is pulled to the right at a steady 6.0 m/s perpendicular to a uniform, 0.765-T magnetic field. The bar rides on parallel metal rails connected through R-24.5-2, as shown in the figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and the rails. Calculate the magnitude of the emf induced in the circuit Express your answer using two significant figures. Request Answer...
A 0.95 m long metal bar is pulled to the right at a steady 7.1 m/s perpendicular to a uniform
Magnetic Flux: A 0.95 m long metal bar is pulled to the right at a steady 7.1 m/s perpendicular to a uniform, 2.20 T magnetic field. The bar rides on parallel metal rails connected through R= 144 Ω, as shown, so that the apparatus makes a complete circuit. You can ignore the resistance of the bar and the rails. What is the current in the wire and what direction does it flow (Clockwise or Counterclockwise)
can someone explain these to me? answers are circled (5 pts) 19. Two parallel conducting rails...
can someone explain these to me? answers are circled
(5 pts) 19. Two parallel conducting rails are connected at one end by a resistor. A bar slides on the rails with speed v, in the direction away from the resistor. The magnetic field that is directed into the page. What is the direction of the current induced in the circuit that consists of the bar, rails and resistor? X X X (a) clockwise (b) counterclockwise (5 pts) 20. A horizontal...
A vertical bar and two parallel horizontal rails lie in the
plane of the page. The parallel rails run from left to right, with
one a distance ℓ above the other. The left ends of the rails are
connected by a vertical wire containing a resistor R. The
vertical bar lies across the rails to the right of the wire. Force
vector Fapp points from the bar toward
the right.In the figure below, a metal bar sitting on two parallel...
Exercise 29.28 Constants Part A A 1.15-m-long metal bar is pulled to the right at a steady 6.0 m/s perpendicular to a uniform, 0.765-T magnetic field. The bar rides on parallel metal rails connected through R-24.5-2, as shown in the figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and the rails. Calculate the magnitude of the emf induced in the circuit Express your answer using two significant figures. Request Answer...
can someone explain these to me? answers are circled
(5 pts) 19. Two parallel conducting rails are connected at one end by a resistor. A bar slides on the rails with speed v, in the direction away from the resistor. The magnetic field that is directed into the page. What is the direction of the current induced in the circuit that consists of the bar, rails and resistor? X X X (a) clockwise (b) counterclockwise (5 pts) 20. A horizontal...
