A 1.10-m-long metal bar is pulled to the right at a steady 4.0 m/s perpendicular to...

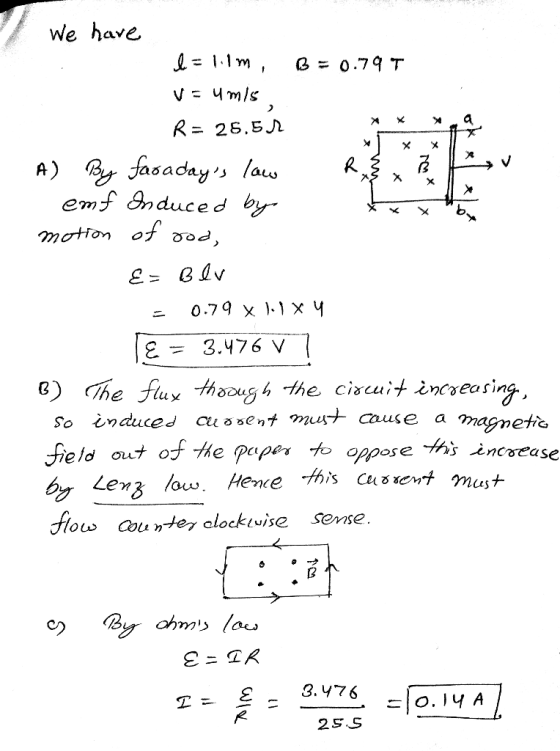

A 1.10-m-long metal bar is pulled to the right at a steady 4.0 m/s perpendicular to a uniform, 0.790-T magnetic field. The bar rides on parallel metal rails connected through R = 25.5-Ω, as shown in the figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and the rails.
A) Calculate the magnitude of the emf induced in the circuit.
Express your answer using two significant figures.
B)Find the direction of the current induced in the circuit.
(clockwise or counterclockwise)
C) Calculate the current through the resistor. Express your answer
using two significant figures.
Homework Answers
