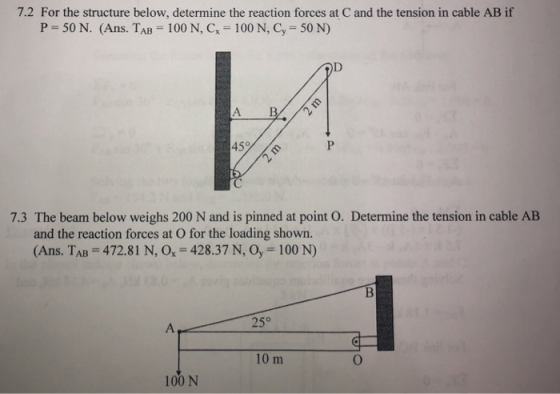

7.2 For the structure below, determine the reaction forces at C and the tension in cable...

Question

Question

science physics

Answer 1

Answer #1

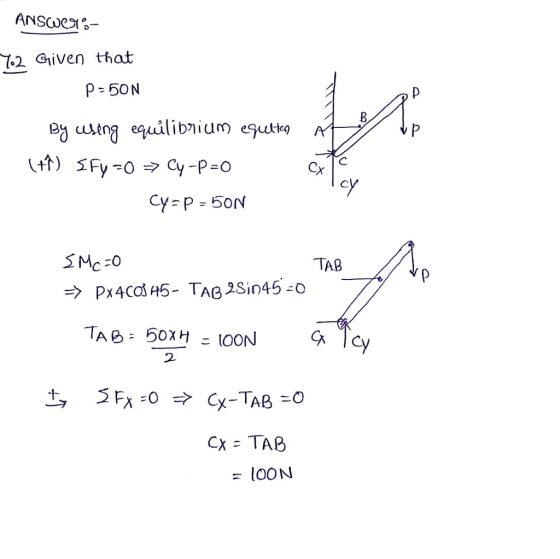

Given that 2 су-P-50N TAB 2 TAB O

Answer 2

Similar Homework Help Questions

7.5 For the structure loaded as shown below, calculate the tension in cable AB and the...

7.5 For the structure loaded as shown below, calculate the tension in cable AB and the reaction forces at pin C for the case where L = 8 ft. (Ans. TAB-6,212.90 lb, Cx 5,840.13 lb, Cy 875.0 lb) 20° 2L 2,500 lb 500 lb 7.6 Calculate the reaction forces at point A and the tension in cable BC for the given structure. (Ans. T-2, 121.32 N, Ax = 1,500 N, A,-3,500 N) 1.5 m B 2,000 N : 2 m...
calculate the tension in cable and reaction forces at pin For the structure loaded as shown...

calculate the tension in cable and reaction forces at pin For the structure loaded as shown below, calculate the tension in cable A? and the reaction forces at pin C for the case where L = 9 ft. (Ans. ?_AB = 6, 743.67 lb. C_x = 6.111.84 lb. C_y = 1.250.00 lb)
Determine the tension in the cable and reaction forces at A. (A) Draw the free-body diagram...

Determine the tension in the cable and reaction forces at A. (A) Draw the free-body diagram of the beam. (B) Determine the tension in the cable and the reaction forces at A 30° 30 in 800 1b 30 in 4-30 in

Knowing that the tension in cable BCis 760 N, determine the resultant of the three forces...

Knowing that the tension in cable BCis 760 N, determine the resultant of the three forces exerted at Point B of beam AB 840 mm- L= 1160 mm 800 mm 13 12 780 N 500 N The magnitude of the resultant of the three forces is The direction of the resultant of the three forces is γ N.
N Determine the tension in each cable and the components of the reaction at D needed...

N Determine the tension in each cable and the components of the reaction at D needed to support the load F. Use a = 8.8 m, b = 3.4 m, c = 3.0 m, and F = 1100 N for your calculations. Your Answer: Tension in cable AB in N (round the result to the nearest integer): Tension in cable AC in N (round the result to the nearest integer): Magnitude of the x-component of the reaction at Din N...
Determine the required tension in cable BC if the resultant of the three forces exerted at...

Determine the required tension in cable BC if the resultant of the three forces exerted at Point B is to be vertical. The required tension in cable BC is _____N Determine the corresponding magnitude of the resultant. The corresponding magnitude of the resultant is _____N Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N

The required tension cable AB 2001. Determine Vetem Torce PTT ist be applied to the pedal...

The required tension cable AB 2001. Determine Vetem Torce PTT ist be applied to the pedal corresponding reaction at the by the Problem 6. PROBLEM 4.32 Neglecting friction. determine the tension m cable ABD and the reaction at C when e = 45° SO
Determine the tension in the cable and the horizontal and vertical components of reaction of the...

Determine the tension in the cable and the horizontal and vertical components of reaction of the pin 1. The pulley at D is frictionless and the cylinder weighs 70 lb (Figure 1) Part A Determine the tension in the cable Express your answer to three significant figures and include the appropriate units. ROO? Units 1 Value Submit Request Answer Part B Determine the horizontal and vertical components of reaction of the pin A. Assume that the positive x and y...
1B4. Determine the tension in cable AB needed to support the 500-lb cylinder (W- 200 Ib)...

1B4. Determine the tension in cable AB needed to support the 500-lb cylinder (W- 200 Ib) TAB? TAG 6 fi 6 ft ft ft 6 TAD (A) 250.0 lb (B) 100.0 lb (C) 155.6 lb (D) 320 lb

HW-18 Problem 5.16 Determine the tension in the cable and the horizontal and vertical components of...

HW-18 Problem 5.16 Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at Dis frictionless and the cylinder weighs 78 lb. (Figure 1) Part A Determine the teng Express your ans Value Figure < 1 of 1 > Submit Reques Part B Determine the horizontal Express your answers respectively. -5ft- Sit - 3ft O Type here to search o te 9 Part A Determine the tension in the cable...
