calculate the tension in cable and reaction forces at pin
Homework Answers

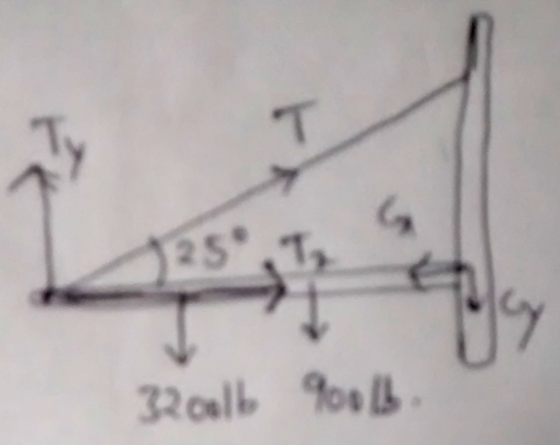

The net torque about point c is zero
torque T = F * perpendicular distance
or T = r * F * sin(theta)
the net torque about point c is
-(TAB * sin(25) * 4L) + (3200*3L) + (900*2L) = 0
TAB = 6743.67 lb
2)
The horizontal component of tension is
cx = TAB * cos(25)
cx = 6111.84 lb
3)
the vertical component of tension is
Ty = TAB * sin(25)
Ty = 2850 lb
the vertical reaction force at c is
cy = 3200 + 900 - Ty
cy = 4100 - 2850
cy = 1250 lb
Add Answer to:
calculate the tension in cable and reaction forces at pin
For the structure loaded as shown...
7.5 For the structure loaded as shown below, calculate the tension in cable AB and the...

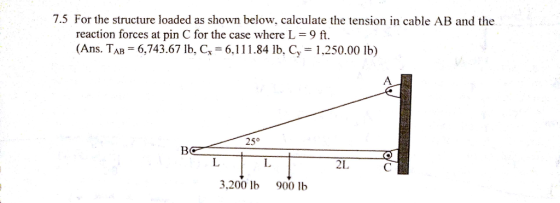

7.5 For the structure loaded as shown below, calculate the tension in cable AB and the reaction forces at pin C for the case where L = 8 ft. (Ans. TAB-6,212.90 lb, Cx 5,840.13 lb, Cy 875.0 lb) 20° 2L 2,500 lb 500 lb 7.6 Calculate the reaction forces at point A and the tension in cable BC for the given structure. (Ans. T-2, 121.32 N, Ax = 1,500 N, A,-3,500 N) 1.5 m B 2,000 N : 2 m...
7.2 For the structure below, determine the reaction forces at C and the tension in cable...
7.2 For the structure below, determine the reaction forces at C and the tension in cable AB if P=50 N. (Ans. TAB-100 N, C,-100 N, C,-50N) 45/ 7.3 The beam below weighs 200 N and is pinned at point O. Determine the tension in cable AB and the reaction forces at O for the loading shown. (Ans. TAB- 472.81 N, Ox 428.37 N, Oy 100 N) 25° 10 m 100 N
ne the tension in the cable and the horizontal and vertical components of reaction of the...
ne the tension in the cable and the horizontal and vertical components of reaction of the pin A The pulley at D is frictionless and the cylinder weighs 80 lb 5 ft 3 ft Problem # 1 Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb 5 ft 5 ft 3 ft
Statics Question. Please answer fast Problem 4: For the truss loaded as shown. Determine the forces...
Statics Question. Please answer fast
Problem 4: For the truss loaded as shown. Determine the forces in members EF, EG, and FG. State whether each of these members is in tension (T) or compression (C). You may use whichever method you would like to solve. H 1200 N 4 m A с E 4 m B D F 3 m 3 m 3 m Problem 5: For the frame loaded as shown, find all reactions from the pin supports at...
Determine the tension in the cable and the horizontal and vertical components of reaction of the...
Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A The pulley at D is frictionless and the cylinder weighs 80 lb. 5 ft 5 ft3
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller...
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller reaction at support A: (30 pts) fine the forces in members , DC, DG, and HG using the method of sections through section aa. Indicate whether these forces are in compression (C) or tension (T). (10 pts) list any zero-force members that you can determine. 30 k 30k 30k 15 k 12 ft 4 at 16 ft = 64 ft -
1. 2D RIGID BODY EQUILIBRIUM Determine the support reactions at A (pin) and the tension in...
1. 2D RIGID BODY EQUILIBRIUM Determine the support reactions at A (pin) and the tension in rope BC for the system shown below. The blue line is a rope. Neglect the weight of the structure. wall 5 lb/ft 3 ft 6 ft 8 ft. . 8 ft ................... 4 ft
Determine the tension developed in each cable. Due to symmetry, the tension in the four cables...
Determine the tension developed in each cable. Due to
symmetry, the tension in the four cables is the same.
The resultant of the four forces shown in (Figure 1) is FR={-350k} lb. Part A Determine the tension developed in each cable. Due to symmetry, the tension in the four cables is the same. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) Figure << 1 of 1 > GÅR ? FA = Fp =...
Determine the required tension in cable BC if the resultant of the three forces exerted at...
Determine the required tension in cable BC if the
resultant of the three forces exerted at Point B is to be
vertical.
The required tension in cable BC is _____N
Determine the corresponding magnitude of the resultant.
The corresponding magnitude of the resultant is _____N
Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate...
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
7.5 For the structure loaded as shown below, calculate the tension in cable AB and the reaction forces at pin C for the case where L = 8 ft. (Ans. TAB-6,212.90 lb, Cx 5,840.13 lb, Cy 875.0 lb) 20° 2L 2,500 lb 500 lb 7.6 Calculate the reaction forces at point A and the tension in cable BC for the given structure. (Ans. T-2, 121.32 N, Ax = 1,500 N, A,-3,500 N) 1.5 m B 2,000 N : 2 m...
7.2 For the structure below, determine the reaction forces at C and the tension in cable AB if P=50 N. (Ans. TAB-100 N, C,-100 N, C,-50N) 45/ 7.3 The beam below weighs 200 N and is pinned at point O. Determine the tension in cable AB and the reaction forces at O for the loading shown. (Ans. TAB- 472.81 N, Ox 428.37 N, Oy 100 N) 25° 10 m 100 N
ne the tension in the cable and the horizontal and vertical components of reaction of the pin A The pulley at D is frictionless and the cylinder weighs 80 lb 5 ft 3 ft Problem # 1 Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb 5 ft 5 ft 3 ft
Statics Question. Please answer fast
Problem 4: For the truss loaded as shown. Determine the forces in members EF, EG, and FG. State whether each of these members is in tension (T) or compression (C). You may use whichever method you would like to solve. H 1200 N 4 m A с E 4 m B D F 3 m 3 m 3 m Problem 5: For the frame loaded as shown, find all reactions from the pin supports at...
Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A The pulley at D is frictionless and the cylinder weighs 80 lb. 5 ft 5 ft3
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller reaction at support A: (30 pts) fine the forces in members , DC, DG, and HG using the method of sections through section aa. Indicate whether these forces are in compression (C) or tension (T). (10 pts) list any zero-force members that you can determine. 30 k 30k 30k 15 k 12 ft 4 at 16 ft = 64 ft -
1. 2D RIGID BODY EQUILIBRIUM Determine the support reactions at A (pin) and the tension in rope BC for the system shown below. The blue line is a rope. Neglect the weight of the structure. wall 5 lb/ft 3 ft 6 ft 8 ft. . 8 ft ................... 4 ft
Determine the tension developed in each cable. Due to
symmetry, the tension in the four cables is the same.
The resultant of the four forces shown in (Figure 1) is FR={-350k} lb. Part A Determine the tension developed in each cable. Due to symmetry, the tension in the four cables is the same. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) Figure << 1 of 1 > GÅR ? FA = Fp =...
Determine the required tension in cable BC if the
resultant of the three forces exerted at Point B is to be
vertical.
The required tension in cable BC is _____N
Determine the corresponding magnitude of the resultant.
The corresponding magnitude of the resultant is _____N
Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
4- For the pin-jointed truss structure shown below, show that the truss is statically determinate then calculate the internal member forces in member CD and AB. State whether the members are in tension or compression. 3 m 3m 60kN 3m
