Question

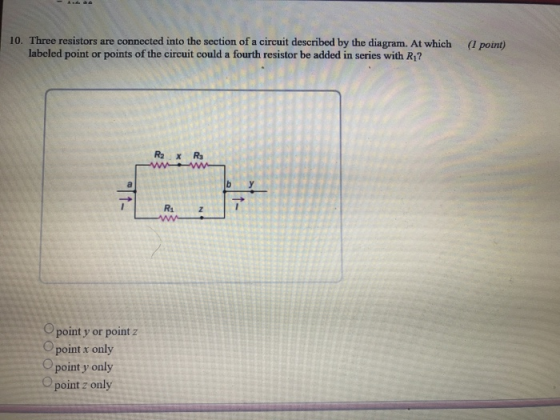

10. Three resistors are connected into the section of a circuit described by the diagram. At which (I point) labeled point or points of the circuit could a fourth resistor be added in series with R1? R2 x Rs R1 z O point y or point z point x only O point y only O point z only
0 0
Add a comment Improve this question Transcribed image text
Answer #1

at point z only.

then only the fourth resistor will be end to end connect to R1. then they will be in series. so that the series condition will be satisfied because the same current will flow in R1 and the fourth resistor.

Add a comment
Know the answer?
Add Answer to:
10. Three resistors are connected into the section of a circuit described by the diagram. At...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 9. In this section of a circuit, resistors Ri, Ro, and Rs combine for an equivalent...

    9. In this section of a circuit, resistors Ri, Ro, and Rs combine for an equivalent resistance of 4.0 Ω. What is R2? Let R1-60 Ω and R3-20 Ω. ( point) Ri 10Ω 012Ω 3.0 Ω 1.2Ω 8. Three resistors are connected into the section of a circuit described by the diagram. Then the (I point) wire is cut at point t, and the two cut ends of the wire are separated. Through which of the three resistors, if any,...

  • 6. In the circuit described by the diagram, which pair of resistors is connected in parallel?...

    6. In the circuit described by the diagram, which pair of resistors is connected in parallel? (I point) R2 a R Rs b Rs O R1 and R3 Ri and R4 R2 and R and R PR and Rs 5. In this section of a circuit, a current of 5.0 A flows across Ri. Find the potential difference ( point) between point a and point b. Let R1 -3.02, R2 8.0 2, and Rs 10.0 R2 a R 922 V...

  • A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...

    A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.

  • A 24.0 volt battery is connected to three resistors to make a complete circuit. Resistor R1...

    A 24.0 volt battery is connected to three resistors to make a complete circuit. Resistor R1 = 15 ohm is in series with two other resistors that are in parallel with each other, R2 = 25.0 ohm and R3 = 15.0 ohm. What is the current that flows through the resister R1? Please explain how the answer is 0.98462 A.

  • R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors,...

    R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three batteries (VA. Vg, and Vc). The resistor values are: R1-2 Ohms, R-R3=8 Ohms, and the battery voltages are VA-25 V, V3=15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA ve R2 R3 O 0.75 W 1.25 W 267 W 4.2 w O 5.5 W

  • 1. Three resistors are connected in a series-parallel circuit as shown. (R1 > R2 > R3)....

    1. Three resistors are connected in a series-parallel circuit as shown. (R1 > R2 > R3). Which potential differences would be greater, the voltage across R2 or the voltage across R3? Explain. 2. Which of the resistors has the largest voltage drop across it? R2

  • A. Draw the complex circuit described below A 12 volt emf source connected in series with...

    A. Draw the complex circuit described below A 12 volt emf source connected in series with R1 (3Ω) , in series R1 there are R2 (2Ω) and lamp 1 (4Ω) which are in parallel with each other. Connected in series with that parallel loop is another parallel loop, which includes on one branch , R3 (5Ω), R4 (2Ω) and Lamp 2 (3Ω) in series, and on the other branch of this parallel loop is R5 (7Ω), After that parallel branch...

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA, Ve, and Vd. The resistor values are: R2-2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA-25V, V3-15 V, and Vc-20V. When the circuit is connected, what will be the power dissipated by Rs? Vc HA RA w VA VE R2 [m R3 O 0.75 W 125 W 2.67 W 42W 5.5 W

  • Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

    Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
