A wall is built that has an outer steel (k= 43 J/s m degrees C) wall...

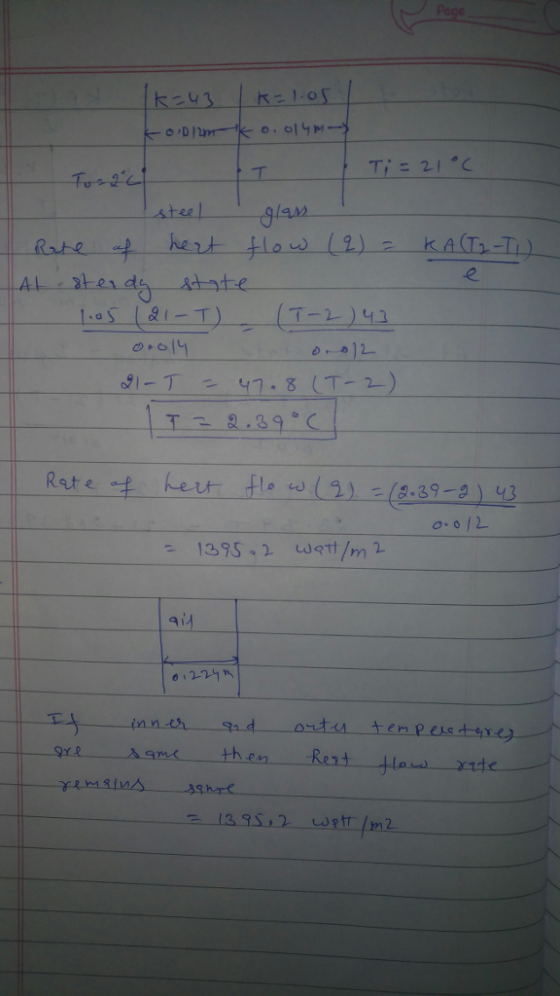

A wall is built that has an outer steel (k= 43 J/s m degrees C) wall that is 0.012 m thick, then an inner wall of 0.014 m thick glass (k= 1.05 J/s m degrees C). The inside temperature is 21 degrees C and the outside is 2 degrees C.
Q1: What is the temperature at the steel/glass interface?
Q2: What would be the rate of heat flow?
Q3: If the two walls were separated by a 0.224 m layer of air, what would the rate of heat flow be then?
Homework Answers
Add Answer to:
A wall is built that has an outer steel (k= 43 J/s m degrees C)
wall...
