6. You can vary the length of an air column, open at one end 1 point and closed at the other. You strike a tuning fork that vibrates at 512 Hz. Which of the following lengths of the air column will not allow for a standing wave pattern to occur? Sound in air is 340 m/s?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

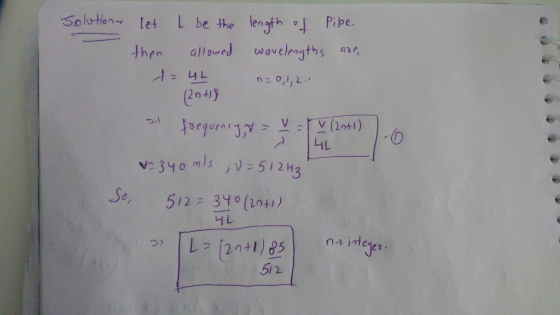

Options are not visible though the final formula to be used in finding the correct option is given in the attached image. All we have to do next is just substitute values of L given and check when the condition derived is satisfied with n as integer.Soloto,-. Iet L be the length oj p;pe. LIL 0 So/ 5122340(int) 너レ 512

0 0
