1. For the following systems derive the equation of motion in terms of the coordinates shown...

Question

Question

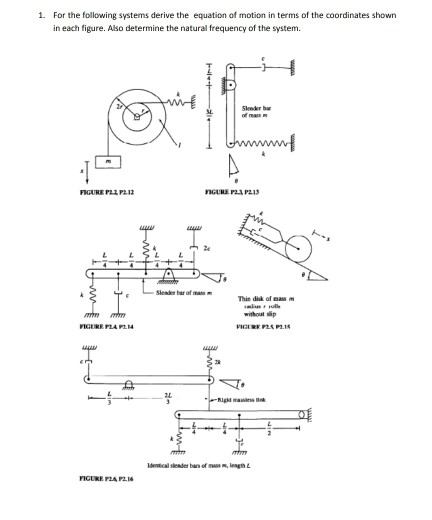

1. For the following systems derive the equation of motion in terms of the coordinates shown in each figure. Also determine t

engineering Mechanical-Engineering

Answer 1

Answer #1

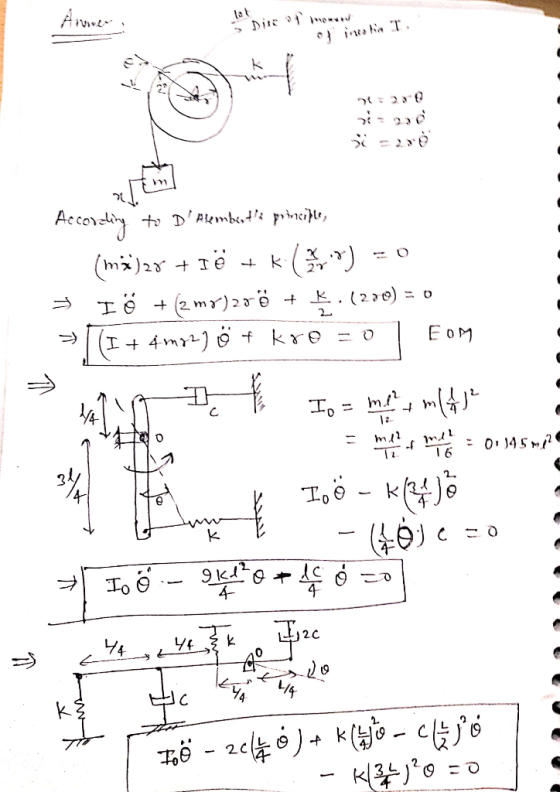

Arview Discote of intestin T 04:14 si = 20 Accorating to DAlembents principle, (m3)28 + Ië + K () = 0 5 I ő + (2m)2rë + K.

Answer 2

Similar Homework Help Questions

For the following systems derive the equation of motion in terms of the coordinates shown in each figure. Also determine the natural frequency of the system.

For the following systems derive the equation of motion in terms of the coordinates shown in the figure.
Question 2 (Combinatorial system). For the system shown in Figure 2, the disk rolls without slipping,...

Question 2 (Combinatorial system). For the system shown in Figure 2, the disk rolls without slipping, the masses of the pulleys are negligible, and the cable is inextensible. The coordinates are defined relative to the static equilibrium position of the system. Derive the equation of motion in terms of y (mass position). X WWW Figure 2: Rotational / translational system.
Derive the equation of motion and find the natural frequency of the system shown below (1)...

Derive the equation of motion and find the natural frequency of the system shown below (1) Cylinder, mass m k R с Pure rolling 1 Αν B I US EE Draw a free body diagram (FBD) with all the forces. Use either Newton's or Lagrange's energy method to derive the equation of motion - Calculate the natural frequency

Tutorial Problem Draw the free-body diagram and derive the equation of motion in terms of 0 using Newton's seco...

Tutorial Problem Draw the free-body diagram and derive the equation of motion in terms of 0 using Newton's second law of motion of the systems shown in Figure below. Derive the equation of motion using the principle of conservation of energy Pulley, mas moment of inertia at) Tutorial Problem Draw the free-body diagram and derive the equation of motion in terms of 0 using Newton's second law of motion of the systems shown in Figure below. Derive the equation of...
Using the energy method, try to derive the equation of motion for system shown in the...

Using the energy method, try to derive the equation of motion for system shown in the Figure.
Using the law of conservation of energy derive the equation of motion for system shown in...

Using the law of conservation of energy derive the equation of motion for system shown in the Figure. 060

Problem 6: For the two systems shown below, separately, identify the degrees of freedom and then ...

Problem 6: For the two systems shown below, separately, identify the degrees of freedom and then write the equations of motion, respectively. Also, for each system, determine the natural frequency and damping ratio. The two systems shown are set into motion via initial condition. For the first figure of problem 6 (the circular disc), the disc is performing fixed axis rotation about its center of mass, G. It has a radius of gyration kG about the axis through the center...
Write the differential equation of motion for the system shown in the figure, and find the...

Write the differential equation of motion for the system shown in the figure, and find the damped natural frequency and damping ratio of this system.
012) Write the equation of motion if the system is undamped as shown above and derive the displacement response of the...

012) Write the equation of motion if the system is undamped as shown above and derive the displacement response of the system if P(t) is given as in Figure 2. (4 Points) P(t) Po 2t Figure 2: P(t) force as a function of time 012) Write the equation of motion if the system is undamped as shown above and derive the displacement response of the system if P(t) is given as in Figure 2. (4 Points) P(t) Po 2t Figure...

Q1. For the system shown in Figure 1 where the beam with mass m and length...

Q1. For the system shown in Figure 1 where the beam with mass m and length L is connected to the fixed surfaces through three springs with same stiffness k, (i) Calculate the total kinetic energy and total potential energy of the system; (ii) Derive the equation of motion in terms of rotation angle 0; (iii) Find the natural frequency of the system; (iv) Calculate the natural period if the stiffness k of all springs is doubled; (v) If the...
