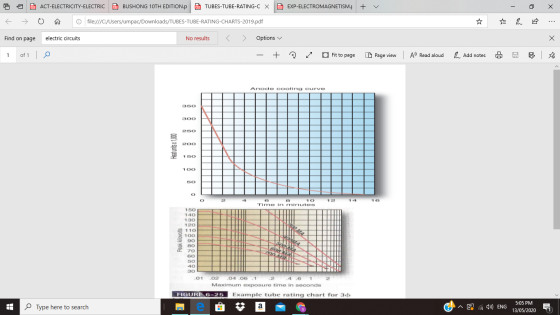

Tube Rating Chart
1. What is the safe mA set up to be used for a 100 kVp at 0.02s, 100 at 0.4s exposure time? 2. How many HU (Heat Units were lost from 275 000 HU after 5 mins? 3. Compute for the HU of 300 mA, 100 ms, at 100 kV using a single phase power, three phase ,6 pulse power, three phase, 12 pulse power, and high frequency power generator (Put your name and answers at the back. Show your solutions.) 4. A test on a single phase , half wave rectified unit was made using .03 sec and the dots seen were 9. Compute for the total dashes. Is the exposure timer accurate?
Homework Answers
Request Answer!
We need at least 9 more requests to produce the answer.
1 / 10 have requested this problem solution
The more requests, the faster the answer.
