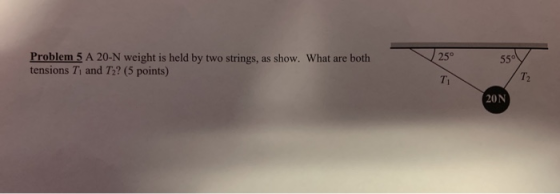

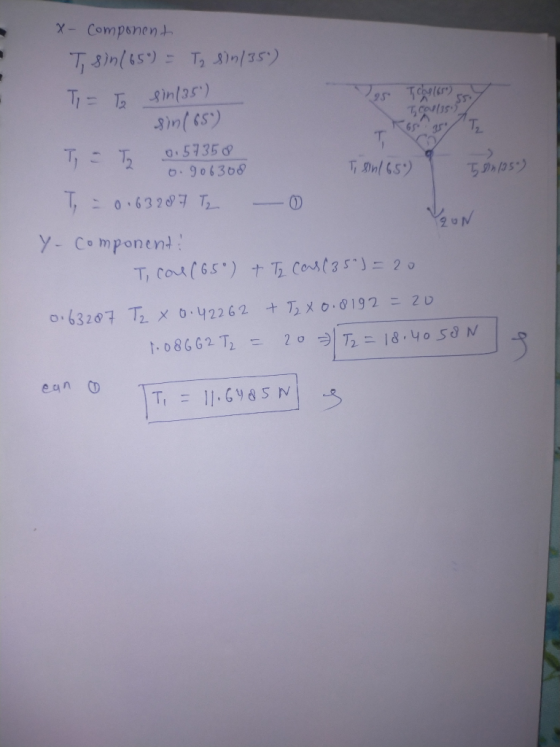

Problem 5 A 20-N weight is held by two strings, as show. What are both tensions...
QUESTION 2 Two ropes, with tensions T1- 5 N and T2 - 2.5 N, pull on...
QUESTION 2 Two ropes, with tensions T1- 5 N and T2 - 2.5 N, pull on a pulley as shown in the figure T1 T. 2 The pulley is a uniformly dense cylinder with a radius of 5 cm and a mass of 2 kg. The pulley rotates around a frictionless axle that passes through its center. The pulley is initially at rest, but after the tensions are applied begins to rotate. What is the net work (in J) done...
