Question

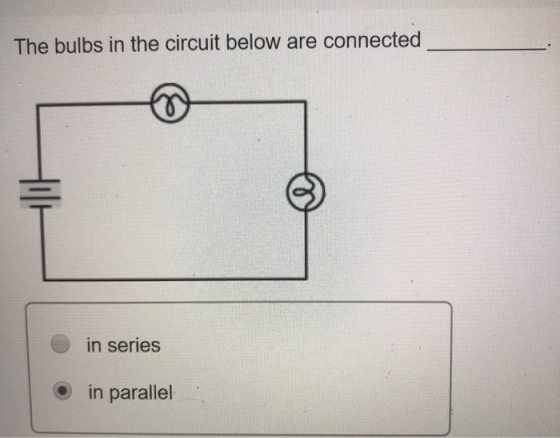

The bulbs in the circuit below are connected in series in parallel
science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

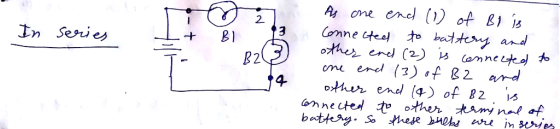

In series As one end (D) of BD is Connected to battery and other end (2) is connected to one end (3) of B2 and other end (a)

0 0
Add a comment
