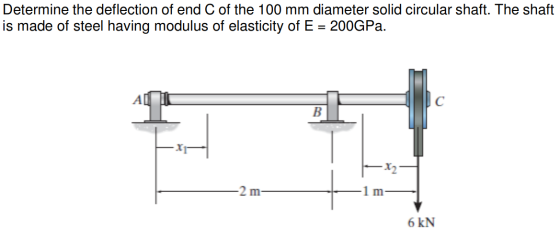

Determine the deflection of end C of the 100 mm diameter solid circular shaft. The shaft is made of steel having modulus of elasticity of E = 200GPa.
Homework Answers
Add Answer to:
Determine the deflection of end C of the 100 mm diameter solid circular shaft. The shaft is made of steel having modulus of elasticity of E = 200GPa.
Determine elastic curve of the solid circular shaft. The shaft is made of steel having E-200 Gpa. It has a diameter of 100 mm.
A bar of 20 mm diameter is made of a material having a modulus of elasticity...
A bar of 20 mm diameter is made of a material having a modulus of elasticity of E = 82 GPa and a modulus of rigidity of G = 68 GPa. If it is loaded axially with a compressive force of 100 kN, determine the absolute change in its diameter.
A bar of 20 mm diameter is made of a material having a modulus of elasticity...
A bar of 20 mm diameter is made of a material having a modulus of elasticity of E = 84 GPa and a modulus of rigidity of G = 66 GPa. If it is loaded axially with a compressive force of 90 kN, determine the absolute change in its diameter.
The shaft is made of steel with shear modulus of 100 GPa. Its diameter is 100...
The shaft is made of steel with shear modulus of 100 GPa. Its
diameter is 100 mm. It is fixed at B while A is loose and can
rotate 0.005 rad before becoming fixed. When the torques are
applied to C and D, determine the maximum shear stress in regions
AC and CD of the shaft
" Please draw and write everything clearly. I preferred
to be typed "
The shaft is made of steel with shear modulus of 100...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 230 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? O= Value Units
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity...
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity is 44.7 GPa and the thermal coefficient of expansion is 26 x 106/°C. The cylinder is placed in a clamp when the temperature is 20℃ Two stainless steel carriage bolts (2) hold the cylinder snug with negligible force against the rigid jaws of the clamp. Each bolt has a diameter of 10 mm, modulus of elasticity of 193 GPa, and a coefficient of thermal...
A hollow circular steel shaft has a 100-mm outside diameter and a 75-mm inside diameter. Calculate...
A hollow circular steel shaft has a 100-mm outside diameter and a 75-mm inside diameter. Calculate the allowable torque that can be transmitted if the allowable shear stress is 62 MPa. When the allowable torque is applied, calculate the shear stress at the inner surface of the shaft.
A bar of 20 mm diameter is made of a material having a modulus of elasticity of E = 82 GPa and a modulus of rigidity of G = 68 GPa. If it is loaded axially with a compressive force of 100 kN, determine the absolute change in its diameter.
The shaft is made of steel with shear modulus of 100 GPa. Its
diameter is 100 mm. It is fixed at B while A is loose and can
rotate 0.005 rad before becoming fixed. When the torques are
applied to C and D, determine the maximum shear stress in regions
AC and CD of the shaft
" Please draw and write everything clearly. I preferred
to be typed "
The shaft is made of steel with shear modulus of 100...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 230 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? O= Value Units
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity is 44.7 GPa and the thermal coefficient of expansion is 26 x 106/°C. The cylinder is placed in a clamp when the temperature is 20℃ Two stainless steel carriage bolts (2) hold the cylinder snug with negligible force against the rigid jaws of the clamp. Each bolt has a diameter of 10 mm, modulus of elasticity of 193 GPa, and a coefficient of thermal...
