A bar of 20 mm diameter is made of a material having a modulus of elasticity...

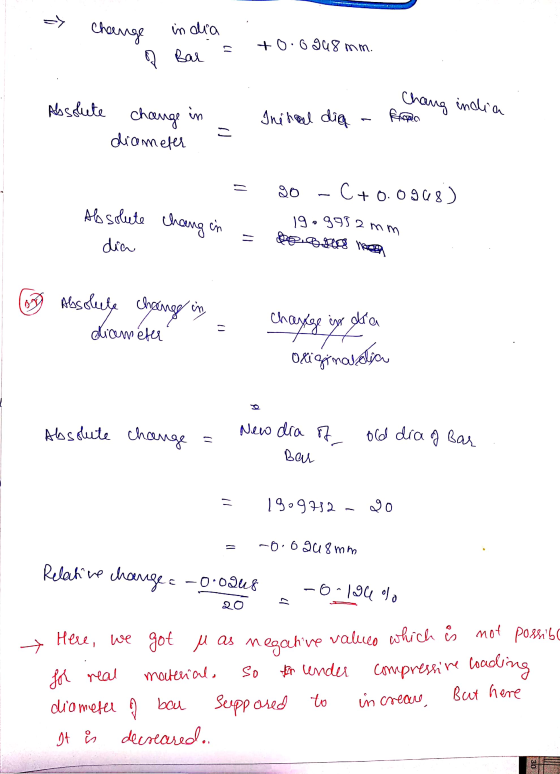

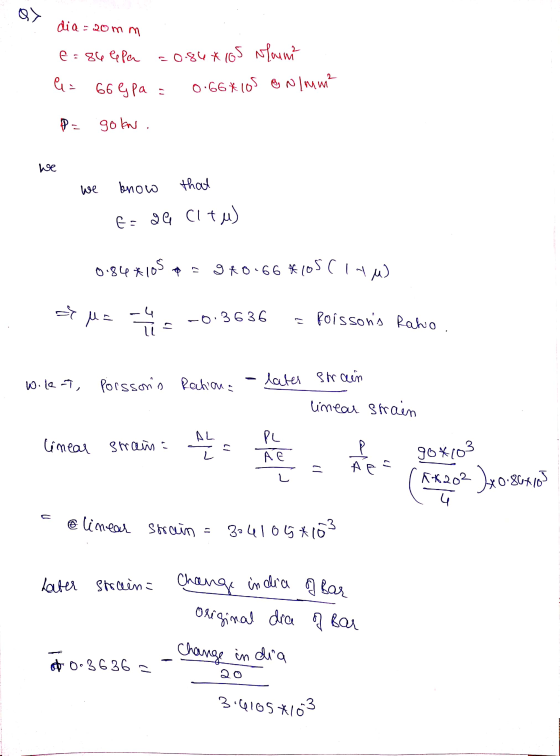

A bar of 20 mm diameter is made of a material having a modulus of elasticity of E = 84 GPa and a modulus of rigidity of G = 66 GPa. If it is loaded axially with a compressive force of 90 kN, determine the absolute change in its diameter.
Homework Answers
Add Answer to:
A bar of 20 mm diameter is made of a material having a
modulus of elasticity...
A bar of 20 mm diameter is made of a material having a modulus of elasticity...
A bar of 20 mm diameter is made of a material having a modulus of elasticity of E = 82 GPa and a modulus of rigidity of G = 68 GPa. If it is loaded axially with a compressive force of 100 kN, determine the absolute change in its diameter.
3 نقطة (نقاط) السؤال 1 A bar of 20 mm diameter is made of a material...
3 نقطة (نقاط) السؤال 1 A bar of 20 mm diameter is made of a material having a modulus of elasticity of E= 89 GPa and a modulus of rigidity of G = 61 GPa. If it is loaded axially with a compressive force of 65 kN, determine the absolute .change in its diameter التالي
Task 3-A brass tie bar of length 500 mm and diameter 20 mm undergoes a change...
Task 3-A brass tie bar of length 500 mm and diameter 20 mm undergoes a change in temperature from 25°C to 135° C. The linear expansivity of copper is 19 10"C" and its modulus of elasticity is 84 Gpa. i) Determine the change of length that takes place. ii) Determine the compressive force induced in the bar if it is rigidly held and expansion is prevented
A bar of metal (length L =200 mm, diameter d=10 mm) is loaded axially by a...
A bar of metal (length L =200 mm, diameter d=10 mm) is loaded axially by a tensile force P = 12 kN. If the bar elongates by 0.3 mm, what is the decrease in diameter d? What is the value of modulus of elasticity? Consider, v=0.30.
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity...
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity is 44.7 GPa and the thermal coefficient of expansion is 26 x 106/°C. The cylinder is placed in a clamp when the temperature is 20℃ Two stainless steel carriage bolts (2) hold the cylinder snug with negligible force against the rigid jaws of the clamp. Each bolt has a diameter of 10 mm, modulus of elasticity of 193 GPa, and a coefficient of thermal...
100 KN 150 mm 450 mm ΑΙ B G С The three cylinder rods made of...
100 KN 150 mm 450 mm ΑΙ B G С The three cylinder rods made of A-36 steel and have equal cross-sectional areas support a vertical load of 100kN as shown. The bar ABC is fully rigid. Determine: a) The force at A, B and C. b) The diameter of the rods consider safety factor of 1.5, rounded to the nearest even number. c) The displacement of point A, B, C. A 36 steel, Modulus of elasticity E = 200...
Question: The composite bar ABC is made of same material having E- 100 GPa. When the...
Question: The composite bar ABC is made of same material having E- 100 GPa. When the load was applied, the diameter for segment AB decreased by 0.025mm, calculate the final diameter of segment BC 20 mm 15 mm 100 kN 100 kN B 200 mm C A 350 mm
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m...
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length increases to 2.01 m. What is the Poisson's Ratio of this material? 2. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length...
A tensile test is performed on a linear elastic material using a cylindrical bar of diameter...
A tensile test is performed on a linear elastic material using a cylindrical bar of diameter 5 mm and gauge length 55 mm. An axial tensile force of 960 N is applied to the test specimen and a corresponding extension of 0.56 mm is recorded by the extensometer. Assuming that the Poisson's ratio is 0.3, calculate the modulus of rigidity (also known as the shear modulus), G, for this material. Enter your value in units of GPa to one decimal...
A cylindrical bar of metal having a diameter of 16.5 mm and a length of 183...
A cylindrical bar of metal having a diameter of 16.5 mm and a length of 183 mm is deformed elastically in tension with a force of 42000 N. Given that the elastic modulus and Poisson's ratio of the metal are 67.1 GPa and 0.34, respectively, determine the following:(a) The amount by which this specimen will elongate (in mm) in the direction of the applied stress. (b) The change in diameter of the specimen (in mm). Indicate an increase in diameter...
A bar of 20 mm diameter is made of a material having a modulus of elasticity of E = 82 GPa and a modulus of rigidity of G = 68 GPa. If it is loaded axially with a compressive force of 100 kN, determine the absolute change in its diameter.
3 نقطة (نقاط) السؤال 1 A bar of 20 mm diameter is made of a material having a modulus of elasticity of E= 89 GPa and a modulus of rigidity of G = 61 GPa. If it is loaded axially with a compressive force of 65 kN, determine the absolute .change in its diameter التالي
Task 3-A brass tie bar of length 500 mm and diameter 20 mm undergoes a change in temperature from 25°C to 135° C. The linear expansivity of copper is 19 10"C" and its modulus of elasticity is 84 Gpa. i) Determine the change of length that takes place. ii) Determine the compressive force induced in the bar if it is rigidly held and expansion is prevented
A bar of metal (length L =200 mm, diameter d=10 mm) is loaded axially by a tensile force P = 12 kN. If the bar elongates by 0.3 mm, what is the decrease in diameter d? What is the value of modulus of elasticity? Consider, v=0.30.
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity is 44.7 GPa and the thermal coefficient of expansion is 26 x 106/°C. The cylinder is placed in a clamp when the temperature is 20℃ Two stainless steel carriage bolts (2) hold the cylinder snug with negligible force against the rigid jaws of the clamp. Each bolt has a diameter of 10 mm, modulus of elasticity of 193 GPa, and a coefficient of thermal...
100 KN 150 mm 450 mm ΑΙ B G С The three cylinder rods made of A-36 steel and have equal cross-sectional areas support a vertical load of 100kN as shown. The bar ABC is fully rigid. Determine: a) The force at A, B and C. b) The diameter of the rods consider safety factor of 1.5, rounded to the nearest even number. c) The displacement of point A, B, C. A 36 steel, Modulus of elasticity E = 200...
Question: The composite bar ABC is made of same material having E- 100 GPa. When the load was applied, the diameter for segment AB decreased by 0.025mm, calculate the final diameter of segment BC 20 mm 15 mm 100 kN 100 kN B 200 mm C A 350 mm
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length increases to 2.01 m. What is the Poisson's Ratio of this material? 2. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length...
