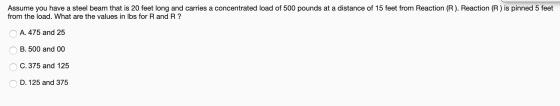

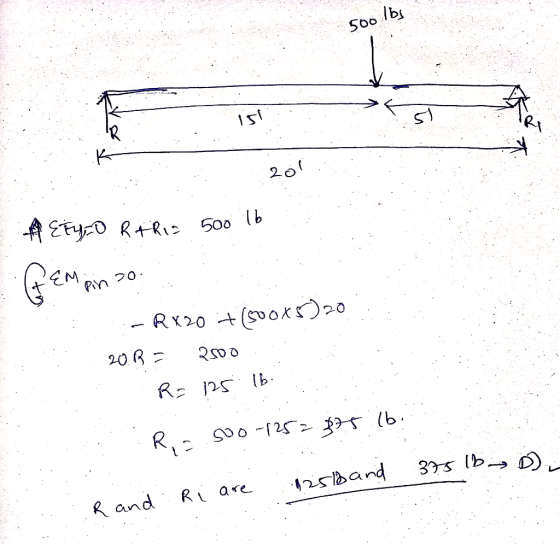

Assume you have a steel beam that is 20 feet long and carries a concentrated load...
1. A 20 ft beam carries a distributed load + concentrated loads as shown in the...
1. A 20 ft beam carries a distributed load + concentrated loads as shown in the figure below. -12 ft 400 lbs 300 lbs 500 lbs/ft 3 ft- - 20 ft Provide the following: a) Find the reaction forces on the beam. b) Discuss why your answer in a) is practical and makes intuitive sense. c) Find the shear and moment in the beam 14 ft from the left support.
A steel I-beam with a span of 20 feet will support both a concentrated load of...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting th...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain...
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The deflection at A is most nearly.... 0 0.01 in O 0.86 in 05.47 in 0.15 in
Question 19 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all...
Question 19 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip А B - 3 ft 3 ft The deflection at A is most nearly.... 0.15 in 5.47 in 0.86 in 0.01 in
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain...
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at A is most nearly.... 0.17 deg O N/A - there is no slope at A 1.03 deg 6.51 deg
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain...
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at B is most nearly.... 1.03 deg N/A - there is no slope at B 0.17 deg 6.51 deg
Part A: A simply supported beam has a span of 15 feet, and carries a load...
Part A: A simply supported beam has a span of 15 feet, and carries a load of 4 K/ft. What is the magnitude of the left support vertical Reaction? Part B: A simply supported beam as a length of 44 feet, and carries a maximum load of 17 k/ft and a minimum of 0 k/ft, as a triangular distributed load. What is the magnitude of the largest reaction?
Question 18 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all...
Question 18 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at A is most nearly.... 6.51 deg O N/A - there is no slope at A O 0.17 deg 1.03 deg
Question 17 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all...
Question 17 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B - 3 ft 3 ft - The slope at B is most nearly.... O N/A - there is no slope at B 1.03 deg 0.17 deg 6.51 deg
1. A 20 ft beam carries a distributed load + concentrated loads as shown in the figure below. -12 ft 400 lbs 300 lbs 500 lbs/ft 3 ft- - 20 ft Provide the following: a) Find the reaction forces on the beam. b) Discuss why your answer in a) is practical and makes intuitive sense. c) Find the shear and moment in the beam 14 ft from the left support.
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The deflection at A is most nearly.... 0 0.01 in O 0.86 in 05.47 in 0.15 in
Question 19 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip А B - 3 ft 3 ft The deflection at A is most nearly.... 0.15 in 5.47 in 0.86 in 0.01 in
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at A is most nearly.... 0.17 deg O N/A - there is no slope at A 1.03 deg 6.51 deg
A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at B is most nearly.... 1.03 deg N/A - there is no slope at B 0.17 deg 6.51 deg
Question 18 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B 3 ft 3 ft The slope at A is most nearly.... 6.51 deg O N/A - there is no slope at A O 0.17 deg 1.03 deg
Question 17 A6 ft long A36 steel W12x14 carries a concentrated load as shown. Assume all stresses remain linear elastic. 3 kip A B - 3 ft 3 ft - The slope at B is most nearly.... O N/A - there is no slope at B 1.03 deg 0.17 deg 6.51 deg
