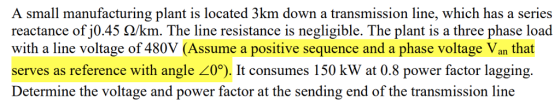

A small manufacturing plant is located 3km down a transmission line, which has a series reactance...
A three-phase transmission line is 200 km long. lt has a total series impedance of 25+j110)Ω...
A three-phase transmission line is 200 km long. lt has a total series impedance of 25+j110)Ω Per Phase and a total shunt admittance ofj5x 10 Ω. It delivers 180 MW at 275 kV and 0.8 power factor lagging to a load connected at the receiving end. Using the medium π model of the line, determine the voltage, current, real power, reactive power and power factor at the sending end of the line.
A thee-phase short transmission line is supplying a load of 250 MW at 0.8 power factor lagging. The voltage at the receiving end is kept constant at 230 kV. The resistance and reactance per phase of the line are 5 2 and 15 Ω respectively. (i) Calculate th
A thee-phase short transmission line is supplying a load of 250 MW at 0.8 power factor lagging. The voltage at the receiving end is kept constant at 230 kV. The resistance and reactance per phase of the line are 5Ω and 15 Ω respectively. (i) Calculate the voltage regulation. (ii) At what value of the power factor is the voltage regulation zero? Derive the expression used
A 3-phase 60 Hz 50 km transmission line delivers 20 MW of power to a load...
A 3-phase 60 Hz 50 km transmission line delivers 20 MW of power to a load at 69 kV and a power factor of 0.8 lagging. The line has the following parameters r = 0.1112/km L = 1.11 mH/km C = negligible Determine: The line impedance. (4 Marks) The "receiving end" phase voltage and current (7 Marks) The "sending end" voltage and current (10 Marks) The voltage regulation. (4 Marks)
The per-phase impedance of a short transmission line is (0.3+j0.4) Ω. The sending end line-to-line voltage is 3300V, and the load at the receiving end is 300 kiloWatts per phase at 0.8 power factor la...
The per-phase impedance of a short transmission line is (0.3+j0.4) Ω. The sending end line-to-line voltage is 3300V, and the load at the receiving end is 300 kiloWatts per phase at 0.8 power factor lagging. Calculate: (a) The receiving end voltage (b) The line current (c) The sending end power factor (d) The power loss.
A 230-kV, three-phase transmission line has a per phase series impedance of z = 0.05j0.45 2...
A 230-kV, three-phase transmission line has a per phase series impedance of z = 0.05j0.45 2 per km and a per phase shunt admittance ofy = j3.4 x 10-6 siemens per km. The line is 80 km long. Using the nominal r model, determine (a) The transmission line ABCD constants. Find the sending end voltage and current, voltage regulation, the sending end power and the transmission efficiency when the line delivers (b) 200 MVA, 0.8 lagging power factor at 220...
A 230kV three phase transmission line has a per phase series impedance of z=0.05+j0.45ohms per km...
A 230kV three phase transmission line has a per phase series impedance of z=0.05+j0.45ohms per km and a per phase shunt admittance of y= j3.4x10^-6 siemens per km. The line is 80km long. Using the medium line pi model: (a) Determine the transmission line model constants A, B, C, and D (b) Find the sending end (generating) voltage, current and power when the line delivers to a load of 1. 200 MVA with 0.8 lagging power factor at 220 kV...
QUESTIONS 1- A 69-kV, three-phase transmission line is 20 km long. The line has a per...
QUESTIONS 1- A 69-kV, three-phase transmission line is 20 km long. The line has a per phase series impedance of 0,120 + 10,4325 per km. Detemine the sending end voltage, voltage regulation, the sending end power, and the transmission efficiency when the line delivers (a) 60 MVA, 0.8 lagging power factor at 60 kV. (b) 110 MW, unity power factor at 60 kV
A 3-phase, 50 Hz overhead transmission line has the following constants
A 3-phase, 50 Hz overhead transmission line has the following constants : Resistance/phase = 9·6 Ω Inductance/phase = 0·097 mH Capacitance/phase = 0·765 μF If the line is supplying a balanced load of 24,000 kVA 0·8 p.f. lagging at 66 kV, calculate : (i) sending end current (ii) line value of sending end voltage (iii) sending end power factor (iv) percentage regulation (v) transmission efficiency
A 3-ph, 50 Hz overhead transmission line 100 km long delivers 20 MW at 0.9 p.f...
A 3-ph, 50 Hz overhead transmission line 100 km long delivers 20 MW at 0.9 p.f lagging and at 110 kV. The resistance and reactance per phase per km are (0.2) Ω and (j0.4) Ω respectively, while capacitive admittance per phase per km is (j2.5 * 10-6) siemen. Using nominal T circuit, Find: 1- Constants A, B, C, and D. 2- Sending end voltage. 3- Sending end current 4- Sending end power factor 5- Voltage regulation of this T.L. 6-...
A 345 kV, three phase transmission line is 130 km long. The series impedance is z...
A 345 kV, three phase transmission line is 130 km long. The series impedance is z = 0.036 + j0.3 Ω per phase/km and the shunt admittance is y = j4.22 x 10-6 S per phase/km. The sending end voltage is 345 kV and the sending end current is 400 A at 0.95 power factor lagging. Find the voltage, current and power at the receiving end and the voltage regulation.
A three-phase transmission line is 200 km long. lt has a total series impedance of 25+j110)Ω Per Phase and a total shunt admittance ofj5x 10 Ω. It delivers 180 MW at 275 kV and 0.8 power factor lagging to a load connected at the receiving end. Using the medium π model of the line, determine the voltage, current, real power, reactive power and power factor at the sending end of the line.
A 3-phase 60 Hz 50 km transmission line delivers 20 MW of power to a load at 69 kV and a power factor of 0.8 lagging. The line has the following parameters r = 0.1112/km L = 1.11 mH/km C = negligible Determine: The line impedance. (4 Marks) The "receiving end" phase voltage and current (7 Marks) The "sending end" voltage and current (10 Marks) The voltage regulation. (4 Marks)
A 230-kV, three-phase transmission line has a per phase series impedance of z = 0.05j0.45 2 per km and a per phase shunt admittance ofy = j3.4 x 10-6 siemens per km. The line is 80 km long. Using the nominal r model, determine (a) The transmission line ABCD constants. Find the sending end voltage and current, voltage regulation, the sending end power and the transmission efficiency when the line delivers (b) 200 MVA, 0.8 lagging power factor at 220...
QUESTIONS 1- A 69-kV, three-phase transmission line is 20 km long. The line has a per phase series impedance of 0,120 + 10,4325 per km. Detemine the sending end voltage, voltage regulation, the sending end power, and the transmission efficiency when the line delivers (a) 60 MVA, 0.8 lagging power factor at 60 kV. (b) 110 MW, unity power factor at 60 kV
