4-4. Reduce the block diagram shown in Fig.4P-4 to unity feedback form and find the Y/X...

Question

Question

4-4. Reduce the block diagram shown in Fig.4P-4 to unity feedback form and find the Y/X H3 I. G2 H2 Hi Figure 4P-4

engineering Electrical-Engineering

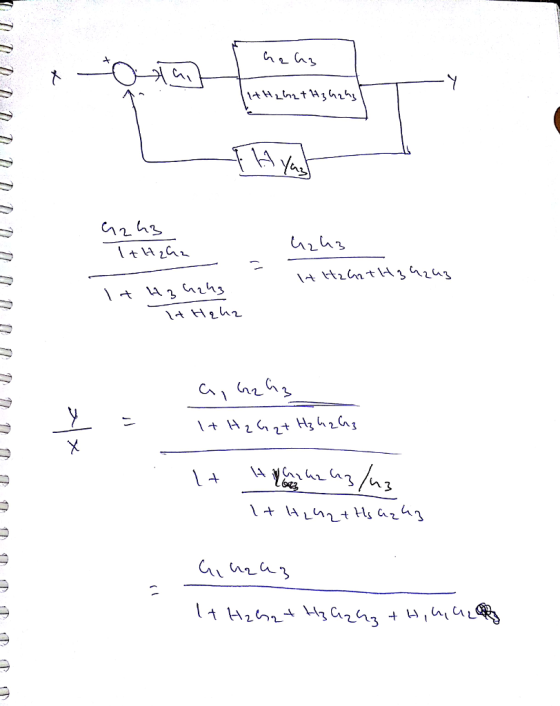

Answer 1

Answer #1

MS H、ト H1

Answer 2

Similar Homework Help Questions

(1) For Figure 1, reduce the block diagram to the transfer function level. (2) For Figure...

(1) For Figure 1, reduce the block diagram to the transfer function level. (2) For Figure 2, also reduce the block diagram to the transfer function level. (3) For Figure 3, again reduce the block diagram to the transfer function level. (4) For Figure 4, reduce the block diagram to the unity feedback loop level. Frgura 3 Ris) Hs Frere y Fes S8-12 K3 Kur (1) For Figure 1, reduce the block diagram to the transfer function level. (2) For...
Reduce the block diagram shown to a single block T(s)= C(s)/R(s). TICCll.. A ram shown in...

Reduce the block diagram shown to a single block T(s)= C(s)/R(s). TICCll.. A ram shown in Figure P5.3 to a single block, T/s) = C(s)/R(s). [Section: 5.2] G8 C(s) R(S) + G6 G3 ure P5.4 to an equivalent unity-feedback system.
Use Mason's rule to find the transfer function of the signal-flow diagram shown in Figure below....

Use Mason's rule to find the transfer function of the signal-flow diagram shown in Figure below. Knowing that: G1=7 G2=1/s G3=2 G4=1/s G5=-5 G6=1/s G7=-4 G8=5 G9=2 G10=9 G11=6 G12=3 H1=-4 H2=-2 H3=2 H4=-3 H5=-6 H6=1 G9 G10 G8 G11 R(s) G: G2 G3 G4 G5 G6 Y(s) 5 HI H2 H3 Ha Hs G12 HG

System Transfer function/block diagrams questions Q1) how to convert non-unity feedback to unity feedback? Q2) What...

System Transfer function/block diagrams questions Q1) how to convert non-unity feedback to unity feedback? Q2) What are the steps for block diagram simplification ? For example, a system with a lot of controllers, summers, branchoff points, how should I simplify to a standard feedback loop to find transfer function? Q3) Explain Mason's transfer function formula
