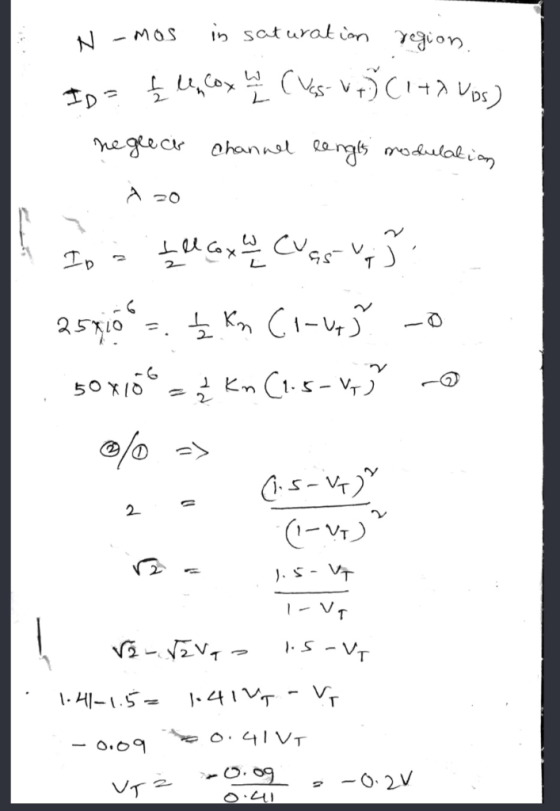

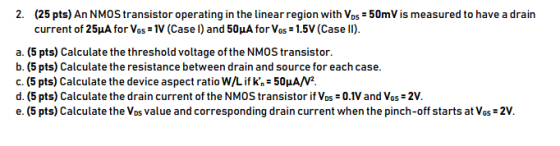

2. (25 pts) An NMOS transistor operating in the linearregion with VDs 50mV is measured to...
nMOS transistor is biased width Vds = 2 V and Vgs = 1.1 V. Assume k = 2 mA and VT = 0.5 V. Calculate the drain current in mA.
a)Calculate Ronof an NMOS FET transistor for VGS=2Vand5V if VTN= 1.5V, Kn= 300μA/V2.b)What value of VGSisrequired for Ron= 2kW?c)Find the drain current(Id)and transconductance (gm) of an NMOS FET transistor operating with VGS=3.0V, VTN= 1.0V, VDS= 3.0V, Kn= 1.0mA/V2.
Consider an NMOS transistor with the gate connected to a voltage source, its source connected to ground, bulk also connected to ground and the drain connected a variable voltage source. The NMOS transistor properties are k’ = 0.2mA/V2, ?= 0.025 V-1, W= 16?? and L = 1?? , Vto= 0.8V and gate oxide thickness of tox = 100Å. Assuming the transistor in saturation region and ignoring any Early effects, calculate the gate current, the gate source voltage and the gate...
5. An NMOS transistor having V, = 1V is operated in the linear region with vps small. With Vos=1.5V, it is found to have a resistance rns of Ik2. What value of Vas is required to obtain rps = 2002? Find the corresponding resistance values obtained with a device having twice the value of W.
You will be given the IBM 0.13um PMOS and NMOS model files. 1) From the model files, find out K' for both NMOS and PMOS. 2) For W/L=10um/0.13um, plot the drain current of an NMOS as a function of Vps when Vos varies from 0 to 1.5V, assuming Vos= 0.3V.0.6V, 0.9V, 1.2V, and 1.5V, and Ves=0. 3) Estimate of this transistor (Assume De=0.3 V). 4) Repeat 2) but with Vse=0.3V. 5) Estimate y (body effect) of this transistor. 6) Calculate...
Q5. Below figure is a LONG-channel NMOS device biased with two voltage source (Ves and Vos). Assuming this NMOS has a threshold voltage V, of 0.5V, mobility 350cm-NV m, oxide thickness of 10nm, and relative permittivity of 3.9. Calculate the drain current Ing with below bias configurations: (0) Ves = 2V, Vos = 1V, W/L = 4; (ii) Vas = 1V, Vos = 3V, W/L = 2;
1.) A cmos inverter can be constructed by using one enhancement type nmos and one enhancement type pmos is connected by____ placing them in series with the pmos above placing them in series with the nmos above placing then in parallel with the pmos on the left placing then in parallel with the nmos on the left 2) A PMOS with the source connected to a 10V and drain connected to ground, can be turned on by applying a gate-to-drain...
2. An NMOS transistor fabricated in a technology for which uC=400 ĻA/V2 and V=0.4V is required to operate with a small Vps as a variable resistor ranging in value from 0.2 k 2 to 1k12. (a) The Vos voltage is 1.8V and corresponding resistor is 0.2k12. Calculate W/L of MOSFET? (10 pts) (b) With same MOSFET, what is the Vgs to achieve a resistor of lk32? (10 points)
2. An NMOS transistor fabricated in a technology for which uC=400 ĻA/V2 and V=0.4V is required to operate with a small Vps as a variable resistor ranging in value from 0.2 k 2 to 1k12. (a) The Vos voltage is 1.8V and corresponding resistor is 0.2k12. Calculate W/L of MOSFET? (10 pts) (b) With same MOSFET, what is the Vgs to achieve a resistor of lk32? (10 points)
Question 2: a) Find the value of Vgs? b) If the threshold voltage of the NMOS 0.7V, identify the region of operation for the MOSFET (i.e. Triode Saturation or Cutoff) v,= 10V SATE e) Write the formula to calculate Current (ID) for the circuit in Figure 1 Fig. 1 Question 3: a) Find the value of Vgs* b) If the threshold voltage of the NMOS 0.7V, identify the region of operation for the MOSFET (i.e. Triode, Saturation or Cutoff) c)...
