Homework Answers
Add Answer to:

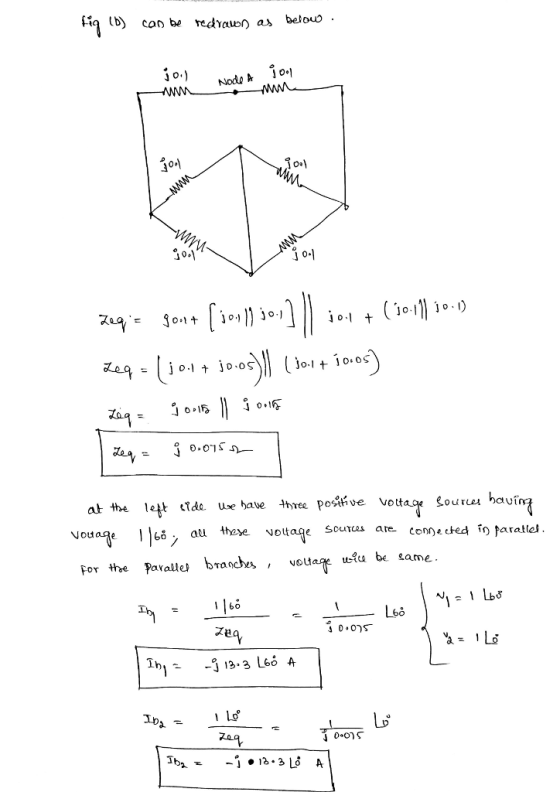

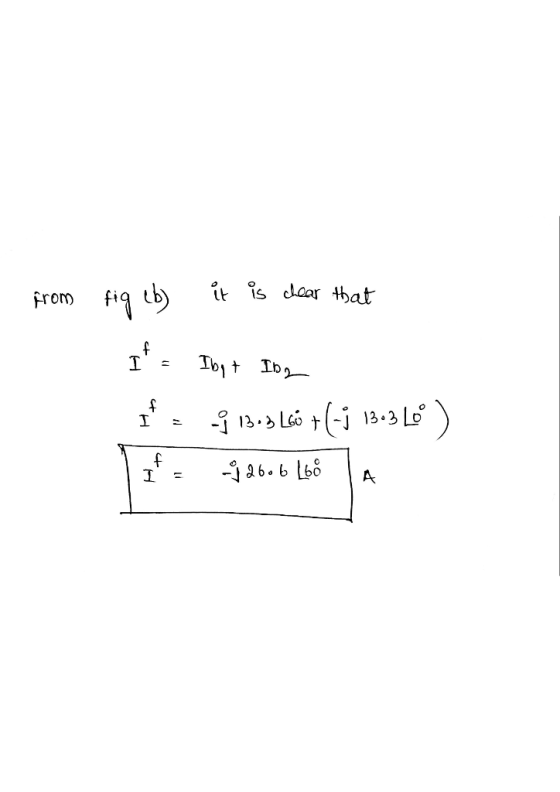

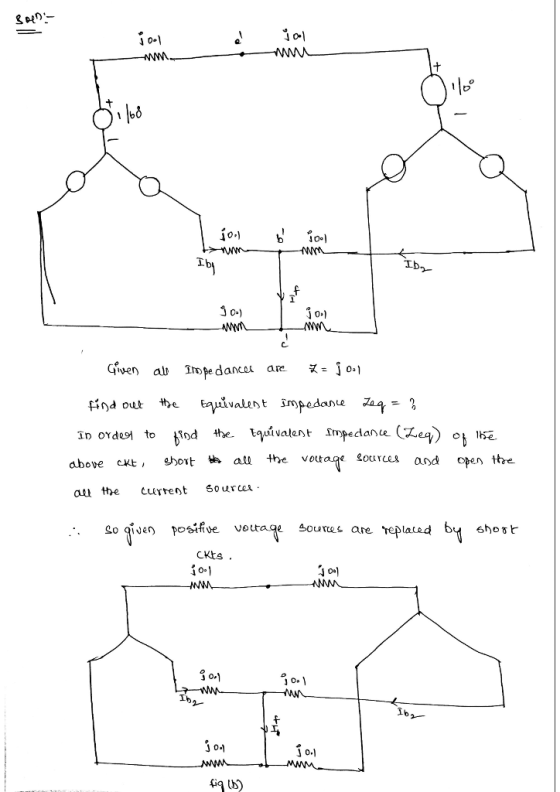

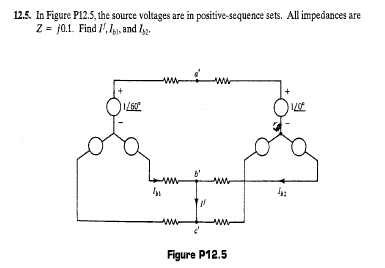

12.5. In Figure P12.5, the source voltages are in positive-sequence sets. All impedances are z-jal. Find...
Busl Bus2 Bus3 Figure 1: One line diagram All impedances are specified in per unit. For...
Busl Bus2 Bus3 Figure 1: One line diagram All impedances are specified in per unit. For generators, assume Z'- Zj0.2,Z- j0.05 For transformers, assume Z -Z -Zo - j0.05 For lines assume Z+= Z'=j0.1,20-jo.3 Assume unloaded pre-fault condition with voltages 1.0 pu at all the three buses. A fault occurs at bus 1. Ignore phase shift and perform the following computations: A. Draw the sequence network diagrams (positive, negative and zero) and find the Thevenin equivalent for each sequence network...
In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with...
In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van = 120 000 Vrms. The per phase impedance of the load is 5 +J60. If the line impedance per phase is 0 0, find the line currents, the line to line voltages at the source, and the line to line voltages at the load. 1. Van 120 0" Vrms ZY = 5+j Va VA neutral
a. The value of the voltage source and all the load impedances of AC circuit in...
a. The value of the voltage source and all the load impedances of AC circuit in Figure Q2(a) are given as list below; 21 Z3 V. Z2 ZA Figure Q2(a) Calculate the real and reactive power absorbed by load impedances and (C01: P01 - 8 marks) ii. Determine the power factor at the load impedance, (C01: P01 - 2 marks) a. The value of the voltage source and all the load impedances of AC circuit in Figure Q2(a) are given...
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 0.5-H inductance in series with a 50-Ω resistance. Assume that the phase of Van is zero. home / study / engineering / electrical engineering / electrical engineering questions and answers / A Balanced Positive-sequence Wye-connected 60-Hz Three-phase Source Has Line-to-line Voltages ... Question: A balanced positive-sequence wye-connected...
Explain Please. A balanced, positive-sequence, wye-connected source has V- 220/0 V rms and supplies an unbalanced...
Explain Please.
A balanced, positive-sequence, wye-connected source has V- 220/0 V rms and supplies an unbalanced wye-connected load ZAN-7 10 Ω, ZBN-8 +j6 Ω, and ZCN 10-j12 Ω via transmission lines with impedances ZA-2 +jl Ω, ZB-2-j0.5 Ω, and ZC-2 +j | Ω (a) Label all node voltages and loop currents (b) Determine the currents IaA? IbB, and 1cC. (c) Determine the voltages VAN, N, and VCN (d) Determine the voltages VAR, VRc, and VCA (e) (i) Determine the total...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltag...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van- 120 20 Vrms. The per phase impedance of the load is 5 +j62. If the line impedance per phase is 0 Ω, find the line currents, the line to line voltages at the source, and the line to line voltages at the load 120 20 Vms 2. In a three-phase balanced wye-wye system, the source is an abc-sequence set of voltages with...
A balanced Ý-source with positive phase sequence (V,-200 ej4% yms) is connected to a balanced Y-load...
A balanced Ý-source with positive phase sequence (V,-200 ej4% yms) is connected to a balanced Y-load with Za (25 +j5)2. 45° 3. Sketch the circuit, labeling all values. Find the three line currents and line voltages a. b.
Three impedances, Z_1 = 6 20 degree Ohm, Z_2 = 8 40 degree Ohm, and Z_3 = 10 0 degree Ohm, are connected in wye and are supplied by a 480-V, three-phase source. Find the line currents. Draw phasor diagrams showing all voltages and currents.
Three impedances, Z_1 = 6 20 degree Ohm, Z_2 = 8 40 degree Ohm, and Z_3 = 10 0 degree Ohm, are connected in wye and are supplied by a 480-V, three-phase source. Find the line currents. Draw phasor diagrams showing all voltages and currents.
Power system operation and control
The positive-sequence reactances for the power system shown in Figure 10.31 are in per unit on a common MVA base. Resistances are neglected and the negative-sequence impedances are assumed to be the same as the positive-sequence impedances. A bolted line-to-line fault occurs between phases b and c at bus 2.Before the fault occurrence, all bus voltages are 1.0 per unit. Obtain the positive-sequence bus impedance matrix.Find the fault current, the three-phase bus voltages during fault, and the line currents in...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
Busl Bus2 Bus3 Figure 1: One line diagram All impedances are specified in per unit. For generators, assume Z'- Zj0.2,Z- j0.05 For transformers, assume Z -Z -Zo - j0.05 For lines assume Z+= Z'=j0.1,20-jo.3 Assume unloaded pre-fault condition with voltages 1.0 pu at all the three buses. A fault occurs at bus 1. Ignore phase shift and perform the following computations: A. Draw the sequence network diagrams (positive, negative and zero) and find the Thevenin equivalent for each sequence network...
In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van = 120 000 Vrms. The per phase impedance of the load is 5 +J60. If the line impedance per phase is 0 0, find the line currents, the line to line voltages at the source, and the line to line voltages at the load. 1. Van 120 0" Vrms ZY = 5+j Va VA neutral
a. The value of the voltage source and all the load impedances of AC circuit in Figure Q2(a) are given as list below; 21 Z3 V. Z2 ZA Figure Q2(a) Calculate the real and reactive power absorbed by load impedances and (C01: P01 - 8 marks) ii. Determine the power factor at the load impedance, (C01: P01 - 2 marks) a. The value of the voltage source and all the load impedances of AC circuit in Figure Q2(a) are given...
Explain Please.
A balanced, positive-sequence, wye-connected source has V- 220/0 V rms and supplies an unbalanced wye-connected load ZAN-7 10 Ω, ZBN-8 +j6 Ω, and ZCN 10-j12 Ω via transmission lines with impedances ZA-2 +jl Ω, ZB-2-j0.5 Ω, and ZC-2 +j | Ω (a) Label all node voltages and loop currents (b) Determine the currents IaA? IbB, and 1cC. (c) Determine the voltages VAN, N, and VCN (d) Determine the voltages VAR, VRc, and VCA (e) (i) Determine the total...
1. In a three-phase balanced wye-wye system, the source is an abc-positive sequence set of voltages with Van- 120 20 Vrms. The per phase impedance of the load is 5 +j62. If the line impedance per phase is 0 Ω, find the line currents, the line to line voltages at the source, and the line to line voltages at the load 120 20 Vms 2. In a three-phase balanced wye-wye system, the source is an abc-sequence set of voltages with...
A balanced Ý-source with positive phase sequence (V,-200 ej4% yms) is connected to a balanced Y-load with Za (25 +j5)2. 45° 3. Sketch the circuit, labeling all values. Find the three line currents and line voltages a. b.
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
