The first order irreversible reaction A -> B is carried out in a CSTR. The rate...
|
The first order irreversible reaction A -> B is carried out in a CSTR. The rate constant is 0.05 s^-1 and the volumetric flowrate is 0.02 m^3 s^-1. What volume of reactor is required in order to achieve a conversion of 80%? Hint:(Conversation of Ca to molar flowrate/volumetric flowrate) |
|||||

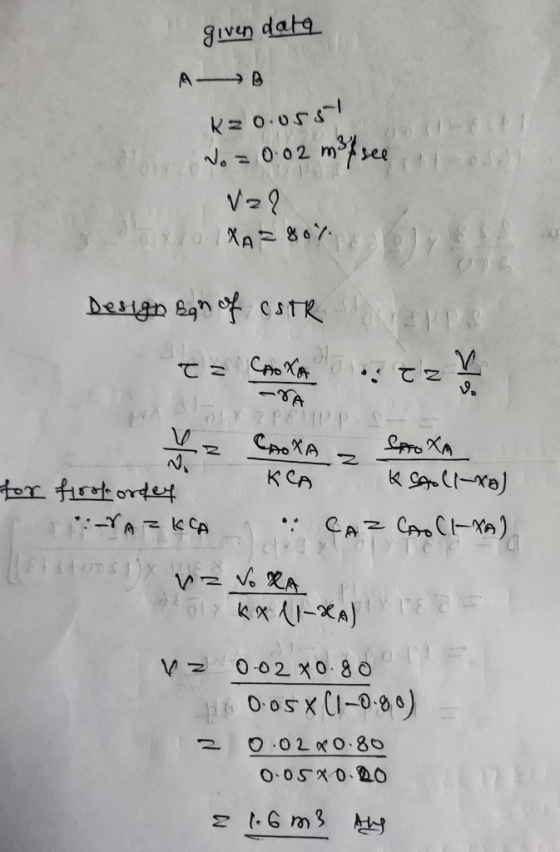

Homework Answers
