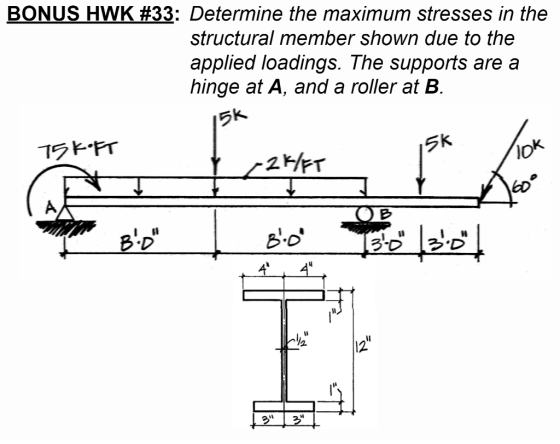

BONUS HWK #33: Determine the maximum stresses in the structural member shown due to the applied...
ENSC 2113: Bonus Homework SKETCHES AND CALCULATIONS MUST BE SHOWN SUPPORTING THE CORRECT ANSWER TO RECEIVE...

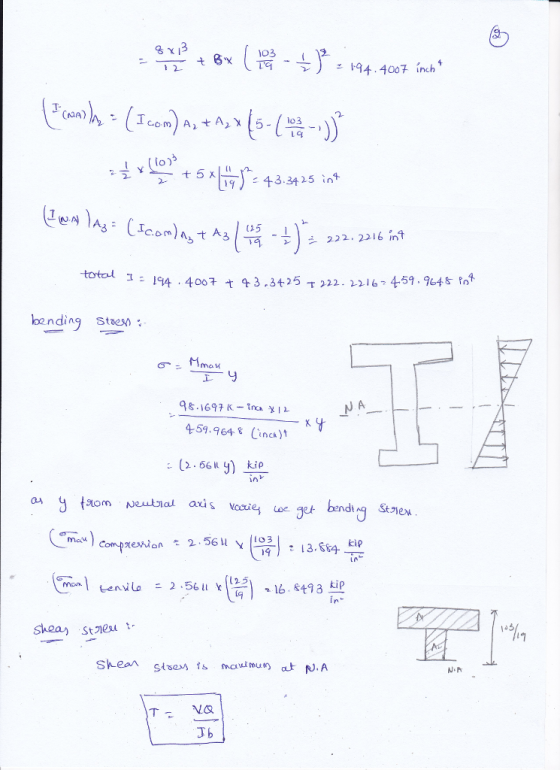

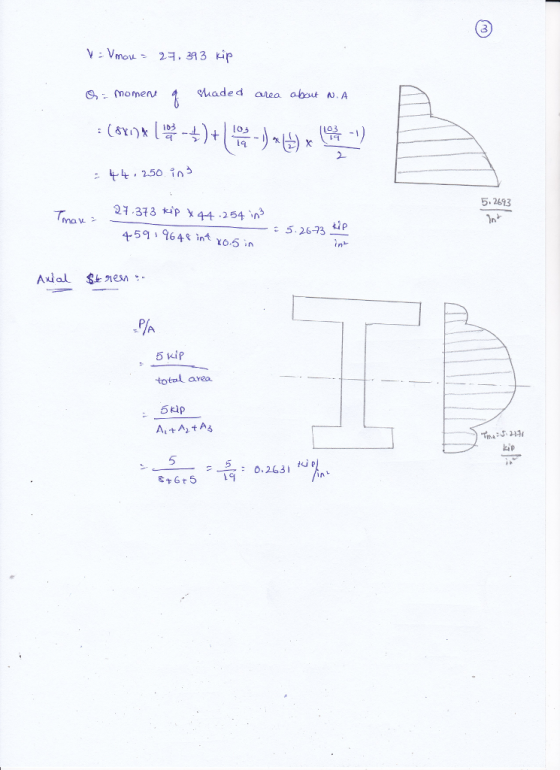

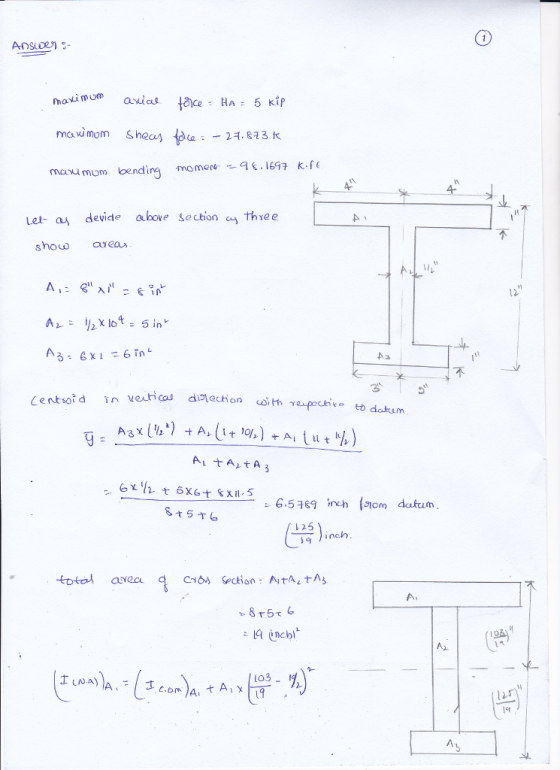

ENSC 2113: Bonus Homework SKETCHES AND CALCULATIONS MUST BE SHOWN SUPPORTING THE CORRECT ANSWER TO RECEIVE CREDIT. ASSIGNMENT IS WORTH A POSSIBLE 40 POINTS. Determine the maximum average shear stress, the maximum compressive and tensile bending stresses, and the maximum axial stress in the member shown due to the applied loadings. The supports are a hinge at A, and a roller at B. 5k 75KFT 15k - 2K/FT TOK 12" OB B!:D" 2 2 LOADED STRUCTURAL MEMBER SECTION
(a) Determine the maximum compressive and tensile normal stresses in the A-36 structural steel beam shown...
(a) Determine the maximum compressive and tensile normal
stresses in the A-36 structural steel beam shown and define their
locations (location along the beam and on the cross section). (b)
Determine the deflection of point B using the double
integration method. The height of the cross section shown (in the
y-direction) is 5 inches and width (in the
z-direction) is 10 inches, and the average thickness
throughout is 0.5 inches. (Use elastic properties for all
calculations)
ANSWER: (a) max tensile...
1- For the beam shown below find: a) The maximum normal stresses due to bending b)...
1- For the beam shown below find: a) The maximum normal stresses due to bending b) The maximum shearing stress c) The maximum combined normal stress d) The stresses at C e) The shearing stress at D f The stresses at F The beam is made from homogenous, isotropic, linear elastic material Please present a very neat work. 20 kips 48 ft.kip 32 kips 2k/ft 4 B F 4' 8' 4' 16" 3" 4" D 12" C 6" F 3"...
Consider a point in a structural member that is subjected to plane stress. Normal and shear...
Consider a point in a structural member that is subjected to plane stress. Normal and shear stresse acting on horizontal and vertical planes at the point 8.4 MPa are shown in the figure 44.8 MPa a) Draw Mohr's circle for this state of stress b) Determine the principal stresses and the maximum in- plane shear stress acting at the point. Show these stresses in an appropriate sketch. c) 60.5 MPa
Determine the Maximum load P that can be applied to the beam shown below if the...
Determine the Maximum load P that can be applied to the beam
shown below if the allowable bending fiber stress are 15,000
pounds
3. Determine the maximum load P that can be applied to the beam shown below if ending fiber stresses are 15,000 pounds per square inch in tension 25,000 pounds per square inch in compression. Note: Dimensions are in the allowable b and inches for the cross-section of the beam, and in feet for the length of the...
For the state of stress shown: a) Determine the in-plane principal stresses and the maximum in-plane...
For the state of stress shown:
a) Determine the in-plane principal stresses and the maximum
in-plane shear stress.
b) Show these stresses on a properly oriented element.
c) Determine the maximum shear stress d) How do these (a, b, c)
change if z = -20 MPa (20 MPa in compression)?
With detialed explination please! Much appreciated
90 MPa 20 MPa 60 MPa
For the beam shown below, determine the flexural stresses, shear stresses, principal stresses, and the angle...
For the beam shown below, determine the flexural stresses, shear
stresses, principal stresses,
and the angle to the principle stress plane at the locations
shown. Can you solve Location one and 4 first< then as many
other as you can please?
Locations 1 and 2 are at the top of the beam, while locations 5
and 6 are at the bottom.
Location 3 is at the beam mid-height, while location 4 is midway
between locations 3 and 5.
Assume that...
Problem 1 {12} Consider the test arrangement shown in the figure below. In this arrangement, a...
Problem 1 {12} Consider the test arrangement shown in the figure below. In this arrangement, a compressive load, P, is applied on a concrete cylinder that rests on plate and roller supports as shown in the figure. The plate and rollers can be assumed rigid with infinite strength. The rollers in turn apply four- point flexural load on a concrete beam underneath, which is simply supported on a hinge at the left end and a roller on the right end....
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports...
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports at B and C to act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Member BC is made of A992 steel with a modulus of elasticity of 29,000 ksi and a yield strength of 50 ksi. a) Calculate the maximum allowable load, P, on the system (in kips) considering buckling and...
For the shown below determine the member forces in and in under that there is a...
For the shown below determine the member forces in and in under that there is a big sen 3 05 N 544 1 ol R magnitude F For the truss shown determine the member forces in EF, EG, and FG (no, this is not an error) in pounds. (Ask yourself whether or - including answers submitted in WebAssign.) А 1,994 lb B 3,988 lb D 3,988 lb E 5@5ft = 25ft 2,991 lb ד| G H 1.994 lb 997 lb...
ENSC 2113: Bonus Homework SKETCHES AND CALCULATIONS MUST BE SHOWN SUPPORTING THE CORRECT ANSWER TO RECEIVE CREDIT. ASSIGNMENT IS WORTH A POSSIBLE 40 POINTS. Determine the maximum average shear stress, the maximum compressive and tensile bending stresses, and the maximum axial stress in the member shown due to the applied loadings. The supports are a hinge at A, and a roller at B. 5k 75KFT 15k - 2K/FT TOK 12" OB B!:D" 2 2 LOADED STRUCTURAL MEMBER SECTION
(a) Determine the maximum compressive and tensile normal
stresses in the A-36 structural steel beam shown and define their
locations (location along the beam and on the cross section). (b)
Determine the deflection of point B using the double
integration method. The height of the cross section shown (in the
y-direction) is 5 inches and width (in the
z-direction) is 10 inches, and the average thickness
throughout is 0.5 inches. (Use elastic properties for all
calculations)
ANSWER: (a) max tensile...
1- For the beam shown below find: a) The maximum normal stresses due to bending b) The maximum shearing stress c) The maximum combined normal stress d) The stresses at C e) The shearing stress at D f The stresses at F The beam is made from homogenous, isotropic, linear elastic material Please present a very neat work. 20 kips 48 ft.kip 32 kips 2k/ft 4 B F 4' 8' 4' 16" 3" 4" D 12" C 6" F 3"...
Consider a point in a structural member that is subjected to plane stress. Normal and shear stresse acting on horizontal and vertical planes at the point 8.4 MPa are shown in the figure 44.8 MPa a) Draw Mohr's circle for this state of stress b) Determine the principal stresses and the maximum in- plane shear stress acting at the point. Show these stresses in an appropriate sketch. c) 60.5 MPa
Determine the Maximum load P that can be applied to the beam
shown below if the allowable bending fiber stress are 15,000
pounds
3. Determine the maximum load P that can be applied to the beam shown below if ending fiber stresses are 15,000 pounds per square inch in tension 25,000 pounds per square inch in compression. Note: Dimensions are in the allowable b and inches for the cross-section of the beam, and in feet for the length of the...
For the state of stress shown:
a) Determine the in-plane principal stresses and the maximum
in-plane shear stress.
b) Show these stresses on a properly oriented element.
c) Determine the maximum shear stress d) How do these (a, b, c)
change if z = -20 MPa (20 MPa in compression)?
With detialed explination please! Much appreciated
90 MPa 20 MPa 60 MPa
For the beam shown below, determine the flexural stresses, shear
stresses, principal stresses,
and the angle to the principle stress plane at the locations
shown. Can you solve Location one and 4 first< then as many
other as you can please?
Locations 1 and 2 are at the top of the beam, while locations 5
and 6 are at the bottom.
Location 3 is at the beam mid-height, while location 4 is midway
between locations 3 and 5.
Assume that...
Problem 1 {12} Consider the test arrangement shown in the figure below. In this arrangement, a compressive load, P, is applied on a concrete cylinder that rests on plate and roller supports as shown in the figure. The plate and rollers can be assumed rigid with infinite strength. The rollers in turn apply four- point flexural load on a concrete beam underneath, which is simply supported on a hinge at the left end and a roller on the right end....
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports at B and C to act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Member BC is made of A992 steel with a modulus of elasticity of 29,000 ksi and a yield strength of 50 ksi. a) Calculate the maximum allowable load, P, on the system (in kips) considering buckling and...
For the shown below determine the member forces in and in under that there is a big sen 3 05 N 544 1 ol R magnitude F For the truss shown determine the member forces in EF, EG, and FG (no, this is not an error) in pounds. (Ask yourself whether or - including answers submitted in WebAssign.) А 1,994 lb B 3,988 lb D 3,988 lb E 5@5ft = 25ft 2,991 lb ד| G H 1.994 lb 997 lb...
