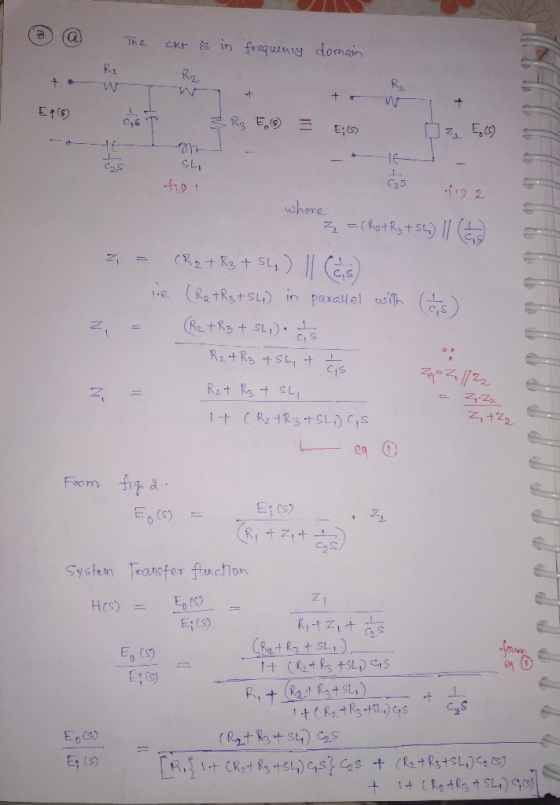

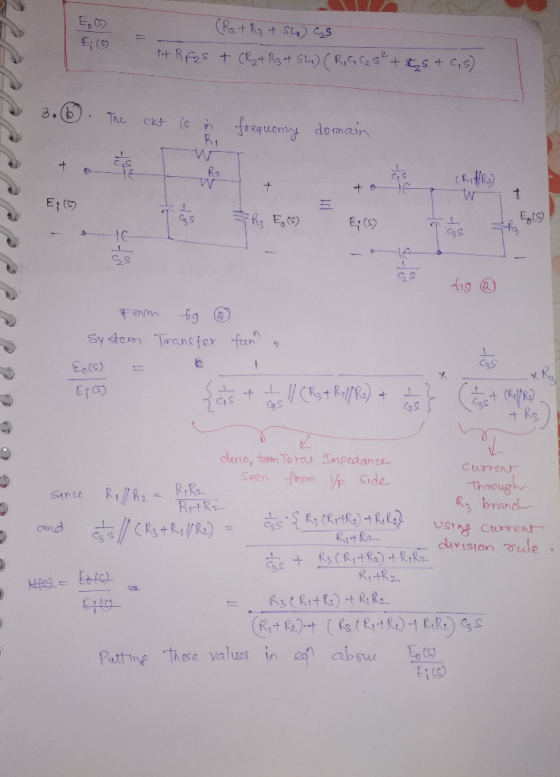

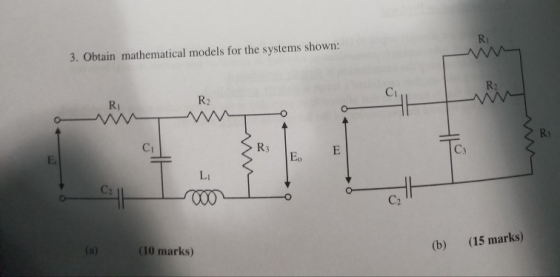

Ri 3. Obtain mathematical models for the systems shown: Ci Ri Ci R3 Ei Eo Li...
3. Obtain mathematical models for the systems shown: R2 Ri CI Eo LI C2 (10 marks)...
3. Obtain mathematical models for the systems shown: R2 Ri CI Eo LI C2 (10 marks) (b) (15 marks)
C. (30pts]Obtain the transfer function Eo(s)/Ei(s) of the system shown below.
C. (30pts]Obtain the transfer function Eo(s)/Ei(s) of the system shown below.
(5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical mode...
(5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical model of the system b) Draw Block diagram of the system, then, c) Obtain the transfer function of Eo(s)/E (s) Figure 3
(5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical model of the system b) Draw Block diagram of the system, then, c) Obtain the transfer function of Eo(s)/E (s) Figure 3
Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below: Ri e(r) Problem 1 Obtain a mathematical model (The two equations that...
Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below: Ri e(r) Problem 1
Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below:
Ri e(r) Problem 1
Problem # 1 (b): Obtain a mathematical model of the system shown below. Problem1: Consider the ...
Problem # 1 (b): Obtain a mathematical model of the system shown below. Problem1: Consider the system shown below which is at rest for t<0. Assume the displacement x is the output of the system and is measured from the equilibrium position. Att-0, the cart is given initial conditions x(0)- xo and dx(0ydt v Obtain the output motion x0)Assume that m-10 kg, b-50 N-s/m, b-70 N-sm, -400 N/m, k2- 600 N/m. da diagam c.rditinstoo)20 추dx(Hat20.5m/s inilia) Problem12i Referring to Problem...
Example 3.4 The reluctances of the three air gaps shown in Figure 3.14 are Ri =...
Example 3.4 The reluctances of the three air gaps shown in Figure 3.14 are Ri = 3 x 109, R2 = 2 x 100, and R3 = 2 x 100, all in At/Wb. a) Draw the magnetic equivalent circuit and write the loop equations. b) Compute the flux linkages X, and X, and find Li, L2, and M. M = 0 * N, = 100 Permeability of iron = U=00 N, = 100 u = 0 Figure 3.14: A coupled...
3. A frictionless and massless pulley with radius Ri and string of li is suspended as...
3. A frictionless and massless pulley with radius Ri and string of li is suspended as shown in Fig. 1. One end connects with a mass mi and the other with another frictionless pulley of mass m with radius R2 and string /2, joining two masses ms and ms at the two ends. (a) Find the equations of holonomic constraints. (b) Find the equations of motion for masses mi, m2, m3, and m4. (c) Find the solutions for the undetermined...
3-F) b. Vout = 0.99 Vin 3-E) For the following circuit, with Ri 18 k2, R2...
3-F) b. Vout = 0.99 Vin
3-E) For the following circuit, with Ri 18 k2, R2 15 k(2, R6 = 40 kQ, V,-10 V, and V,-7 V, find: 22 k2, R 30 k2, R4 20 kQ, Rs- a) the current through Ri, R3, & R6 b) the voltage across R2, R4, & Rs Rs V, 3-F) For the following circuit, what is Vout in terms of Vin for each case? a) R1-100 ?, R2-1 k(2, and R3 = 1.0 M(2...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the freq...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the frequency domain equation the voltage at node out? Preview In terms of Vo. R1. R2. R3. R4. Cl.t. and s what is the equation for t? Preview Ifthe voltage vi at tune-0 is 3 V RI"? kQ....
I have 30 mins pls help R1 ii iz www EI E2 R₃ Question 3 (20...
I have 30 mins pls help
R1 ii iz www EI E2 R₃ Question 3 (20 pts) In the figure on the right, the ideal batteries have emfs Ei= 10 V and E2 = Ez = 6 V and the resistors are identical with R = 5 ohm. (a)(10pts) Apply Kirchhoffs loop and junction rules and obtain three independent eqaations to solve three unknown currents ii, i2, and iz as shown in the figure and solve for the current i1....
3. Obtain mathematical models for the systems shown: R2 Ri CI Eo LI C2 (10 marks) (b) (15 marks)
C. (30pts]Obtain the transfer function Eo(s)/Ei(s) of the system shown below.
(5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical model of the system b) Draw Block diagram of the system, then, c) Obtain the transfer function of Eo(s)/E (s) Figure 3
(5 marks) For the followving electrical system shown in Figure 3. a) Derive the mathematical model of the system b) Draw Block diagram of the system, then, c) Obtain the transfer function of Eo(s)/E (s) Figure 3
Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below: Ri e(r) Problem 1
Obtain a mathematical model (The two equations that constitute of Kirchhoff's voltage law) of the circuit shown below:
Ri e(r) Problem 1
Problem # 1 (b): Obtain a mathematical model of the system shown below. Problem1: Consider the system shown below which is at rest for t<0. Assume the displacement x is the output of the system and is measured from the equilibrium position. Att-0, the cart is given initial conditions x(0)- xo and dx(0ydt v Obtain the output motion x0)Assume that m-10 kg, b-50 N-s/m, b-70 N-sm, -400 N/m, k2- 600 N/m. da diagam c.rditinstoo)20 추dx(Hat20.5m/s inilia) Problem12i Referring to Problem...
Example 3.4 The reluctances of the three air gaps shown in Figure 3.14 are Ri = 3 x 109, R2 = 2 x 100, and R3 = 2 x 100, all in At/Wb. a) Draw the magnetic equivalent circuit and write the loop equations. b) Compute the flux linkages X, and X, and find Li, L2, and M. M = 0 * N, = 100 Permeability of iron = U=00 N, = 100 u = 0 Figure 3.14: A coupled...
3. A frictionless and massless pulley with radius Ri and string of li is suspended as shown in Fig. 1. One end connects with a mass mi and the other with another frictionless pulley of mass m with radius R2 and string /2, joining two masses ms and ms at the two ends. (a) Find the equations of holonomic constraints. (b) Find the equations of motion for masses mi, m2, m3, and m4. (c) Find the solutions for the undetermined...
3-F) b. Vout = 0.99 Vin
3-E) For the following circuit, with Ri 18 k2, R2 15 k(2, R6 = 40 kQ, V,-10 V, and V,-7 V, find: 22 k2, R 30 k2, R4 20 kQ, Rs- a) the current through Ri, R3, & R6 b) the voltage across R2, R4, & Rs Rs V, 3-F) For the following circuit, what is Vout in terms of Vin for each case? a) R1-100 ?, R2-1 k(2, and R3 = 1.0 M(2...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the frequency domain equation the voltage at node out? Preview In terms of Vo. R1. R2. R3. R4. Cl.t. and s what is the equation for t? Preview Ifthe voltage vi at tune-0 is 3 V RI"? kQ....
I have 30 mins pls help
R1 ii iz www EI E2 R₃ Question 3 (20 pts) In the figure on the right, the ideal batteries have emfs Ei= 10 V and E2 = Ez = 6 V and the resistors are identical with R = 5 ohm. (a)(10pts) Apply Kirchhoffs loop and junction rules and obtain three independent eqaations to solve three unknown currents ii, i2, and iz as shown in the figure and solve for the current i1....
