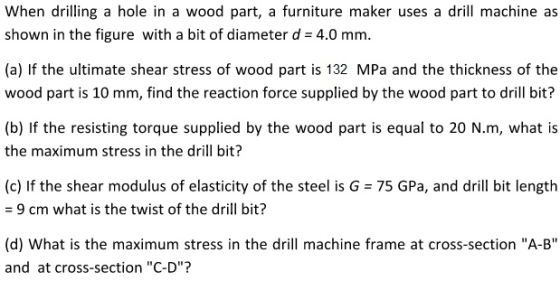

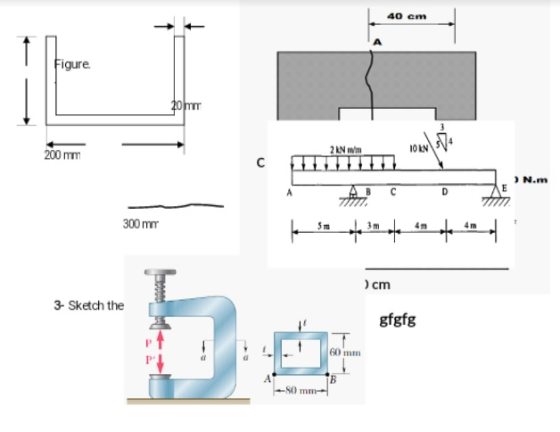

When drilling a hole in a wood part, a furniture maker uses a drill machine as...

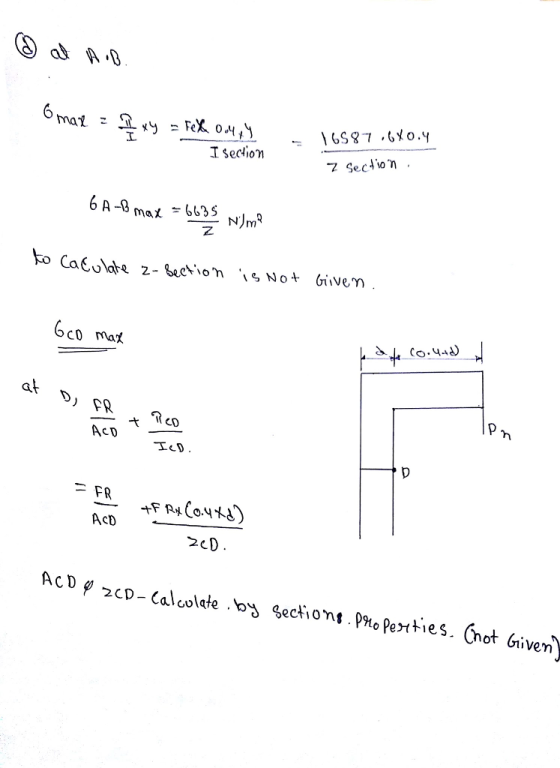

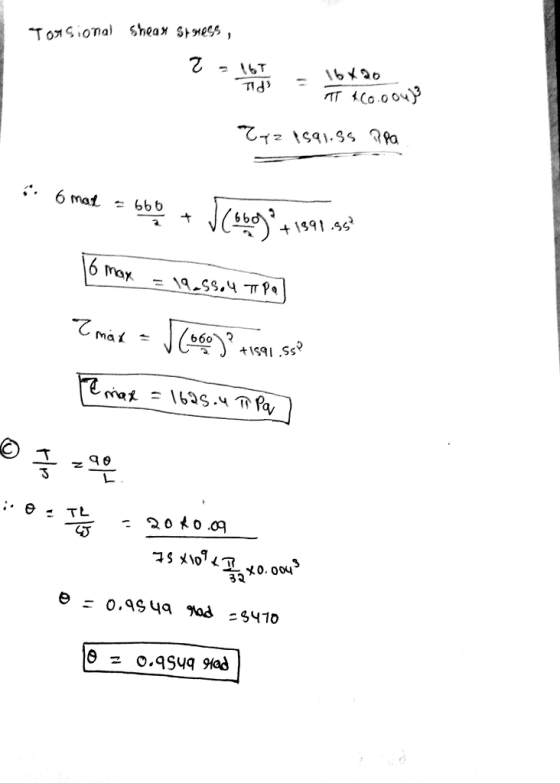

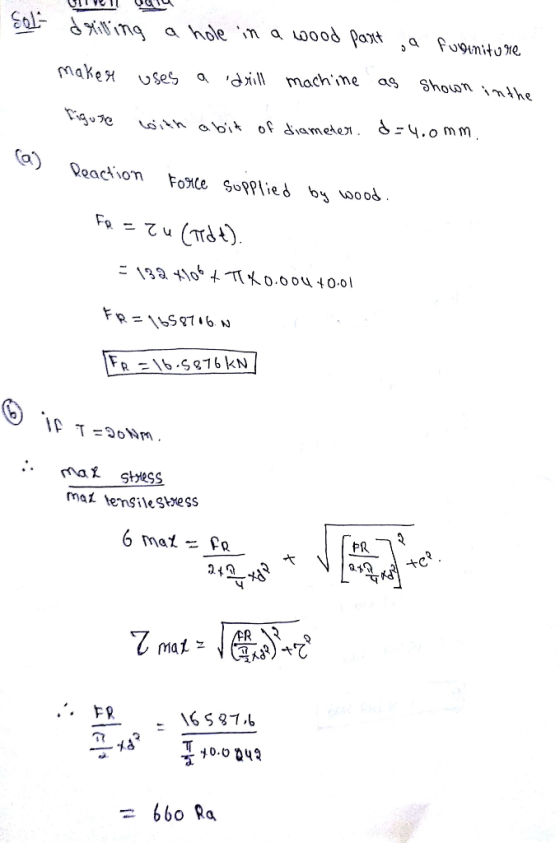

A Drill Problem. When drilling a 13.1 mm diameter hole in wood, plastic, or aluminum, a...
A Drill Problem. When drilling a 13.1 mm diameter hole in wood, plastic, or aluminum, a shop manual recommends a drill speed of 1150 rev/min. (a) For a 13.1 mm diameter drill bit turning at a constant 1150 rev/min, find the maximum linear speed of any part of the bit m/s (b) For a 13.1 mm diameter drill bit turning at a constant 1150 rev/min, find the maximum radial acceleration of any part of the bit. m/s2
According to the shop manual, when drilling a 11.8-mm-diameter hole in wood, plastic, or aluminum, a...
According to the shop manual, when drilling a 11.8-mm-diameter hole in wood, plastic, or aluminum, a drill should have a speed of 1300 rev/min . Part A For a 11.8-mm-diameter drill bit turning at a constant 1300 rev/min , find the maximum linear speed of any part of the bit. Part B Find the maximum radial acceleration of any part of the bit.
The JT100 horizontal directional drilling machine applies 220 hp and rotates drill pipe at 100 rp...
The JT100 horizontal directional drilling machine applies 220 hp and rotates drill pipe at 100 rpm. During the drilling process, a drill pipe is subjected to the following axial and bending loads 30.0 Axial load, P, of 100 kips 0.70 ft-kips bending load, M, in the y-z plane at 30 degrees from the vertical axis The drill pipe, which is made of AISI 4130 steel, has the following dimensions and material properties (Ref. MIL-HDBK-5J, Table 2.3.1.0(c1)) » Length, L 177-in...
A solid steel bar of circular cross section has diameter d = 40 mm, length L...
A solid steel bar of circular cross section has diameter d = 40 mm, length L = 1.3 m and shear modulus of elasticity G = 80 GPa. The bar is subjected to torques T acting at the ends. If the torques have magnitude T = 340 Nm, what is the maximum shear stress in the bar? What is the angle of twist between the ends? If the allowable shear stress is 42 MPa and the allowable angle of twist...
(3) If the shaft has equila shear stress of Tallow torque T that can be angle...
(3) If the shaft has equila shear stress of Tallow torque T that can be angle of twist of end B. an equilateral triangle cross section and is made from an alloy 75 MPa and a shear modulus of 60 GPa, that has an allowable letermine the maximum allowable um allowable torque, find the correspondin applied to end B. Using the maximum allowable torque, fin end 800 mmm 80 mm
this is a multi-parts question. I need all A, B, C, D. Only answer if you...
this is a multi-parts
question. I need all A, B, C, D. Only answer if you know them all.
Thx and Will ThumbUp!
Problem 3 (10 points) The stepped shaft made of a material having a shear modulus of elasticity G = 40 GPa is fixed at A and loaded by two torques T = 60 N.m and T2= 80 N.m as shown below. The shaft BC has solid circular cross-section with diameter of 50 mm and the shaft AB...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is weak along the orientation of the grain (or wood cell fibres) that makes an angle of 30° with the horizontal (see figure). The maximum shear stress on a plane parallel to the grain that the wood can sustain is t,max = 5 MPa, and the maximum normal stress of wood is omax = 25 MPa. The Young modulus of this wood is E=15 GPa....
3. (30 pts) A shaft is driven at A by a motor that transmits 5 kW...
3. (30 pts) A shaft is driven at A by a motor that transmits 5 kW to the shaft at 10 112. The gears Band C drive machinery require power equal to 3.5 KW and 1.5 kW respectively. The material of the shall has shear modulus G - 75 GPa Two cross-section contigurations are considered as shown all of them have about same cross-section areas) d-20 mm t=3 mm, a=17.5 mm a) What is the maximum torque on the shaft...
A wood beam (1) is reinforced on its lower surface by a steel plate (2) as...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
The JT100 horizontal directional drilling machine applies 220 hp and rotates drill pipe at 100 rpm. During the drilling process, a drill pipe is subjected to the following axial and bending loads 30.0 Axial load, P, of 100 kips 0.70 ft-kips bending load, M, in the y-z plane at 30 degrees from the vertical axis The drill pipe, which is made of AISI 4130 steel, has the following dimensions and material properties (Ref. MIL-HDBK-5J, Table 2.3.1.0(c1)) » Length, L 177-in...
(3) If the shaft has equila shear stress of Tallow torque T that can be angle of twist of end B. an equilateral triangle cross section and is made from an alloy 75 MPa and a shear modulus of 60 GPa, that has an allowable letermine the maximum allowable um allowable torque, find the correspondin applied to end B. Using the maximum allowable torque, fin end 800 mmm 80 mm
this is a multi-parts
question. I need all A, B, C, D. Only answer if you know them all.
Thx and Will ThumbUp!
Problem 3 (10 points) The stepped shaft made of a material having a shear modulus of elasticity G = 40 GPa is fixed at A and loaded by two torques T = 60 N.m and T2= 80 N.m as shown below. The shaft BC has solid circular cross-section with diameter of 50 mm and the shaft AB...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is weak along the orientation of the grain (or wood cell fibres) that makes an angle of 30° with the horizontal (see figure). The maximum shear stress on a plane parallel to the grain that the wood can sustain is t,max = 5 MPa, and the maximum normal stress of wood is omax = 25 MPa. The Young modulus of this wood is E=15 GPa....
3. (30 pts) A shaft is driven at A by a motor that transmits 5 kW to the shaft at 10 112. The gears Band C drive machinery require power equal to 3.5 KW and 1.5 kW respectively. The material of the shall has shear modulus G - 75 GPa Two cross-section contigurations are considered as shown all of them have about same cross-section areas) d-20 mm t=3 mm, a=17.5 mm a) What is the maximum torque on the shaft...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
