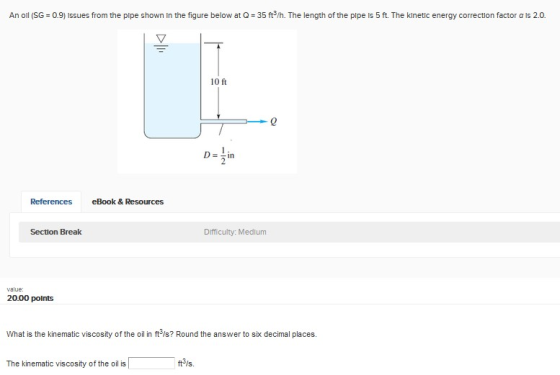

An oil (SG = 0.9) Issues from the pipe shown in the figure below at Q...
In a test of the centrifugal pump shown in the image below, the following data are taken - 100 mmHg vacuum and D-500 mmHg ingel The pipe diameters are 12 cm and D5 Theo 203 gamin of light oil (SG-091), (2) 65 cm IG (1) References eBook & Resources Section Break Difficulty Hard wa 10.00 points Estimate the head developed in meters. (Round the final answer to one decimal place. You must provide an answer before moving to the next...
Consider the square strut and the round strut shown. Use L 0.9 m and E: 200 GPa. 25 mm References eBook & Resources Section Break Problem 10.014-Critical Load of Round versus Square Rod Difficulty: Medium value 10.00 points Problem 10.014.a Critical Load of Round versus Square Rod Determine the critical load for the square strut. (Round the final answer to two decimal places.) The critical load for the square strut is 64.26 KN
Consider the liquid shown in figure to be kerosene at 20°C. Given h1 -5 ft and y 50.3 lbf/ft3 Air p 20 lbfin2 abs Pa 14.7 lbfin2 abs h1 D-1 in References eBook&Resources Section Break Difficulty: Medium value 10.00 points Determine the flow rate from the tank for no losses. Round the final answer to three decimal places ft3/s
Water at 20°C is to be siphoned through a tube 1 m long and 2 mm
in diameter as shown in the figure below. For water at 20°C, take
ρ = 998 kg/m3 and μ = 0.001 kg/m⋅s.
Take π = 22/7. The kinetic energy correction factor
α is 2.0. What is the flow rate if H = 41 cm? Round the
answer to four decimal places.
Water at 20°C is to be siphoned through a tube 1 m long...
Chapters Six & Seven Problems: 6.11 The venture meter shown in Figure 6.4 carries oil (sg-0.85). The specific gravity of the gage fluid in the manometer is 1.5. Calculate the volume flow rate of oil in m'/s. 7.1 The pump in Figure 7.1 provides head of 59.5 ft, and power of 13.5 hp to deliver water from the lower to the upper reservoir. Calculate; a. Volume flow rate in the suction and discharge pipe. b. Velocity of flow in suction...
A system is formed by cascading two systems as shown in the figure given below. Given that the impulse responses of the systems are, h1(0) = 22e-* u(1), h₂( = e ult) -40 hi(t) h2(t) Vo References eBook & Resources Section Break Difficulty: Medium Learning Objective: Un into the time domain. value: 10.00 points Determine the impulse response of the overall system. The impulse response of the overall system is h(t) = (Click to select) v (Click to select) v...
The water pump, as shown in the figure below, maintains a
pressure of 6.5 psig at point 1. There is a filter, a half-open
disk valve, and two regular screwed elbows. There are 80 ft of
4-inch diameter commercial steel pipe. For water, take ρ = 1.94
slug/ft3 and μ = 2.09E−5 slug/ft⋅s. Take kvalve ≈ 2.8, kelbow ≈
0.64, kexit ≈ 1, and kvalve ≈ 0 (when the disk valve wide open). If
the flow rate is 0.55 ft3/s,...
V.(5) V (5 Using the figure given below, realize the transfer function C2 S + 1000 2(5 + 4000) where G = 8 uF. C R2 Vi VO + w R References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Find the values of R1 and R2. 12. The value of R1 = The value of R2 = Ω.
The circuit shown below has the impedance Z(s) = 800(s +1) (s+ 1 +j50) (s +1 -j50) , S = - jo. R с L Z(s) References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Find the values of R, L, C, and G. The value of R in the circuit is 12. The value of L in the circuit is H. The value of C in the circuit is mF. The value of G in the circuit...
