We have installed cellular system with 100 sites , a frequency reuse factor of N =...

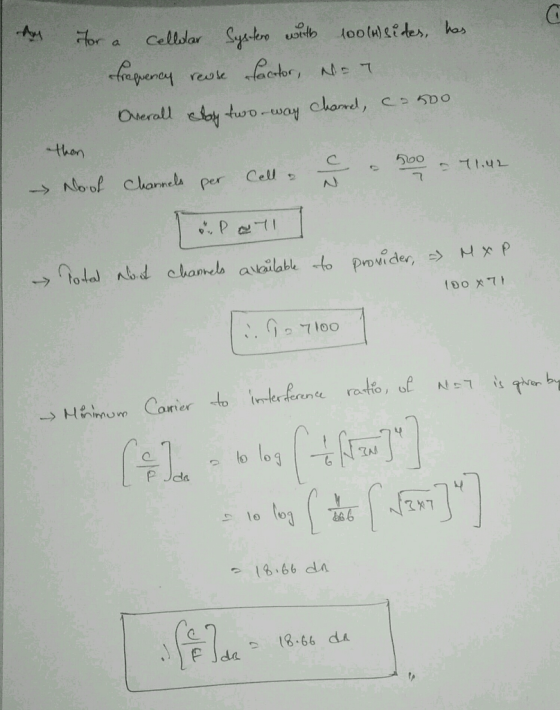

We have installed cellular system with 100 sites , a frequency reuse factor of N = 7 , and 500 overall two-way channels. Assume a path loss exponent of 4. Find the number channels per channel , total number of channels available to service provider and the minimum carrier to interference ratio (C/F) of the system in dB.
Homework Answers
