Question

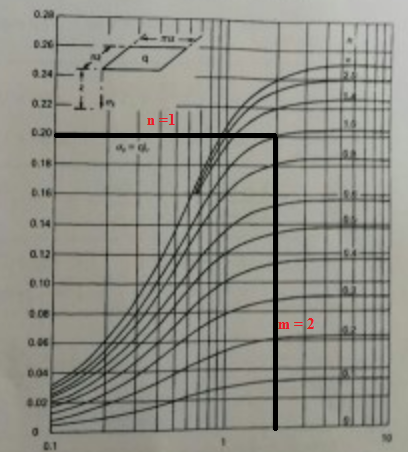

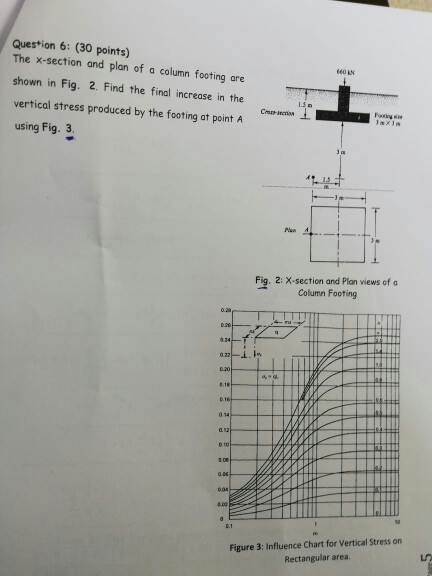

Question 6: (30 points) The x-section and plan of a column footing are shown in Fig. 2. Find the final increase in the vertical stress produced by the footing at point A using Fig. 3. 660 N 1s n Fig. 2: X-section and Plan views of a Column Footing 4-d, Figure 3: Influence Chart for Vertical Stress on Rectangular area.

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Question 6: (30 points) The x-section and plan of a column footing are shown in Fig....
