Homework Answers

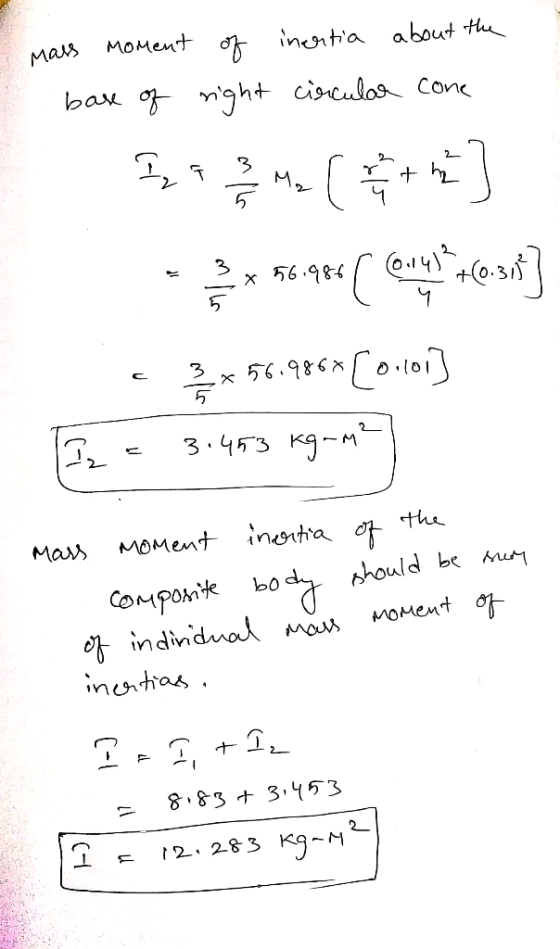

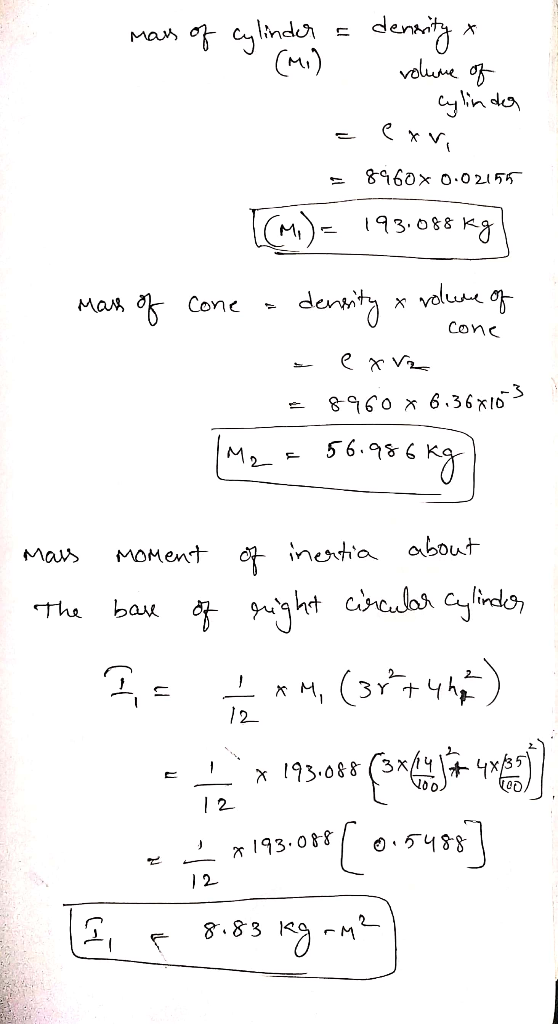

![mans of cylinder a density & 1 (MI) volume of 1 cylinder - exri = 8960x 0.02155 [M.) = 19.088 kg] mars of - cone cone a densi](http://img.homeworklib.com/questions/8043e940-240c-11eb-a632-b55d69a51018.png?x-oss-process=image/resize,w_560)
Add Answer to:

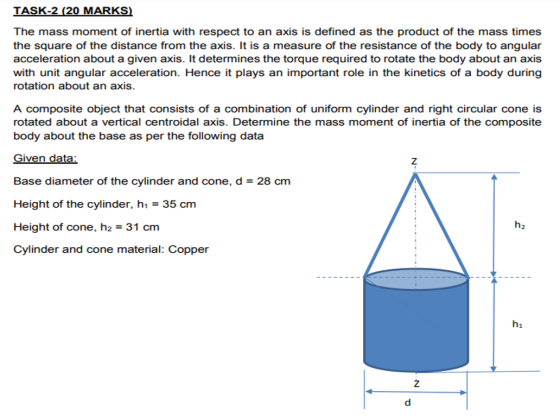

TASK-2 (20 MARKS) The mass moment of inertia with respect to an axis is defined as...
4. a) A solid truncated cone with smaller radius a and larger radius b, height h, and Determine the moment of inertia of the truncated cone in terms of a,b.p and central axis. 8 pts h when rotate...
4. a) A solid truncated cone with smaller radius a and larger radius b, height h, and Determine the moment of inertia of the truncated cone in terms of a,b.p and central axis. 8 pts h when rotated about its b) A bullet of with a mass-m,is fired into the cone with a speed v, in the z direction. The bullet a +b above the central axis of the cone and lodges in the cone at the enters the cone...
Calculate the moment of inertia of the following figure about the axis O. A is a...
Calculate the moment of inertia of the following figure about
the axis O. A is a uniform solid cylinder with mass M and radius R.
B is a uniform thin rod with mass M and length 3R. A and B objects
are attached together and rotate together about axis O. The
distance X is and Y is in the figure. The
light blue line is going through the center of the cylinder and the
point “CM” represents the center of mass of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 4.45 kg.m2 and an angular velocity of +4.87 rad/s. Disk B is rotating with an angular velocity of -7.28 rad/s. The two disks are then linked together without the orques, so that they rotate as a single unit with an angular velocity of -3.59 rad/s. The axis of rotation for this unit is the same as that for the separate disks. What is the...
The moment of inertia of the human body about an axis through its center of mass is important in the application of bio...
The moment of inertia of the human body about an axis through
its center of mass is important in the application of biomechanics
to sports such as diving and gymnastics. We can measure the body's
moment of inertia in a particular position while a person remains
in that position on a horizontal turntable, with the bodys center
of mass on the turntable's rotational axis. The turntable with the
person on it is then accelerated from rest by a torque that...
Two disks are rotating about the same axis. Disk A has a moment of inertia of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 9.20 kg·m2 and an angular velocity of +9.96 rad/s. Disk B is rotating with an angular velocity of -8.43 rad/s. The two disks are then linked together without the aid of any external torques, so that they rotate as a single unit with an angular velocity of -3.59 rad/s. The axis of rotation for this unit is the same as that for the separate...
Two disks are rotating about the same axis. Disk A has a moment of inertia of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 3.3 kg · m2 and an angular velocity of +7.4 rad/s. Disk B is rotating with an angular velocity of -9.3 rad/s. The two disks are then linked together without the aid of any external torques, so that they rotate as a single unit with an angular velocity of -2.5 rad/s. The axis of rotation for this unit is the same as that for...
Two disks are rotating about the same axis. Disk A has a moment of inertia of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 4.50 kg·m2 and an angular velocity of +1.17 rad/s. Disk B is rotating with an angular velocity of -6.93 rad/s. The two disks are then linked together without the aid of any external torques, so that they rotate as a single unit with an angular velocity of -3.80 rad/s. The axis of rotation for this unit is the same as that for the separate...
Two disks are rotating about the same axis. Disk A has a moment of inertia of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 6.08 kg·m2 and an angular velocity of +3.60 rad/s. Disk B is rotating with an angular velocity of -6.84 rad/s. The two disks are then linked together without the aid of any external torques, so that they rotate as a single unit with an angular velocity of -4.50 rad/s. The axis of rotation for this unit is the same as that for the separate...
Two disks are rotating about the same axis. Disk A has a moment of inertia of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 3.4 kg · m2 and an angular velocity of +7.2 rad/s. Disk B is rotating with an angular velocity of –9.8 rad/s. The two disks are then linked together without the aid of any external torques, so that they rotate as a single unit with an angular velocity of –2.4 rad/s. The axis of rotation for this unit is the same as that for...
1) The parallel axis theorem provides a useful way to calculate the moment of inertia I...
1) The parallel axis theorem provides a useful way to calculate the moment of inertia I about an arbitrary axis. The theorem states that I = Icm + Mh2, where Icm is the moment of inertia of the object relative to an axis that passes through the center of mass and is parallel to the axis of interest, M is the total mass of the object, and h is the perpendicular distance between the two axes. Use this theorem and...
4. a) A solid truncated cone with smaller radius a and larger radius b, height h, and Determine the moment of inertia of the truncated cone in terms of a,b.p and central axis. 8 pts h when rotated about its b) A bullet of with a mass-m,is fired into the cone with a speed v, in the z direction. The bullet a +b above the central axis of the cone and lodges in the cone at the enters the cone...
Calculate the moment of inertia of the following figure about
the axis O. A is a uniform solid cylinder with mass M and radius R.
B is a uniform thin rod with mass M and length 3R. A and B objects
are attached together and rotate together about axis O. The
distance X is and Y is in the figure. The
light blue line is going through the center of the cylinder and the
point “CM” represents the center of mass of...
Two disks are rotating about the same axis. Disk A has a moment of inertia of 4.45 kg.m2 and an angular velocity of +4.87 rad/s. Disk B is rotating with an angular velocity of -7.28 rad/s. The two disks are then linked together without the orques, so that they rotate as a single unit with an angular velocity of -3.59 rad/s. The axis of rotation for this unit is the same as that for the separate disks. What is the...
The moment of inertia of the human body about an axis through
its center of mass is important in the application of biomechanics
to sports such as diving and gymnastics. We can measure the body's
moment of inertia in a particular position while a person remains
in that position on a horizontal turntable, with the bodys center
of mass on the turntable's rotational axis. The turntable with the
person on it is then accelerated from rest by a torque that...
