Question

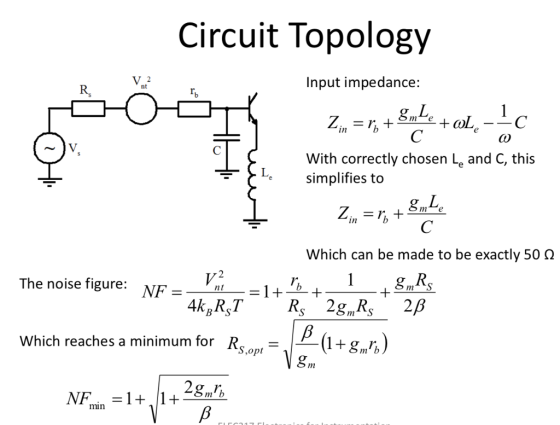

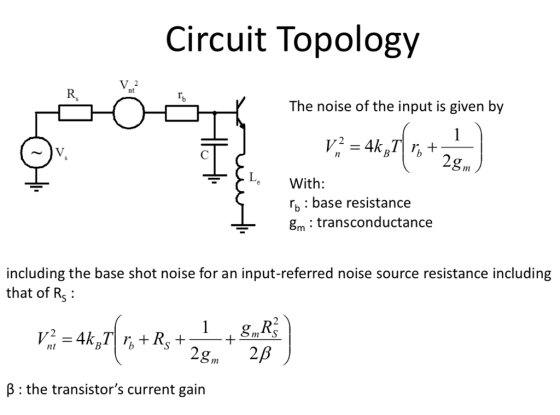

Circuit Topology nt The noise of the input is given by 2 Le With: r, : base resistance gm transconductance including the base shot noise for an input-referred noise source resistance including that of Rs 2g2P ß:the transistors current gaini dont understand for Vnt^2 why there is 1/2g + gmRs^2/2B and how gmLe/C is found for Zin

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:

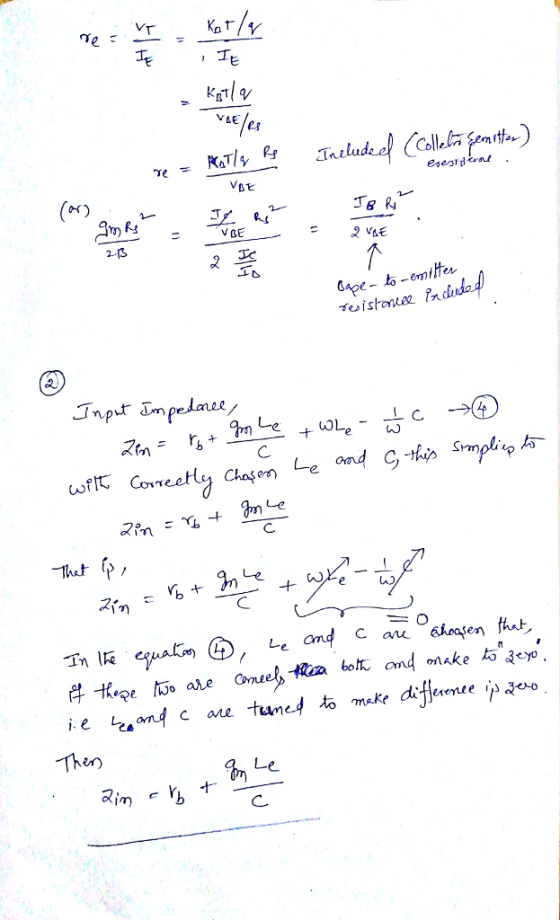

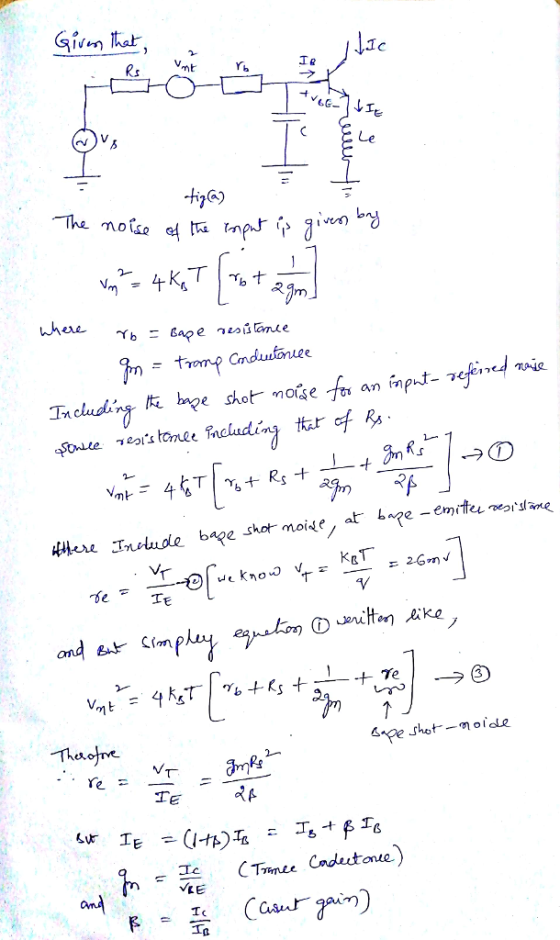

i dont understand for Vnt^2 why there is 1/2g + gmRs^2/2B and how gmLe/C is found...
