A natural gas fuel consists of the following volumetric composition: Methane, CH4: 92.5 % Ethane, C2H6:...

A natural gas fuel consists of the following volumetric composition:
Methane, CH4: 92.5 %
Ethane, C2H6: 3.7 %
Propane, C3H8: 0.8 %
Nitrogen, N2: 3 %
(a) Write out the complete combustion equations for all the combustible constituents individually.

(b) Calculate the stoichiometric air to fuel (A/F) ratio on a volume basis.

(c) Determine the wet volumetric analysis of the combustion products.

(d) Find the dry volumetric analysis of the combustion products.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

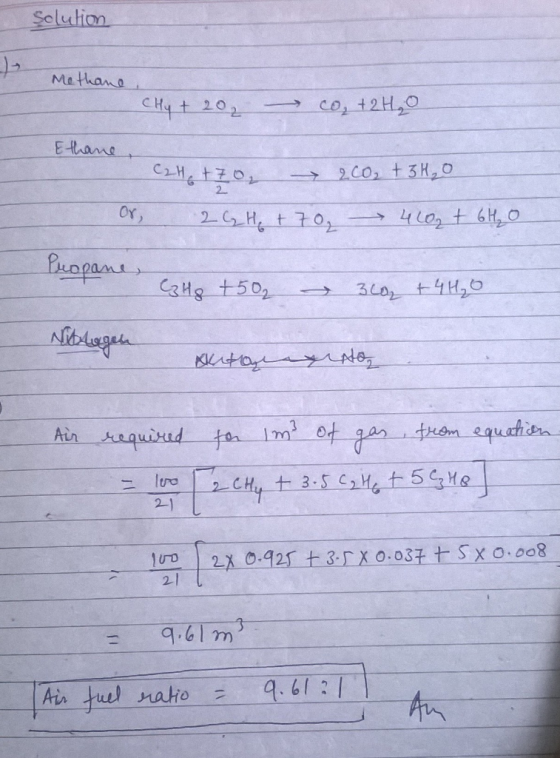

Solution Ma thana Hy t 20 Etane 2 Or Aih 2-1 2l 7m

0 0
Add a comment
Know the answer?
Add Answer to:
A natural gas fuel consists of the following volumetric composition: Methane, CH4: 92.5 % Ethane, C2H6:...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Gaseous fuel has the following volumetric composition CH4 0.38, H2 0.26 , N2 0.06 CO 0.26, CO2 0....

    Gaseous fuel has the following volumetric composition CH4 0.38, H2 0.26 , N2 0.06 CO 0.26, CO2 0.04. Find Stoichiometric air/fuel ratio by volume and the corresponding wet and dry volumetric analyses of the products of combustion

  • A gaseous fuel mixture contains 25.3% methane (CH4), 38.2% ethane (C2H6), and the rest propane (C3H8)...

    A gaseous fuel mixture contains 25.3% methane (CH4), 38.2% ethane (C2H6), and the rest propane (C3H8) by volume. When the fuel mixture contained in a 1.76 L tank, stored at 756 mmHg and 298 K, undergoes complete combustion, how much heat is emitted? (Assume that the water produced by the combustion is in the gaseous state.) Express your answer with the appropriate units.

  • Natural gas is mostly methane, but it also contains some ethane and propane. The enthalpies of...

    Natural gas is mostly methane, but it also contains some ethane and propane. The enthalpies of combustion of methane, ethane and propane are -810, -1420, and -2030 kJ mol-1, respectively. (A) Complete the chemical reactions for the combustion of these fuels and calculate the amount of heat released per mole of oxygen and carbon dioxide produced for the three gases using the enthalpy of the reaction.         i. For methane:       CH4 + O2 -> ___________               Heat released per...

  • Problem: Bapco needs to burn natural-gas fuel that contains 75 mol% methane, 15 mol% ethane, and ...

    Problem: Bapco needs to burn natural-gas fuel that contains 75 mol% methane, 15 mol% ethane, and 10 mol% nitrogen. The following two reactions takes place: CH4(g) 20209) CO2(0) 2H2o) C2H6 (g) + 3.502(g) 2C02(g)3H20 (g) a) What is the standard heat of combustion (kJ/mol) of the fuel at 25 oC with water(g) as a product b) The fuel is supplied to a furnace with 60% excess air, both entering at 250C. The products leave at 600°C. If the combustion is...

  • 1)Three gases (8.00 g of methane, CH4, 18.0 g of ethane, C2H6, and an unknown amount...

    1)Three gases (8.00 g of methane, CH4, 18.0 g of ethane, C2H6, and an unknown amount of propane, C3H8) were added to the same 10.0-L container. At 23.0 ∘C, the total pressure in the container is 4.00 atm . Calculate the partial pressure of each gas in the container. Express the pressure values numerically in atmospheres, separated by commas. Enter the partial pressure of methane first, then ethane, then propane. 2)A gaseous mixture of O2 and N2 contains 38.8 nitrogen...

  • Determine the air to fuel ratio of: Canadian natural gas, with 93.9% methane, 4.2% ethane, 0.3%...

    Determine the air to fuel ratio of: Canadian natural gas, with 93.9% methane, 4.2% ethane, 0.3% propane, 1.0% nitrogen, and 0.6% hydrogen sulfide (vol%), which burns at a stoichiometric value of ? = 1.2.

  • A) Three gases (8.00 g of methane, CH4, 18.0 g of ethane, C2H6, and an unknown...

    A) Three gases (8.00 g of methane, CH4, 18.0 g of ethane, C2H6, and an unknown amount of propane, C3H8) were added to the same 10.0-L container. At 23.0 ∘C, the total pressure in the container is 3.90 atm . Calculate the partial pressure of each gas in the container. Express the pressure values numerically in atmospheres, separated by commas. Enter the partial pressure of methane first, then ethane, then propane. B) A gaseous mixture of O2O2 and N2N2 contains...

  • Thermodynamics 6. A certain natural gas has the following volumetric analysis: 65 percent CH4, 8 percent...

    Thermodynamics 6. A certain natural gas has the following volumetric analysis: 65 percent CH4, 8 percent H2, 18 percent N2, 3 percent O2, and 6 percent CO2. This gas is now burned completely with the stoichiometric amount of dry air. What is the air-fuel ratio for this combustion process, and the equivalence ratio?

  • Be sure to answer all parts.A sample of natural gas contains 6.327 moles of methane (CH4),...

    Be sure to answer all parts.A sample of natural gas contains 6.327 moles of methane (CH4), 0.803 moles of ethane (C2H6), and 0.216 moles of propane (C3H8). If the total pressure of the gases is 2.99 atm, what are the partial pressures of the gases?

  • 1. A gaseous fuel has the following volumetric analysis: CH4-60%, C2H6-30%, H,-10% The fuel (at 1...

    1. A gaseous fuel has the following volumetric analysis: CH4-60%, C2H6-30%, H,-10% The fuel (at 1 tm, 25°C) is burnt with stoichiometric air at 1 atm, 25°C, The products are at 150°C. Determine the A/F ratio, the heat released per kg of fuel and the dew point of the products. (12)
