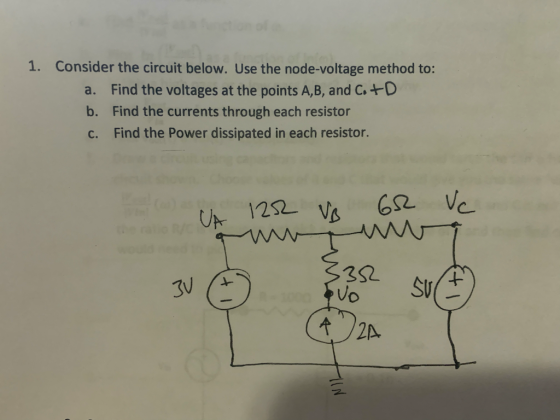

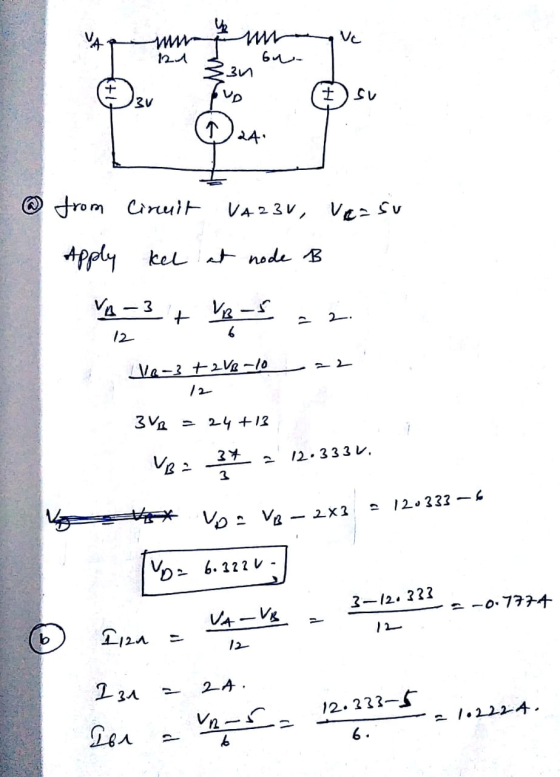

Any help would be appreciated! 12 1. Consider the circuit below. Use the node-voltage method to:...
1) In the circuit below the currents are named A, and lc The current direction is determined by the source (out of positive terminal) in the middle and right branches and is clockwise in the left branch · IA flows through R2 and R1 Is flows through R4 and Vb cflows through R3, Vc AB R2 R3 R4 R1 Vb a) Draw the circuit and show the 3 currents described above, including arrows showing the current direction. Show the voltage...
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
2. In the circuit below, use the node-voltage method to find v, and the power dissipated the 1092 resistor 5 VA 2012 - e 15V(1 } 111 vaļ2N 3102 v. 340.0
2. (2000) Electromagnetics (DC Circuit) Problem a. Calculate the voltages across all resistors and the currents through all the resistors and voltage sources in the following circuit using Kirchhoff's junction rule (nodal analysis). Show the directions initially assumed for the junction (node) currents. Use the minimum number of junctions (nodes) necessary to accomplish this b. Calculate the power dissipation in each resistor and the sum (or total) of these individual power dissipation values c. Calculate the power associated with each...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? Vc M R1 + VA VB - R2 R3 1.25 W 2.0W 12.5 W 6.25 W 8.13 W The circuit shown in the figure contains four...
Solve this circuit using node-voltage method. Determine the
currents through all the elements and voltages across all elements.
Verify that the total power developed equals the total power
absorbed
Without repeating the node-voltage analysis, predict the node
voltages at nodes d, c, b and g, if node a was selected as the
reference node (or ground).
R2 560 n R, 1 kn R 430 Vs a ww R 820 n ww R3 2.2 kn V6R430 R, 1.5 k Rs 820...
Consider the circuit below, where R-5000Ω,C-0.25μF . The voltage amplitude is 10 V and the frequency of oscillation is 180 rad Is . When voltages and currents are requested, express them in purely real terms. Note: this circuit is examined in some detail in Chapter 7, section 2. Have a look at that first. a) What is the total impedance? Express it as both a complex number and as magnitude and phase. What is the current in the circuit? What...
Learning Goal: To use the node-voltage method to solve circuits that contain resistors and independent sources. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. You should review KCL and the definition of an essential node before beginning. In this tutorial, you will use the node-voltage method to find the current through the voltage source, io , and the voltage drop across the 5 kN resistor, vo, for the circuit...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1 ko Rz 4k sht 10v ☺ ş 4 kg (lc Ako su sos a. Write a complete set of node voltage equations; one for each node (A through E) b. Using the equations from part a, determine the node voltages VA, VB, Vc, Vo and Ve c. Using the node voltages from part b, determine Vyand ly. Problem 2 (20 points) Using the same...
3. (Bonus) Determine a state variable model for the circuit in Figure 2. Note that If the voltage at the left and right hand side of a resistor R is v and vR, respectively, and the current is assumed to flow through the resistor from left to right, then the current passing through the resistor R is iR We know that the voltage drop across a capacitor is uc = the current passing through the capacitor branch is ic cat,...
