The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's...

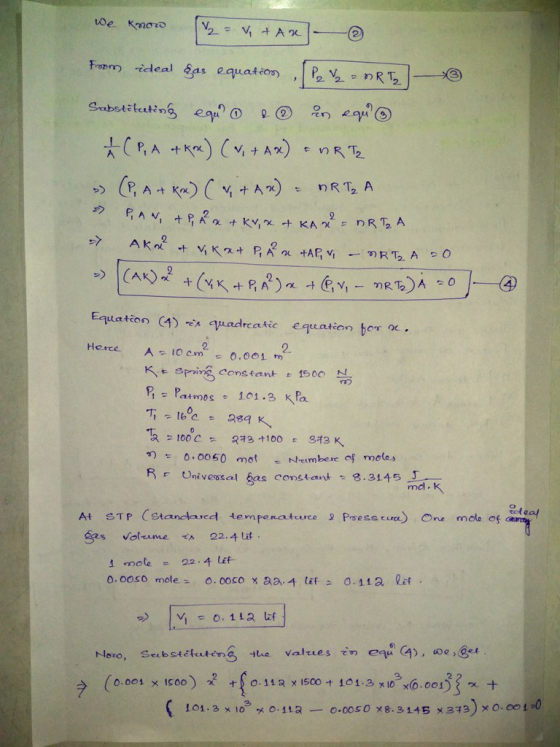

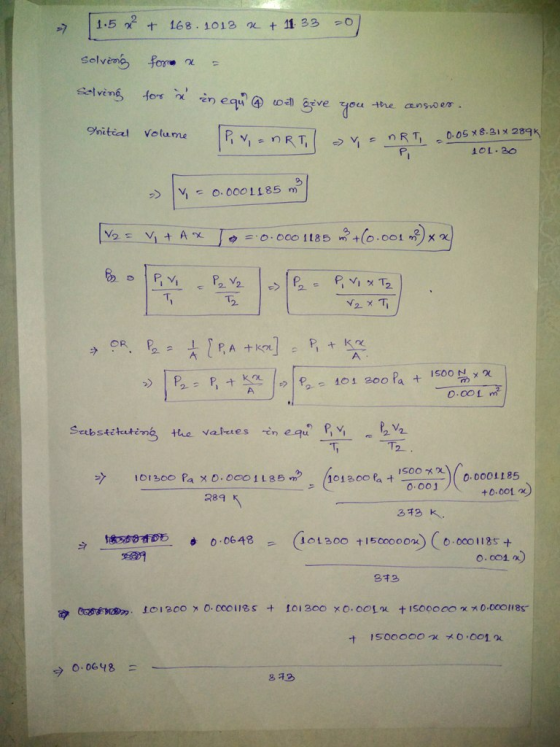

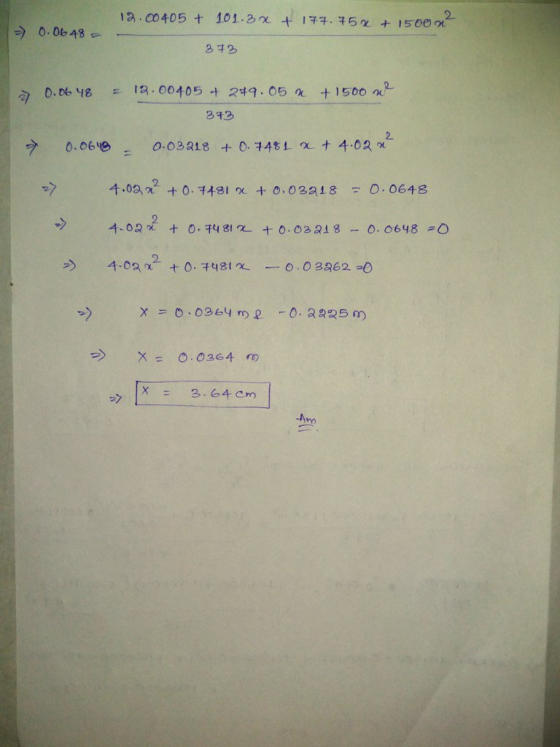

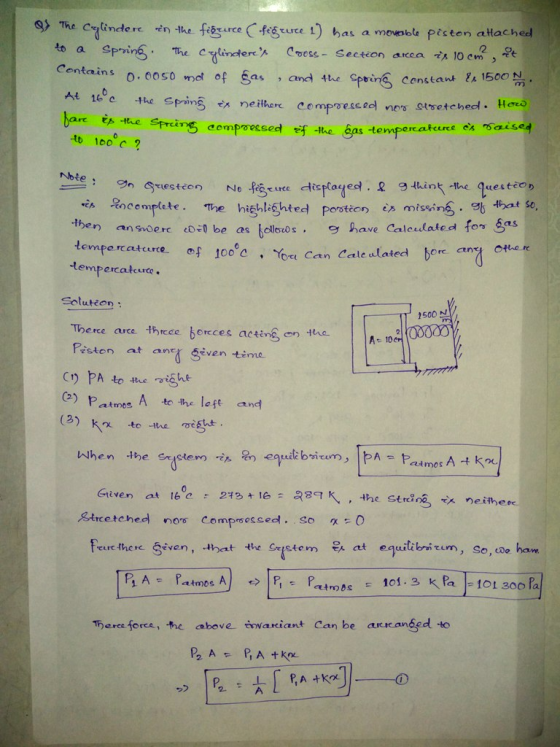

The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's cross-section area is 10 cm2, it contains 0.0050 mol of gas, and the spring constant is 1500 N/m. At 16 ∘C the spring is neither compressed nor stretched.
Homework Answers
Add Answer to:
The cylinder in the figure(Figure 1) has a moveable piston
attached to a spring. The cylinder's...
The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's...
The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's cross-section area is 10 cm”, it contains 0.0051 mol of gas, and the spring constant is 1500 N/m. At 17 °C the spring is neither compressed nor stretched. Part A How far is the spring compressed if the gas temperature is raised to 120 °C? Express your answer to two significant figures and include the appropriate units. Ar = 0.94 cm cm Submit Previous...
1 Review The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's cross-sect...
1 Review The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's cross-section area is 10 cm, it contains 0.0052 mol of gas, and the spring constant is 1500 N/m. At 17°C the spring is neither compressed nor stretched. Part A How far is the spring compressed if the gas temperature is raised to 100 °C? Express your answer to two significant figures and include the appropriate units. Figure HO? Value ΔΣ Η Tits...
A cylinder with a moveable piston contains 0.594 mol of gas and has a volume of...
A cylinder with a moveable piston contains 0.594 mol of gas and has a volume of 240 mL. What will its volume be if an additional 0.174 mol of gas is added to the cylinder? (Assume constant temperature and pressure.)
A cylinder with a moveable piston contains 0.581 mol of gas and has a volume of...
A cylinder with a moveable piston contains 0.581 mol of gas and has a volume of 280 mL. What will its volume be if an additional 0.158 mol of gas is added to the cylinder? (Assume constant temperature and pressure.)
A cylinder with a moveable piston contains 0.516 mol of gas and has a volume of...
A cylinder with a moveable piston contains 0.516 mol of gas and has a volume of 203 mL . What will its volume be if an additional 0.185 mol of gas is added to the cylinder? (Assume constant temperature and pressure.)
3. A gas is contained in a vertical, frictionless piston-cylinder device (figure 3) above. The piston...
3. A gas is contained in a vertical, frictionless piston-cylinder device (figure 3) above. The piston has a mass of 38 kg and a cross-sectional area of 35 cm2. A compressed spring above the piston exerts a force of 60 N on the piston. Determine the pressure inside the cylinder. (12 marks) a. 138.4 kPa b 147 kPa e. 127.8 kPa d. 131.2 kPae. 125 kPa
A gas is contained in a vertical, frictionless piston-cylinder device. The piston has a mass of...
A gas is contained in a vertical, frictionless piston-cylinder device. The piston has a mass of 3.2 kg and a cross-sectional area of 35 cm2. A compressed spring above the piston exerts a force of 110 N on the piston. If the atmospheric pressure is 95 kPa, determine the pressure inside the cylinder. The pressure inside the cylinder is _______ kPa.
A cylinder with a moveable piston contains 0.502 mol of gas and has a volume of...
A cylinder with a moveable piston contains 0.502 mol of gas and has a volume of 275 mL What will its volume be if an additional 0.198 mol of gas is added to the cylinder
Question 5. (20 points) A gas is contained in a vertical frictionless piston-cylinder device. The piston...
Question 5. (20 points) A gas is contained in a vertical frictionless piston-cylinder device. The piston has a mass of 2.9 kg and cross-sectional area of 40 cm2. A compressed spring above the piston exerts a force of 170 N on the piston. If the atmospheric pressure is 97 kPa, determine the pressure inside the cylinder
The drawing shows an ideal gas confined to a cylinder by a massless piston that is...
The drawing shows an ideal gas confined to a cylinder by a massless piston that is attached to an ideal spring. Outside the cylinder is a vacuum. The cross-sectional area of the piston is A = 2.50 x 10 m . The initial pressure, volume, and temperature of the gas are, respectively, Po, V. - 6.00 x 10 m and To - 273 K, and the spring is initially stretched by an amount Xo = 0.098 m with respect to...
The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's cross-section area is 10 cm”, it contains 0.0051 mol of gas, and the spring constant is 1500 N/m. At 17 °C the spring is neither compressed nor stretched. Part A How far is the spring compressed if the gas temperature is raised to 120 °C? Express your answer to two significant figures and include the appropriate units. Ar = 0.94 cm cm Submit Previous...
1 Review The cylinder in the figure(Figure 1) has a moveable piston attached to a spring. The cylinder's cross-section area is 10 cm, it contains 0.0052 mol of gas, and the spring constant is 1500 N/m. At 17°C the spring is neither compressed nor stretched. Part A How far is the spring compressed if the gas temperature is raised to 100 °C? Express your answer to two significant figures and include the appropriate units. Figure HO? Value ΔΣ Η Tits...
3. A gas is contained in a vertical, frictionless piston-cylinder device (figure 3) above. The piston has a mass of 38 kg and a cross-sectional area of 35 cm2. A compressed spring above the piston exerts a force of 60 N on the piston. Determine the pressure inside the cylinder. (12 marks) a. 138.4 kPa b 147 kPa e. 127.8 kPa d. 131.2 kPae. 125 kPa
Question 5. (20 points) A gas is contained in a vertical frictionless piston-cylinder device. The piston has a mass of 2.9 kg and cross-sectional area of 40 cm2. A compressed spring above the piston exerts a force of 170 N on the piston. If the atmospheric pressure is 97 kPa, determine the pressure inside the cylinder
The drawing shows an ideal gas confined to a cylinder by a massless piston that is attached to an ideal spring. Outside the cylinder is a vacuum. The cross-sectional area of the piston is A = 2.50 x 10 m . The initial pressure, volume, and temperature of the gas are, respectively, Po, V. - 6.00 x 10 m and To - 273 K, and the spring is initially stretched by an amount Xo = 0.098 m with respect to...
