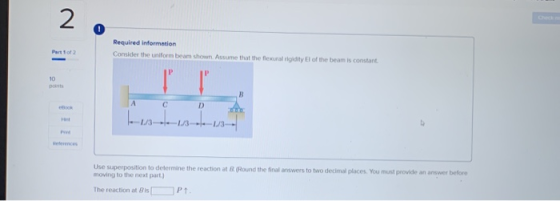

Required information Consider the uniform beam shown. Assume that the fexur d ity El of the...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

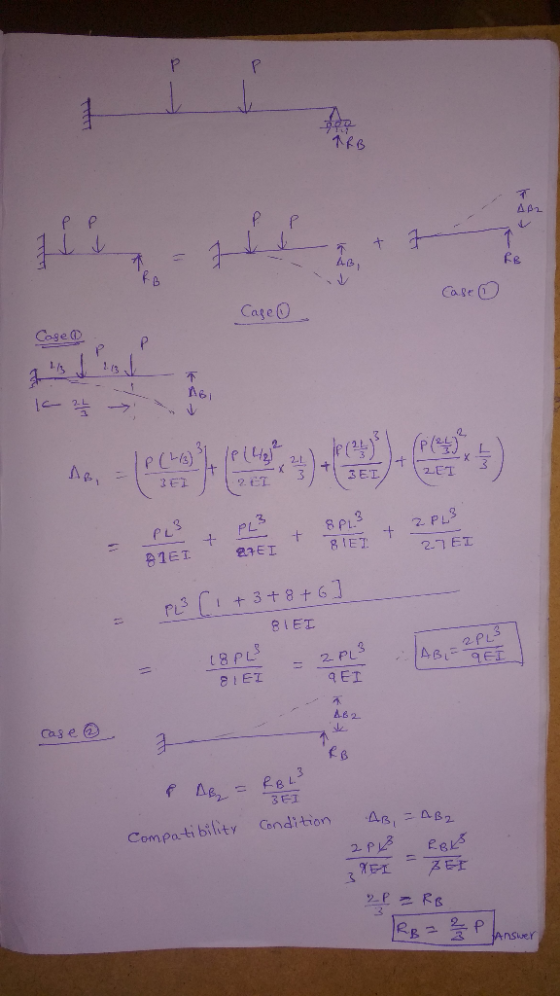

Apr Cafe Case O CageD PCL6) A&y 2 ET 3 ET 2ET PL3 8PLS + 8IET 2 PL3 + -1 81EI 2.7EI 1+3+8t G BLET 2PLS ABIE REI 8 PL 2 PL3 9E

Answer 2

Similar Homework Help Questions

Required information Consider the beam and loading shown. Use w= 19 kN/m and E = 200...

Required information Consider the beam and loading shown. Use w= 19 kN/m and E = 200 GPa. (For W410 x 60, 1 = 216 x 10-6 m4 B. I A W410 X 60 5 m 3 m Determine the reaction at point C. (Round the final answer to two decimal places. You must provide an answer before moving to the next part.) The reaction at point C is KN 1
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is...

Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant. L/2 References eBook & Resources Section Break Difficulty Easy 4. value: 10.00 points Determine the deflection at mid span of span AB. (Round the final answer to four decimal places.) ↓ The deflection at mid span is
slope and deflection please Consider the beam and loading shown. Assume that the flexural rigidity El...

slope and deflection please Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant References eBook & Resources Section Break -Difficulty: Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is

Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is...

Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant А Identify the equation of the elastic curve for the cantilever beam AB
For the cantilever beam shown, sketch the deflected shape of the beam. Assume that El is...

For the cantilever beam shown, sketch the deflected shape of the beam. Assume that El is constant for the beam. Place the origin of the coordinate system at the left end of the beam. Then, use the superposition method to determine the total deflection at 8. IAns. to Check: ?.--7wL/ABE 2) IV Mo-wL /24
-. Required information Consider the beam and loading shown. Take d = 1.19 in. Use E...

-. Required information Consider the beam and loading shown. Take d = 1.19 in. Use E = 29 106 psi. | 200 lb 10 lb/in. d B D -8 in. -24 in. 16 in. - 48 in Determine the slope at end A. (Round the final answer to two decimal places.) The slope at end A is x 107 rad

Consider the beam with the given loading where F2 460 Ib/ft tCo F2 7 ft References...

Consider the beam with the given loading where F2 460 Ib/ft tCo F2 7 ft References eBook& Resources Section Break Difficulty Medium 12. 1000 points Required information Determine the distributed load wo at the end A of the beam ABC for which the reaction at C is zero. (Round the final answer to the nearest whole number.) (You must provide an answer before moving to the next part.) The distributed load Wo at the end A of the beam ABC...
Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant...

Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant Mo References eBook &Resources Section Break Difficulty. Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is EI
! Required information Consider the beam and loading shown where Pis 145 kN and E= 200...

! Required information Consider the beam and loading shown where Pis 145 kN and E= 200 109 Pa. P SOKN.m SO KN.m B А с I W410 X 46.1 -2.5 m 2.5 m Determine the slope at end A. (Round the final answer to three decimal places.) The slope at end A is x 107 rad $

Required information Problem 08.038 - Analysis of more advanced beam problem NOTE: This is a multi-part...

Required information Problem 08.038 - Analysis of more advanced beam problem NOTE: This is a multi-part question. Two identical uniform boards, each with a weight of 49 lb, are temporarily leaned against each other as shown. The coefficient of static friction between all surfaces is 0.40. S ft 4 ft A -6 - 6- Problem 08.038.b - Analysis of more advanced beam problem Determine the largest magnitude of the force P for which equilibrium will be maintained. (You must provide...
