For the beams shown in Figure P16-11, determine the natural frequencies using first two and then...

Question

Question

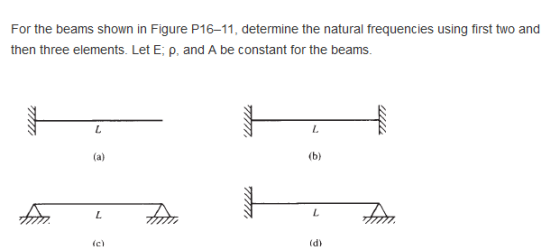

For the beams shown in Figure P16-11, determine the natural frequencies using first two and then three elements. Let E; ρ, an

engineering Civil-Engineering

Answer 1

Answer #1

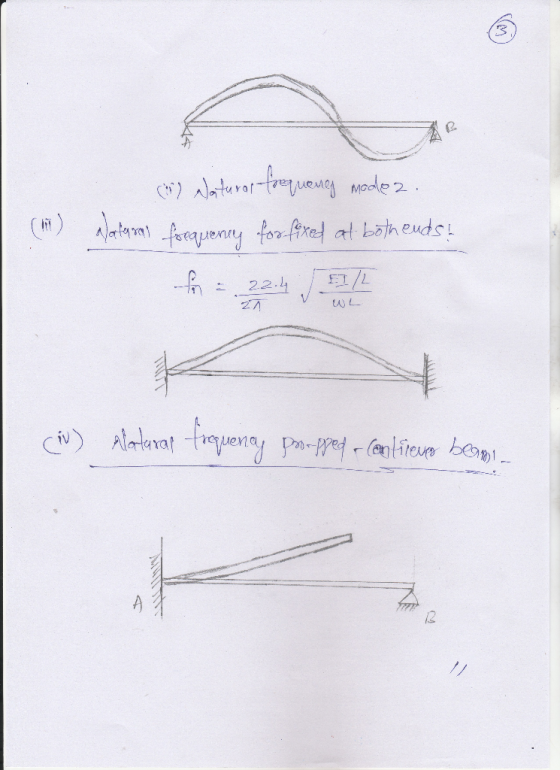

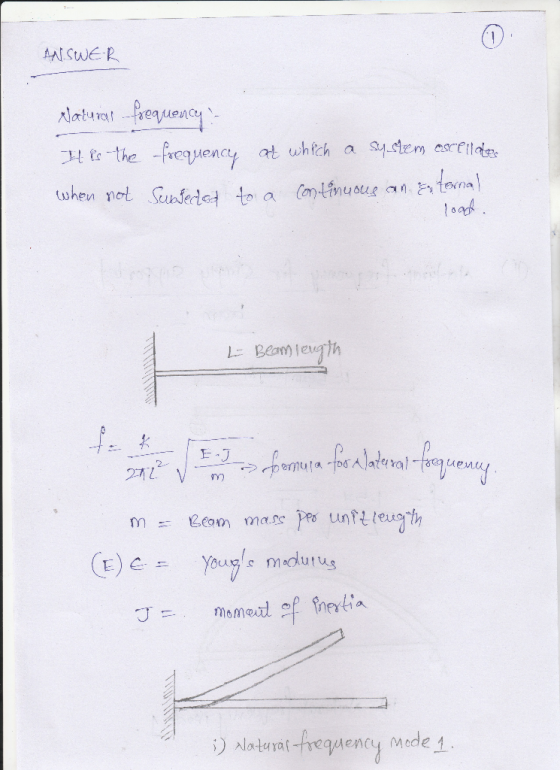

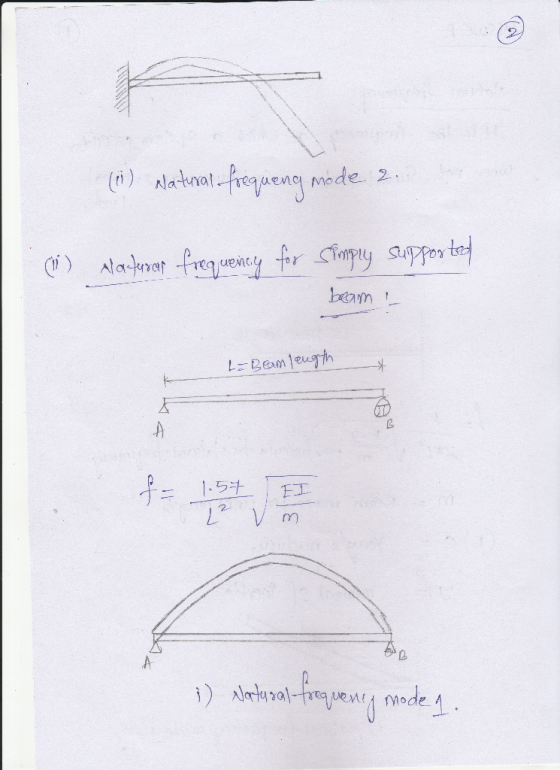

ISWE P )) Alaturat-frequency Medel uene Mode 2 -に Mode. A 30 MA atura が2-H

Answer 2

Similar Homework Help Questions

Determine the natural frequencies of the two-degree-of-freedom mechanical system of Figure P6.37 6.37 Determine the natural...

Determine the natural frequencies of the two-degree-of-freedom mechanical system of Figure P6.37 6.37 Determine the natural frequencies of the two-degree- of-freedom mechanical system of Figure P6.37. N N 2 x 10 3 x 10 10 2 kg 3 kg FIG. P6.37
Determine the natural frequencies and vibration modes of the two degree of freedom rectilinear system shown...

Determine the natural frequencies and vibration modes of the two degree of freedom rectilinear system shown in the following figure. please detail all the steps ans: k m, ww m2 DCL LEE LFF Оn1 — 0 k(m1+m2) Wn2 7ш.Тш X1 X2 -т, — Х, ( X2 X1 т2
There are two simply-supported beams with the following equations of motion. What is the ratio between their first natu...

There are two simply-supported beams with the following equations of motion. What is the ratio between their first natural frequencies? Consider: P 0.51p,, E=1.86E,, A =24 , and 8, E.I =fcos(2,t) Beam 1: PA E2 Beam 2: P2A at2 ()soo There are two simply-supported beams with the following equations of motion. What is the ratio between their first natural frequencies? Consider: P 0.51p,, E=1.86E,, A =24 , and 8, E.I =fcos(2,t) Beam 1: PA E2 Beam 2: P2A at2 ()soo

2) Find the natural frequencies of the triangular plate shown in Figure 2. The plate is...

2) Find the natural frequencies of the triangular plate shown in Figure 2. The plate is 1 mm thick and made from steel with E 205 GPa, v= 0.3, and p 7747 kg/m2. Use a one-element triangular model. 20 mm 20mm 50mm Figure 2. Triangular plate fixed at one side and with dimensions shown in mm 2) Find the natural frequencies of the triangular plate shown in Figure 2. The plate is 1 mm thick and made from steel with...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0...

Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0 kg me = 1.5 kg 914 Given: Four degree of freedom spring-mass system with given masses an stiffnesses. Find: Natural frequencies and mode shapes. Approach: Find the eigenvalues and eigenvectors of the dynamical matrix. 1. Determine [m] and [k] matrices of the vibrating system with all details 2. Determine [DI matrix. 3. Determine Natural frequencies and mode shapes analytically 3....
6.37 Determine the natural frequencies of the two-degree- of-freedom mechanical system of Figure P6.37. 2 x...

6.37 Determine the natural frequencies of the two-degree- of-freedom mechanical system of Figure P6.37. 2 x 10 3 x 10 1 x 105N 2 kg 3 kg FIG. P6.37

8. Determine the natural frequencies of the system shown in Fig 1, where fi (t) =...

8. Determine the natural frequencies of the system shown in Fig 1, where fi (t) = falt) = 0 and 1c 0. The resulting equation of motions are: xi(t) 2(t) k1 m1 m2 C3 Figure 1: 2 DOF system
how to solve this problem?(not use energy methods) 1. Determine the two natural frequencies and mode...

how to solve this problem?(not use energy methods) 1. Determine the two natural frequencies and mode shapes of the two-mass systems shown mi m 2k m22m 2k
Solve all problems using the finite element stiffness method. For the beams shown in Figure P4-...

Solve all problems using the finite element stiffness method. For the beams shown in Figure P4- 21 determine the nodal displacements and slopes, the forces in each element, and the reactions. 2000 lb/ft E = 29 x 106 psi I = 200 in. - 15 ft 15 ft — Figure P4-21

Solve all problems using the finite element stiffness method.For the beams shown in Figure P4- 22...

Solve all problems using the finite element stiffness method.For the beams shown in Figure P4- 22 determine the nodal displacements and slopes, the forces in each element, and the reactions. 4000 lb/ft E=29 × 106 psi 1 = 1 50 in.4 10 ft Figure P4-22
