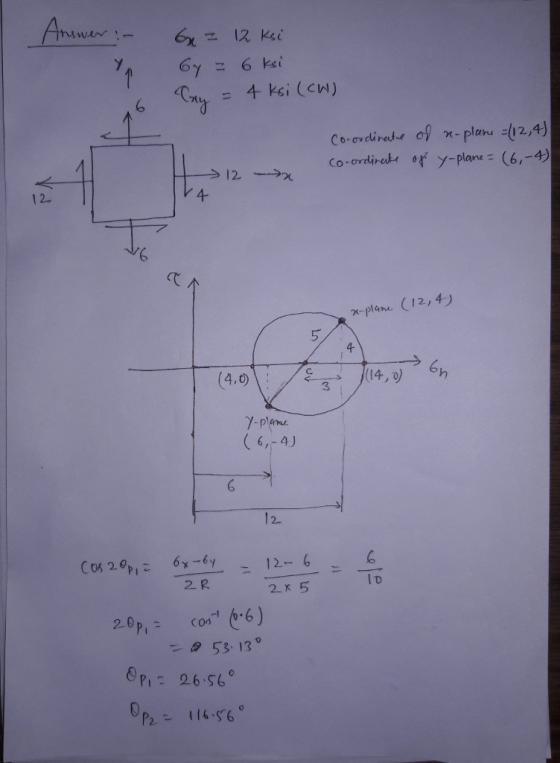

P2) Given σ.-12 ksi σ,#6 ksi ,.4 ksi (CW). Draw and properly label the Mohr's circle...
Homework For each of the plane stress states listed below, draw a Mohr's circle diagram properly...
Homework For each of the plane stress states listed below, draw a Mohr's circle diagram properly labeled, find the principal normal and shear stresses, and determine the angle from the x axis to 0. Draw stress elements as in Fig. 3-11c and d and label all details. (a) Ox = -8 MPa, Oy = 7 MPa, Txy = 6 MPa cw (b) 0x = 9 MPa, Oy = -6 MPa, Txy = 3 MPa cw (C) Ox = -4 MPa,...
3. For each of the plane stress states listed below draw a Mohr's Circle diagram properly...
3. For each of the plane stress states listed below draw a Mohr's Circle diagram properly labeled, find the principal normal and shear stresses and determine the angle from the X- axis to di. Draw the principal stress element and the maximum shear stress element. (a) 0 = -8 MPa, ay = 7 MPa, Try = 6 MPa (CW) (b) 0 = 9 MPa, y = -6 MPa, Try = 3 MPa (CW) (c) 0:= -4 MPa, y = 12...
Draw and label Mohr's Circle of Stress for the case given. Show the original state of...
Draw and label Mohr's Circle of Stress for the case given. Show the original state of stress and principal stresses. Draw a rotated element showing directions for the principal stresses and the maximum shear stress. 115 ksi 9 ksi
Using Mohr's circle determine for the below differential element: a) the principal stresses and the plan...
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
b) the maximum shear stress and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
c) the stresses on a differential element 40 degrees clockwise
from the original element. Show the stresses on a properly oriented
differential element. Label...
Required information Solve the following problems using Mohr's circle. Given: P= 12.5 ksi S ksi 6...
Required information Solve the following problems using Mohr's circle. Given: P= 12.5 ksi S ksi 6 ksi Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through 25° clockwise. (Round the final answers to two decimal places.) Normal stresses: Ox'= yksi (+ tension; - compression) Oy= ksi (+ tension; - compression) Shearing stress: Tx'y'= C k si (+ CCW on the positive X-face)
will rate!! show good work plz! plz also label the diagram Problem 4) Draw Mohr's circle...
will rate!!
show good work plz!
plz also label the diagram
Problem 4) Draw Mohr's circle for the given stress state. Label the location of the x- and y-face points, principal stresses, maximum shear stress, and average normal stress. Then, using information derived from the circle, calculate the principal stresses, the maximum shear stress state, and the rotation angles to those two states. (10 points for properly drawn and labeled circle, 20 points for the numerical answers.) Pro-tip: The circle...
urgent! thanks in advance [1] - [4] (a) Draw and label the 3D Mohr's Circle for...
urgent! thanks in advance

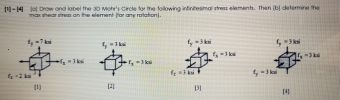

[1] - [4] (a) Draw and label the 3D Mohr's Circle for the following infinitesimal stress elements. Then (b) determine the max shear stress on the element (for any rotation). fy = 7 ksi fy = 3 ksi fy = 3 ksi fx = 3 ksi f = 3 ksi fx = 3 ksi = 3 ksi fz = 3 ksi fz = 2 ksi fy = 3 ksi
Please draw each point PROBLEM 4 (25%) Given the following state of stress, 20 ksi 16...
Please draw each point
PROBLEM 4 (25%) Given the following state of stress, 20 ksi 16 ksi 8 ksi Given the following state of stress, using the Mohr's circle: Determine the principal normal stresses and show their sense on a properly oriented element, “PRINCIPAL STRESS”. Show stress invariance with the original stress condition. Find the maximum shear stress with their associate normal stresses and show the results on a properly oriented element, "MAX SHEAR STRESS”. Show stress invariance with the...
2) [10] Draw a Mohr's circle diagram and the principal and shear stress elements, all properly...
2) [10] Draw a Mohr's circle diagram and the principal and shear stress elements, all properly labeled, for the following plane stress. 0x = 20 MPa, ay = -80 MPa, Txy = -60 MPa
Problem 3 For the following stress state, draw a Mohr's circle diagram, find the principal stresses...
Problem 3 For the following stress state, draw a Mohr's circle diagram, find the principal stresses and maximum normal stress. Also determine 'clockwise' rotation necessary to achieve o. ax 10 ksi, ay 24 ksi, txy 6 ksi
Homework For each of the plane stress states listed below, draw a Mohr's circle diagram properly labeled, find the principal normal and shear stresses, and determine the angle from the x axis to 0. Draw stress elements as in Fig. 3-11c and d and label all details. (a) Ox = -8 MPa, Oy = 7 MPa, Txy = 6 MPa cw (b) 0x = 9 MPa, Oy = -6 MPa, Txy = 3 MPa cw (C) Ox = -4 MPa,...
3. For each of the plane stress states listed below draw a Mohr's Circle diagram properly labeled, find the principal normal and shear stresses and determine the angle from the X- axis to di. Draw the principal stress element and the maximum shear stress element. (a) 0 = -8 MPa, ay = 7 MPa, Try = 6 MPa (CW) (b) 0 = 9 MPa, y = -6 MPa, Try = 3 MPa (CW) (c) 0:= -4 MPa, y = 12...
Draw and label Mohr's Circle of Stress for the case given. Show the original state of stress and principal stresses. Draw a rotated element showing directions for the principal stresses and the maximum shear stress. 115 ksi 9 ksi
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
b) the maximum shear stress and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
c) the stresses on a differential element 40 degrees clockwise
from the original element. Show the stresses on a properly oriented
differential element. Label...
Required information Solve the following problems using Mohr's circle. Given: P= 12.5 ksi S ksi 6 ksi Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through 25° clockwise. (Round the final answers to two decimal places.) Normal stresses: Ox'= yksi (+ tension; - compression) Oy= ksi (+ tension; - compression) Shearing stress: Tx'y'= C k si (+ CCW on the positive X-face)
will rate!!
show good work plz!
plz also label the diagram
Problem 4) Draw Mohr's circle for the given stress state. Label the location of the x- and y-face points, principal stresses, maximum shear stress, and average normal stress. Then, using information derived from the circle, calculate the principal stresses, the maximum shear stress state, and the rotation angles to those two states. (10 points for properly drawn and labeled circle, 20 points for the numerical answers.) Pro-tip: The circle...
urgent! thanks in advance
[1] - [4] (a) Draw and label the 3D Mohr's Circle for the following infinitesimal stress elements. Then (b) determine the max shear stress on the element (for any rotation). fy = 7 ksi fy = 3 ksi fy = 3 ksi fx = 3 ksi f = 3 ksi fx = 3 ksi = 3 ksi fz = 3 ksi fz = 2 ksi fy = 3 ksi
Please draw each point
PROBLEM 4 (25%) Given the following state of stress, 20 ksi 16 ksi 8 ksi Given the following state of stress, using the Mohr's circle: Determine the principal normal stresses and show their sense on a properly oriented element, “PRINCIPAL STRESS”. Show stress invariance with the original stress condition. Find the maximum shear stress with their associate normal stresses and show the results on a properly oriented element, "MAX SHEAR STRESS”. Show stress invariance with the...
2) [10] Draw a Mohr's circle diagram and the principal and shear stress elements, all properly labeled, for the following plane stress. 0x = 20 MPa, ay = -80 MPa, Txy = -60 MPa
Problem 3 For the following stress state, draw a Mohr's circle diagram, find the principal stresses and maximum normal stress. Also determine 'clockwise' rotation necessary to achieve o. ax 10 ksi, ay 24 ksi, txy 6 ksi
