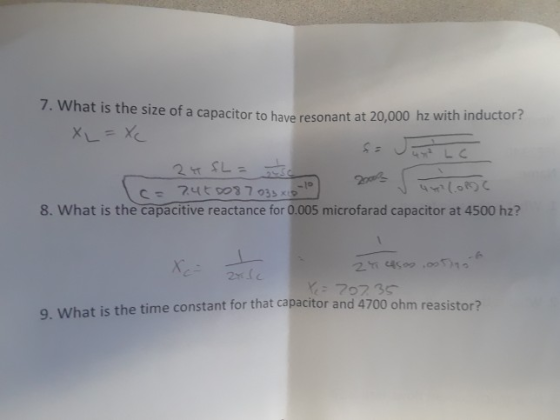

7. What is the size of a capacitor to have resonant at 20,000 hz with inductor? 8. What is the capacitive reactance for 0.005 microfarad capacitor at 4500 hz? 70735 or that capacitor and 4700 ohm reasistor? 9. What is the time constant f
