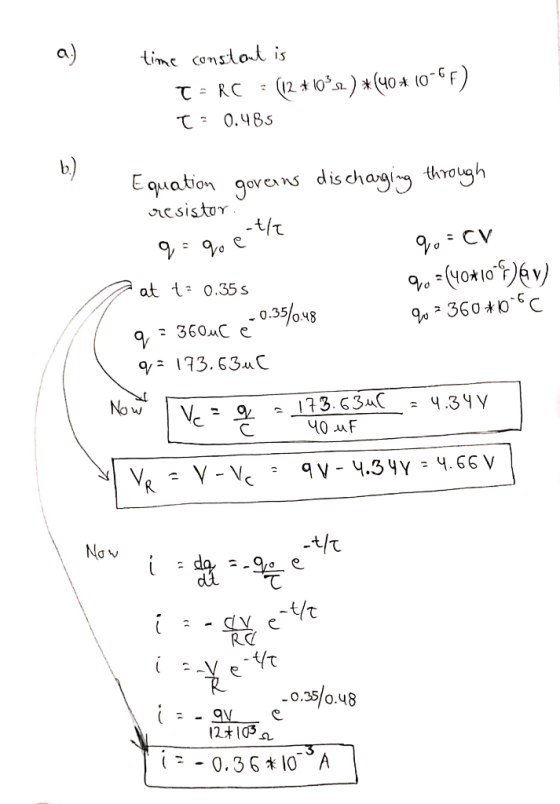

"O OHLEI E PICS! 3. An RC-Circuit is made up of a 12 kO resistor, a...
An RC circuit consists of a 5 uF capacitor, an 80,000 ohm resistor, and a 12-V...
An RC circuit consists of a 5 uF capacitor, an 80,000 ohm resistor, and a 12-V battery. The switch is closed at t=0. a) Find the time constant of the circuit. b) Find the time to reach 90% of the maximum charge across the capacitor.
A simply RC circuit made up of a capacitor with capacitance C and resistor with resistance...
A simply RC circuit made up of a capacitor with capacitance C and resistor with resistance R = 15 kΩ is attached to a battery with emf E = 24 V. If time constant is 25 µs, what is the capacitance C and the time it takes for the voltage across the capacitor to reach 16 V after the switch is closed at t = 0?
PLEASE ANSWER VERY QUICKLY!! I RATE HIGH!! The experiment is on RC circuits and the aim is to determine the time constant. Your group sets up the circuit with a resistor R and a capacitor C conne...
PLEASE ANSWER VERY QUICKLY!! I RATE HIGH!!
The experiment is on RC circuits and the aim is to determine the time constant. Your group sets up the circuit with a resistor R and a capacitor C connected to a switch and an ideal battery (E). The circuit diagram is shown in the figure. You close the switch at time Os and the voltage across the capacitor Ve and current I in the ammeter are recorded in a spreadsheet using a...
helpppp 5. A 250 Q resistor is in series with 200 uF capacitor. These are connected...
helpppp
5. A 250 Q resistor is in series with 200 uF capacitor. These are connected across a 20 V battery. The switch is turned on, and the capacitor begins to fill. After the capacitor is completely filled the battery is taken out of the circuit and the leads to the battery are shorted together. (a) (6 pts) What is the time constant, the maximum current, and the maximum charge on the capacitor? (b) (6 pts) When t = 0.04...
Construct a RC circuit (series) with a capacitor, a resistor, a battery,
Part A Charging of RC Circuit 1) Construct a RC circuit (series) with a capacitor, a resistor, a battery, two switches, and appropriate meters that will enable you to make measurements of the parameters for charging up the capacitor. The placement of the switches allows you to measure both charging and discharging of the RC circuit. See diagram below: 2) Choose a combination of Rand C that will give you a time constant(T) of 20 seconds. T=R*C 20= 100* C=0.2F 3) Set the...
Guaranteed thumbs up if all is complete. Thanks in advance! 28. An RC circuit is connected...
Guaranteed thumbs up if all is complete. Thanks in advance!
28. An RC circuit is connected to a 12.0 V battery at t=0 s and the capacitor voltage is monitored as a function of time. This cap is charging! a) Att = 0.147 s, the capacitor voltage is 20.0% of the battery voltage. What is the RC time constant? b) When will the capacitor be charged to 99.0% of the battery voltage? c) If the cap has value 2.0 mF,...
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF)...
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF) in series with a resistor (R = 2800 ), a battery (ε = 6.0 V) and an open switch. What is the time needed after the switch is closed for the voltage across the capacitor to reach 4.1 V? 4.8 ms 3.0 ms O 1.2 ms 2.8 ms
An RC circuit, hooked up to a battery as shown in the figure, starts with an...
An RC circuit, hooked up to a battery as shown in the figure,
starts with an uncharged capacitor. The resistance in the circuit
is R = 855.0 ? the capacitor has capacitance of C = 57.0 ?F and the
battery maintains the emf of ? = 26.0 V. The switch is closed at
time t = 0.0 s and the capacitor begins to charge.
a) What is the time constant for this circuit?
4.874×10-2 s (IS CORRECT)
b) What is...
A series RC circuit, which is made from a battery, a switch, a resistor, and a...
A series RC circuit, which is made from a battery, a switch, a resistor, and a 5.0-µF capacitor, has a time constant of 7.0 ms. If an additional 8.0-µF is added in series to the 5.0 µF capacitor, what is the resulting time constant?
8. Capacitance in circuits, RC circuits When a voltage source Vo is applied to a capacitor...
8. Capacitance in circuits, RC circuits When a voltage source Vo is applied to a capacitor in a circuit which has a resistance R, a charge Q CV will build up across the capacitor. This does not happen instantaneously, but takes some time. The charge builds up exponentially with a characteristic time r = RC. Charging: V = v. 1 - e-t/RC) Discharging: Vc = V e-t/RC Page 2 of 3 When t = RC , the exponential is lle,...
PLEASE ANSWER VERY QUICKLY!! I RATE HIGH!!
The experiment is on RC circuits and the aim is to determine the time constant. Your group sets up the circuit with a resistor R and a capacitor C connected to a switch and an ideal battery (E). The circuit diagram is shown in the figure. You close the switch at time Os and the voltage across the capacitor Ve and current I in the ammeter are recorded in a spreadsheet using a...
helpppp
5. A 250 Q resistor is in series with 200 uF capacitor. These are connected across a 20 V battery. The switch is turned on, and the capacitor begins to fill. After the capacitor is completely filled the battery is taken out of the circuit and the leads to the battery are shorted together. (a) (6 pts) What is the time constant, the maximum current, and the maximum charge on the capacitor? (b) (6 pts) When t = 0.04...
Part A Charging of RC Circuit 1) Construct a RC circuit (series) with a capacitor, a resistor, a battery, two switches, and appropriate meters that will enable you to make measurements of the parameters for charging up the capacitor. The placement of the switches allows you to measure both charging and discharging of the RC circuit. See diagram below: 2) Choose a combination of Rand C that will give you a time constant(T) of 20 seconds. T=R*C 20= 100* C=0.2F 3) Set the...
Guaranteed thumbs up if all is complete. Thanks in advance!
28. An RC circuit is connected to a 12.0 V battery at t=0 s and the capacitor voltage is monitored as a function of time. This cap is charging! a) Att = 0.147 s, the capacitor voltage is 20.0% of the battery voltage. What is the RC time constant? b) When will the capacitor be charged to 99.0% of the battery voltage? c) If the cap has value 2.0 mF,...
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF) in series with a resistor (R = 2800 ), a battery (ε = 6.0 V) and an open switch. What is the time needed after the switch is closed for the voltage across the capacitor to reach 4.1 V? 4.8 ms 3.0 ms O 1.2 ms 2.8 ms
An RC circuit, hooked up to a battery as shown in the figure,
starts with an uncharged capacitor. The resistance in the circuit
is R = 855.0 ? the capacitor has capacitance of C = 57.0 ?F and the
battery maintains the emf of ? = 26.0 V. The switch is closed at
time t = 0.0 s and the capacitor begins to charge.
a) What is the time constant for this circuit?
4.874×10-2 s (IS CORRECT)
b) What is...
8. Capacitance in circuits, RC circuits When a voltage source Vo is applied to a capacitor in a circuit which has a resistance R, a charge Q CV will build up across the capacitor. This does not happen instantaneously, but takes some time. The charge builds up exponentially with a characteristic time r = RC. Charging: V = v. 1 - e-t/RC) Discharging: Vc = V e-t/RC Page 2 of 3 When t = RC , the exponential is lle,...
