Answer
yes it is possible to convert the S-R latch to D flip flop

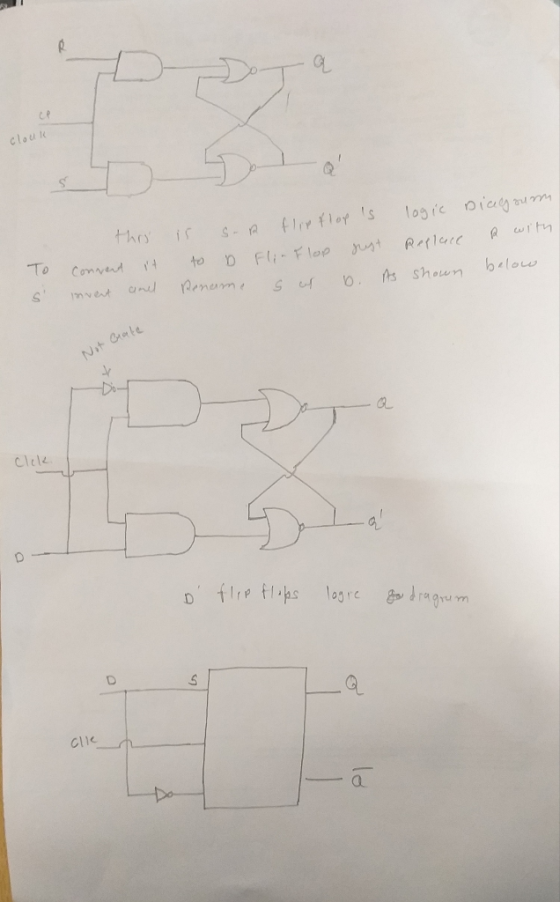

you have to just replace R input with the complement (inversion) of the old S input, and the S input has been renamed to D.
as shown in the figure below;

If you have any query regarding the answer please ask me in the
comment i am here for help you. Please do not direct thumbs down
just ask if you have any query. And if you like my work then please
appreciates with up vote. Thank You.

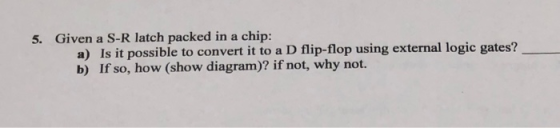

5. Given a S-R latch packed in a chip: a) Is it possible to convert it...
