a) Draw SR latch impeltation in NOR gates provied function table b) Show how D latch...

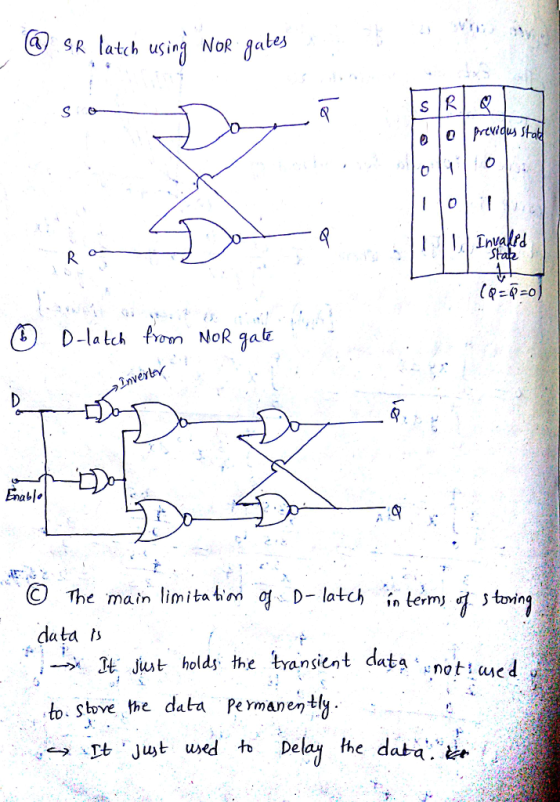

a) Draw SR latch impeltation in NOR gates provied function table
b) Show how D latch (transprent) can be made from NOR gate. SR latch is transprent when it comes to storing data.
c) What is limitation of D latch in terms of storing data ? what does it achive for digital terms
d) Design a D flip flop that is -ve edge trigged using master slave combination of D latches designed in b) Inverters may be needed.
Homework Answers
Add Answer to:
a) Draw SR latch impeltation in NOR gates provied function
table
b) Show how D latch...
-Design a gated SR latch using NAND or NOR gates. -Design a negative edge D master-slave...
-Design a gated SR latch using NAND or NOR gates. -Design a negative edge D master-slave flip-flop using the SR latch designed above -Design the D-flip-flop using the “truly” edge-triggered approach using NOR gates
a) Draw an SR-latch using only NAND gates. Label each input and output, and label all...
a) Draw an SR-latch using only NAND gates. Label each input and output, and label all wires with a name if the wire does not connect to any input or output b) Describe the behavior of the latch when S and R are both 0. What is the output of each gate? c) Assuming that the latch starts with S = R = 0, write down the sequence of what happens when R = 1. Discuss changes at each point...
Use the gated SR latch design with only NAND gates to design a gated SR flip–flop....
Use the gated SR latch design with only NAND gates to design a gated SR flip–flop. The stored bit Q can only change on the positive edge (rising edge) of the clock cycle. Draw the circuit using only logic gates and create a symbol for the flip–flop you designed.
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop....
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
7. Construct the D-flip-flop with positive-edge triggering and asynchronous Clear (active-low). I...
7. Construct the D-flip-flop with positive-edge triggering and asynchronous Clear (active-low). Implement the Master-Slave design with two gated D-latches from problem 6 as building blocks and inverters. a) b) Show the schematic. Complete the waveform template below (neglect the propagation delays). Qm and Q are the outputs of the Master and Slave D-latches, respectively. The initial state is unknown. CLK CLK bar CLEAR Qm
7. Construct the D-flip-flop with positive-edge triggering and asynchronous Clear (active-low). Implement the Master-Slave design with...
QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the...
QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the latches output can change only near the rising edge of the clock True False QUESTION 8 Assuming zero setup and hold times, clocked latches and flip-flops produce the same outputs as long as the inputs do not change while the clock is asserted True False QUESTIONS An edge-triggered D flip-flop requires more internal gates than a similar device constructed from a J-K master-slave flip...
1- A) The SR latch is different from combinational circuits because it preserves state. That is,...
1- A) The SR latch is different from combinational circuits because it preserves state. That is, unlike combinational circuits, if the inputs change, the circuit keeps its present state. Say that the present state of the SR latch is “set”. We change the values on the two input pins, and the state does not change. What is the value on those input pins? 1- B) Assume that you have a D flip-flop module available to you. Treat it like a...
What is the term for a set of flip-flops and the gates that implement their state...
What is the term for a set of flip-flops and the gates that implement their state transitions? 1. (a) Full Adder 2. (b) Moore machine 3. (c) Register 4. (d) Decoder 5. (e) None of (a) through (d) is the correct answer. A D flip-flop has a D latch and a SR latch. The D latch is connected directly to the clock (no inverter). This type of flip-flop will be able to change state when the clock is 1. (a)...
please solve this ASAP 4. (2.5pt) Latches A. (PDF) Implement a D flip-flop using 2 Dlatches...
please solve this ASAP
4. (2.5pt) Latches A. (PDF) Implement a D flip-flop using 2 Dlatches without any SR nor SR latches, by drawing the circuit diagram by hand. (1pt) I B. Consider the standard latch implementation using logical gates as we've covered in class, discuss whether this alternative implementation is superior to the D-SR master-slave implementation approach in the box below. (0.5pt) Har.. meetings M Mathway | Algebra... assign mooodle CSCI 150: Introducti... Application Detail- WhatsApp C. (PDF) Extend...
Done 01. When an inverter is placed between both inputs of an SR. flip-lop, the resulting flip-fo...
digital system solve Q3andQ4
Done 01. When an inverter is placed between both inputs of an SR. flip-lop, the resulting flip-fop is a (a) JK flip-flop (b) T flip-lop (c) Master Slave JK flip-flop (d) D flip-flop 02. A D flip-flop utilizing a Positive-Giate-Triggered (PGT) Clock is in the CLEAR" stae Which of the following input actions will cause it to change states? NGT stands for Negative-Gate-Triggered (a) CLOCK-NGT, D-O (b) CLOCK-PGT, D- (c) CLOCK- NGT: D- (d) CLOCK- PGT,...
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
7. Construct the D-flip-flop with positive-edge triggering and asynchronous Clear (active-low). Implement the Master-Slave design with two gated D-latches from problem 6 as building blocks and inverters. a) b) Show the schematic. Complete the waveform template below (neglect the propagation delays). Qm and Q are the outputs of the Master and Slave D-latches, respectively. The initial state is unknown. CLK CLK bar CLEAR Qm
7. Construct the D-flip-flop with positive-edge triggering and asynchronous Clear (active-low). Implement the Master-Slave design with...
QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the latches output can change only near the rising edge of the clock True False QUESTION 8 Assuming zero setup and hold times, clocked latches and flip-flops produce the same outputs as long as the inputs do not change while the clock is asserted True False QUESTIONS An edge-triggered D flip-flop requires more internal gates than a similar device constructed from a J-K master-slave flip...
please solve this ASAP
4. (2.5pt) Latches A. (PDF) Implement a D flip-flop using 2 Dlatches without any SR nor SR latches, by drawing the circuit diagram by hand. (1pt) I B. Consider the standard latch implementation using logical gates as we've covered in class, discuss whether this alternative implementation is superior to the D-SR master-slave implementation approach in the box below. (0.5pt) Har.. meetings M Mathway | Algebra... assign mooodle CSCI 150: Introducti... Application Detail- WhatsApp C. (PDF) Extend...
digital system solve Q3andQ4
Done 01. When an inverter is placed between both inputs of an SR. flip-lop, the resulting flip-fop is a (a) JK flip-flop (b) T flip-lop (c) Master Slave JK flip-flop (d) D flip-flop 02. A D flip-flop utilizing a Positive-Giate-Triggered (PGT) Clock is in the CLEAR" stae Which of the following input actions will cause it to change states? NGT stands for Negative-Gate-Triggered (a) CLOCK-NGT, D-O (b) CLOCK-PGT, D- (c) CLOCK- NGT: D- (d) CLOCK- PGT,...
