-Design a gated SR latch using NAND or NOR gates. -Design a negative edge D master-slave...

Question

Question

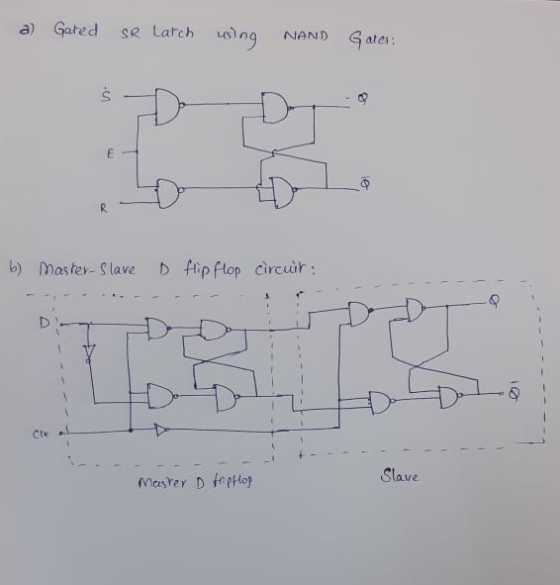

-Design a gated SR latch using NAND or NOR gates.

-Design a negative edge D master-slave flip-flop using the SR latch designed above

-Design the D-flip-flop using the “truly” edge-triggered approach using NOR gates

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Use the gated SR latch design with only NAND gates to design a gated SR flip–flop....

Use the gated SR latch design with only NAND gates to design a gated SR flip–flop. The stored bit Q can only change on the positive edge (rising edge) of the clock cycle. Draw the circuit using only logic gates and create a symbol for the flip–flop you designed.
a) Draw SR latch impeltation in NOR gates provied function table b) Show how D latch...

a) Draw SR latch impeltation in NOR gates provied function table b) Show how D latch (transprent) can be made from NOR gate. SR latch is transprent when it comes to storing data. c) What is limitation of D latch in terms of storing data ? what does it achive for digital terms d) Design a D flip flop that is -ve edge trigged using master slave combination of D latches designed in b) Inverters may be needed.
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop....

a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...

This is a positive-edge-triggered master-slave D flip-flop. Change this circuit to a negative-edge-triggered master-slave D flip-flop....

This is a positive-edge-triggered master-slave D flip-flop. Change this circuit to a negative-edge-triggered master-slave D flip-flop. Clock a. <Pre-Lab>Draw the logic circuit.
a) Draw an SR-latch using only NAND gates. Label each input and output, and label all...

a) Draw an SR-latch using only NAND gates. Label each input and output, and label all wires with a name if the wire does not connect to any input or output b) Describe the behavior of the latch when S and R are both 0. What is the output of each gate? c) Assuming that the latch starts with S = R = 0, write down the sequence of what happens when R = 1. Discuss changes at each point...
Part 4: Master-slave D Flip-flop 1. Build the master-slave D flip-flop shown in Figure 6, then...

Part 4: Master-slave D Flip-flop 1. Build the master-slave D flip-flop shown in Figure 6, then complete the corresponding table and output waveforms. Clock Figure 6: Master-Slave Flip Flop from basic gates Clock lē State 1 Figure 7 3. Disassemble the above circuit then using one of the D flip flops of the 74L$74 dual D positive edge-triggered IC to fill the following table. PR CLR Clock D e e State X 10XX о то x x 11 O

Appreciate your help, This is a positive-edge-triggered master-slave D flip-flop. Dİ@ Clock Change this circuit to...

Appreciate your help, This is a positive-edge-triggered master-slave D flip-flop. Dİ@ Clock Change this circuit to a negative-edge-triggered master-slave D flip-flop. a. b. <Pre-Lab> <Pre-Lab> Draw the logic circuit. Draw the wiring diagram.
QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the...

QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the latches output can change only near the rising edge of the clock True False QUESTION 8 Assuming zero setup and hold times, clocked latches and flip-flops produce the same outputs as long as the inputs do not change while the clock is asserted True False QUESTIONS An edge-triggered D flip-flop requires more internal gates than a similar device constructed from a J-K master-slave flip...
5.4 2um 4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data,...

5.4 2um 4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data, Clock, and Enable. If, at the negative edge of the clock, the enable input equals to 0, then the state at Data input is stored in the flip-flop. If, at the negative edge of clock, Enable is in 1 state, then the current stored value in the flip-flop is held. Design the flip-flop using only SR latches, AND gates, and NOT gates. 4-34. Design...

Design a positive-edge T flip-flop using a positive-edge-triggered D flip-flop and other logic gates.

Design a positive-edge T flip-flop using a positive-edge-triggered D flip-flop and other logic gates.
