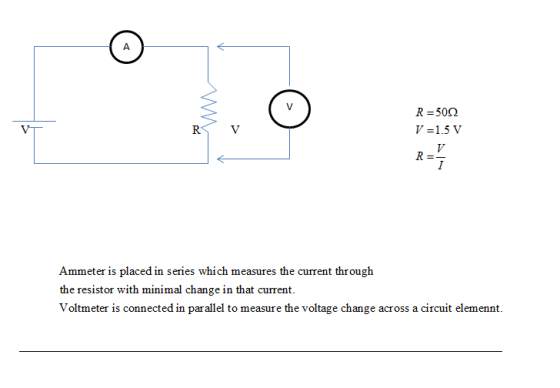

I need help with this question: A 50-ohm device is connected to a 1.5-volt battery. Draw...
Homework Answers
Add Answer to:
I need help with this question:
A 50-ohm device is connected to a 1.5-volt battery. Draw...
A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of...
A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of internal resistance 0.570 Ohm measures the current and at the same time a voltmeter with internal resistance 15.2 kilo-Ohm measures the voltage across one of the 7.70 kilo-Ohm resistors in the circuit. What does the ammeter read? What does the voltmeter read?
You have a 10 ohm resistor connected in series with an ammeter. The voltage applied to...
You have a 10 ohm resistor connected in series with an ammeter. The voltage applied to the whole circuit is 1.2 volts. At the same time you have a voltmeter connected across the 10 ohm resistor and voltmeter reads 0.9 volts. The circuit draws a total of 0.5 amps. Can you determine resistance of the ammeter?
What is the Kirchhoff's junction rule equation for this junction? A 10-V-emf battery is connected in...
What is the Kirchhoff's junction rule equation for this junction? A 10-V-emf battery is connected in series with the following: a 2-mu F capacitor, a 2-Ohm resistor, an ammeter, and a switch, initially open; a voltmeter is connected in parallel across the capacitor. After the switch has been closed for a relatively long period (several seconds, say), what are the current and capacitor voltage readings, respectively? A resistor, inductor, battery, and switch are all hooked up in series. Draw a...
Example 23.2: A 3.42 nF capacitor is connected to a 36.0 ohm resistor, a 6 volt...
Example 23.2: A 3.42 nF capacitor is connected to a 36.0 ohm resistor, a 6 volt battery and an open switch. A) Find the time constant for the RC circuit. B) What is the initial current through the battery when the switch is closed? C) After a long time, what is the potential difference across the capacitor, and across the resistor?
6. A three-ohm resistor and a four-ohm resistor are connected in series to a battery. In...
6. A three-ohm resistor and a four-ohm resistor are connected in series to a battery. In a separate circuit, a three-ohm resistor and a four-ohm resistor are connected in parallel to a battery with the same battery voltage as in the first circuit. Which resistor will have the largest amount of current flowing through it? A. The three-ohm resistor in the series circuit. B. The four-ohm resistor in the series circuit. C. The three-ohm resistor and the four-ohm resistor in...
Please help 3. The circuit below contains four identical bulbs and an ideal 1.5 volt battery...
Please
help
3. The circuit below contains four identical bulbs and an ideal 1.5 volt battery B. a. Rank the brightness's of all four bulbs in the circuit. If any of the bulbs have equal brightness, state that explicitly. Explain your reasoning b. A voltmeter is placed across bulb D and the reading on the voltmeter is 0.6 V. What wi the voltmeter read when placed over the remaining three bulbs? Enter your answers in th space provided and explain...
A battery with E = 12.0 V and internal resistance r=1.2Ω is connected to two 8.5-kΩ...
A battery with E = 12.0 V and internal resistance r=1.2Ω is connected to two 8.5-kΩ resistors in series. An ammeter of internal resistance 0.30 Ωmeasures the current, and at the same time a voltmeter with internal resistance 17 kΩ measures the voltage across one of the 8.5-kΩ resistors in the circuit. What does the ammeter read? What does the voltmeter read? What is the % "error" from the current without meters? What is the % "error" from the voltage...
In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm...
In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm resistor is 27.0 V. what are the emf of the battery and the current through the 6.00-Ohm resistor? (Let R2 = 1.00 Ohm) Epsilon = _____ V I = __________ A A capacitor is charged to a potential of 13.0 V and is connected to a voltmeter having an internal resistance of 3.45 Mohm. After a time of 3.50 s the voltmeter reads 3.0...
Example # 22.1: A 6.0 volt battery is connected to a 3.0 ohm resistor for 1...
Example # 22.1: A 6.0 volt battery is connected to a 3.0 ohm resistor for 1 hour. A) Find the current through the resistor. B) Find the total charge that passes through the resistor. Example # 22.2: Find the resistance of a nichrome wire that is 2.5 m long and has a diameter of 2.0 mm. The resistivity of nichrome is 1.5 x 10 . Example # 22.3: A) Find the power output of the battery in 22.1. B) Find...
A 24-volt battery is connected to four 25-watt light bulbs in parallel. a. Draw a diagram...
A 24-volt battery is connected to four 25-watt light bulbs in parallel. a. Draw a diagram of this circuit b. Find the voltage across each light bulb c. Find the current in each light bulb d. Find the resistance in each light bulb
What is the Kirchhoff's junction rule equation for this junction? A 10-V-emf battery is connected in series with the following: a 2-mu F capacitor, a 2-Ohm resistor, an ammeter, and a switch, initially open; a voltmeter is connected in parallel across the capacitor. After the switch has been closed for a relatively long period (several seconds, say), what are the current and capacitor voltage readings, respectively? A resistor, inductor, battery, and switch are all hooked up in series. Draw a...
Please
help
3. The circuit below contains four identical bulbs and an ideal 1.5 volt battery B. a. Rank the brightness's of all four bulbs in the circuit. If any of the bulbs have equal brightness, state that explicitly. Explain your reasoning b. A voltmeter is placed across bulb D and the reading on the voltmeter is 0.6 V. What wi the voltmeter read when placed over the remaining three bulbs? Enter your answers in th space provided and explain...
In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm resistor is 27.0 V. what are the emf of the battery and the current through the 6.00-Ohm resistor? (Let R2 = 1.00 Ohm) Epsilon = _____ V I = __________ A A capacitor is charged to a potential of 13.0 V and is connected to a voltmeter having an internal resistance of 3.45 Mohm. After a time of 3.50 s the voltmeter reads 3.0...
Example # 22.1: A 6.0 volt battery is connected to a 3.0 ohm resistor for 1 hour. A) Find the current through the resistor. B) Find the total charge that passes through the resistor. Example # 22.2: Find the resistance of a nichrome wire that is 2.5 m long and has a diameter of 2.0 mm. The resistivity of nichrome is 1.5 x 10 . Example # 22.3: A) Find the power output of the battery in 22.1. B) Find...
