Homework Answers
Add Answer to:
A parallel-plate capacitor has capacitance 7.90 pF when there is air between the plates. The separation...
A parallel-plate capacitor has capacitance Co = 8.30 pF when there is air between the plates....
A parallel-plate capacitor has capacitance Co = 8.30 pF when there is air between the plates. The separation between the plates is 1.60 mm Review Constants What is the maximum magnitude of charge that can be placed on each plate if the electric field in the region between the plates is not to exceed 3.00x104 V/m ? Express your answer with the appropriate units. Part B A dielectric with K = 3.10 is inserted between the plates of the capacitor,...

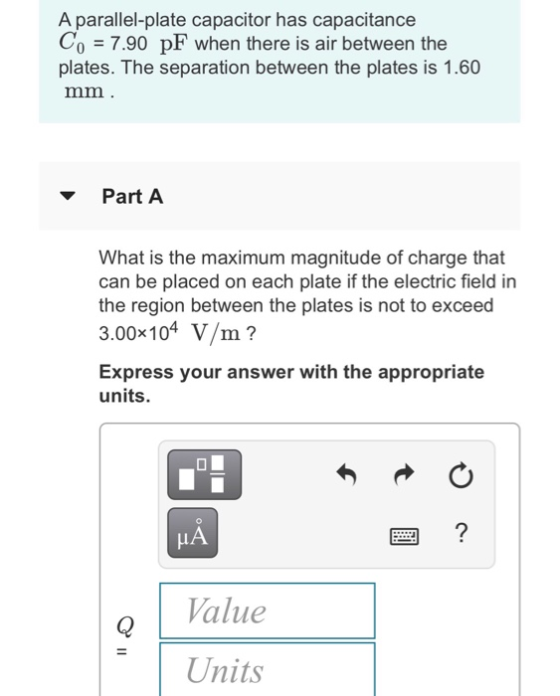

A parallel-plate capacitor has capacitance C0 = 7.90 pF when there is air between the plates....
A parallel-plate capacitor has capacitance C0 = 7.90 pF when there is air between the plates. The separation between the plates is 1.60 mm . A dielectric with K = 3.30 is inserted between the plates of the capacitor, completely filling the volume between the plates. Now what is the maximum magnitude of charge on each plate if the electric field between the plates is not to exceed 3.00×104 V/m ? Express your answer with the appropriate units.
A parallel-plate capacitor has capacitance C0 = 8.30 pF when there is air between the plates....
A parallel-plate capacitor has capacitance C0 = 8.30 pF when there is air between the plates. The separation between the plates is 2.00 mm a-What is the maximum magnitude of charge that can be placed on each plate if the electric field in the region between the plates is not to exceed 3.00×104 V/m ?(Express your answer with the appropriate units.) b-A dielectric with K = 2.80 is inserted between the plates of the capacitor, completely filling the volume between...
A parallel-plate capacitor has capacitance C0 = 7.00 pF when there is air between the plates. The separation between the plates is 1.10 mm.
A parallel-plate capacitor has capacitance C0 = 7.00 pF when there is air between the plates. The separation between the plates is 1.10 mm. a. What is the maximum magnitude of charge Q that can be placed on each plate if the electric field in the region between the plates is not to exceed 3.00 x 104 V/m? b. A dielectric with K = 2.60 is inserted between the plates of the capacitor, completely filling the volume between the plates. Now...
A parallel-plate capacitor has capacitanceC0 = 7.80 pF when there is air between the plates. The...
A parallel-plate capacitor has capacitanceC0 = 7.80 pF when there is air between the plates. The separation between the plates is 1.10 mm . What is the maximum magnitude of charge that can be placed on each plate if the electric field in the region between the plates is not to exceed 3.00×104 V/m ? A dielectric with K = 2.80 is inserted between the plates of the capacitor, completely filling the volume between the plates. Now what is the...
3. A parallel-plate capacitor has capacitance C -8.40 pF. The separation between the plates is 1.30...
3. A parallel-plate capacitor has capacitance C -8.40 pF. The separation between the plates is 1.30 mm. If the electric field in the region between the plates is 1.5x104 V/m, the magnitude of charge that can be placed on each plate is 164 pc O 560 pc 210 pc O 82 pc O 328 pc
A parallel-plate air capacitor with a capacitance of 244 pF has a charge of magnitude 0.137...
A parallel-plate air capacitor with a capacitance of 244 pF has a charge of magnitude 0.137 mu C on each plate. The plates have a separation of 0.265 mm. What is the potential difference between the plates? What is the area of each plate? Use 8.85 times 10^-12 F/m for the permittivity of free space. What is the electric field magnitude between the plates? What is the surface-charge density on each plate?
An air-filled parallel-plate capacitor has a capacitance of 1.2 pF. The separation of the plates is...
An air-filled parallel-plate capacitor has a capacitance of 1.2 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 1.8 pF. Find the dielectric constant of the wax.
An air-filled parallel-plate capacitor has a capacitance of 1.4 pF. The separation of the plates is...
An air-filled parallel-plate capacitor has a capacitance of 1.4 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 2.1 pF. Find the dielectric constant of the wax.
A parallel-plate air capacitor has a capacitance of 300 pF and a charge of magnitude 0.150...
A parallel-plate air capacitor has a capacitance of 300 pF and a charge of magnitude 0.150 μC on each plate. The plates are 0.500 mm apart. A. What is the potential difference between the plates? Answer: V=500V B. What is the area of each plate? C. What is the electric-field magnitude between the plates? D. What is the surface charge density on each plate?
A parallel-plate capacitor has capacitance Co = 8.30 pF when there is air between the plates. The separation between the plates is 1.60 mm Review Constants What is the maximum magnitude of charge that can be placed on each plate if the electric field in the region between the plates is not to exceed 3.00x104 V/m ? Express your answer with the appropriate units. Part B A dielectric with K = 3.10 is inserted between the plates of the capacitor,...
3. A parallel-plate capacitor has capacitance C -8.40 pF. The separation between the plates is 1.30 mm. If the electric field in the region between the plates is 1.5x104 V/m, the magnitude of charge that can be placed on each plate is 164 pc O 560 pc 210 pc O 82 pc O 328 pc
A parallel-plate air capacitor with a capacitance of 244 pF has a charge of magnitude 0.137 mu C on each plate. The plates have a separation of 0.265 mm. What is the potential difference between the plates? What is the area of each plate? Use 8.85 times 10^-12 F/m for the permittivity of free space. What is the electric field magnitude between the plates? What is the surface-charge density on each plate?
