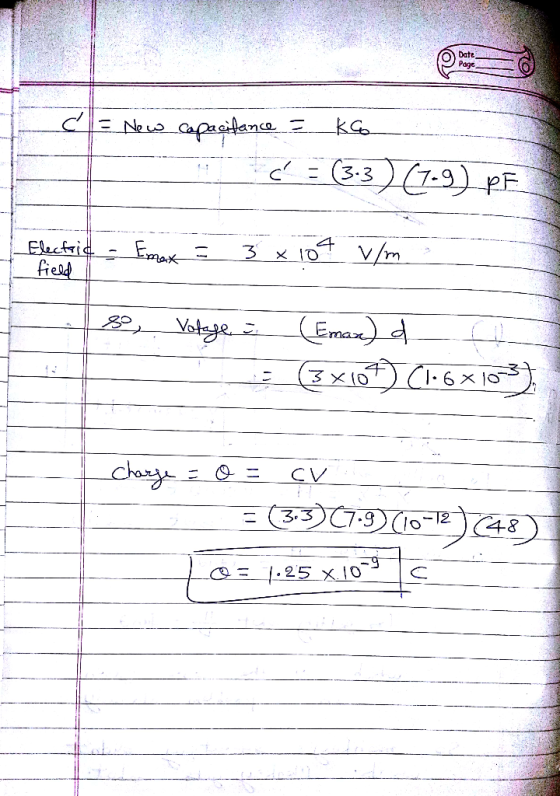

A parallel-plate capacitor has capacitance C0 = 7.90 pF when there is air between the plates....
A parallel-plate capacitor has capacitance C0 = 7.90 pF when there is air between the plates. The separation between the plates is 1.60 mm .
A dielectric with K = 3.30 is inserted between the plates of the capacitor, completely filling the volume between the plates. Now what is the maximum magnitude of charge on each plate if the electric field between the plates is not to exceed 3.00×104 V/m ?
Express your answer with the appropriate units.
