A general design rule for microwave links is 55% clearance of the first Fresnel zone. For...

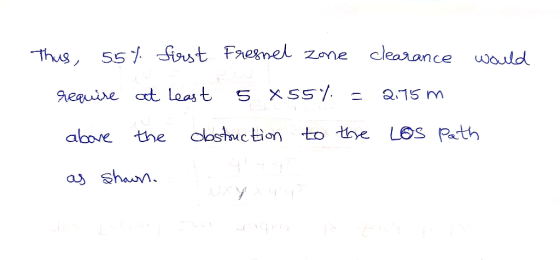

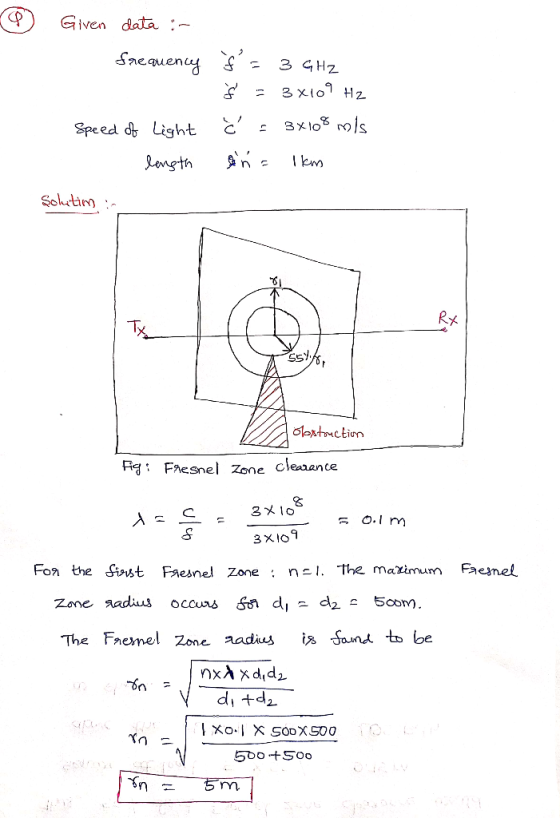

A general design rule for microwave links is 55% clearance of the first Fresnel zone. For a 1 km link at 3 GHz, what is the maximum first Fresnel zone radius? What clearance is required for this system?
Homework Answers
