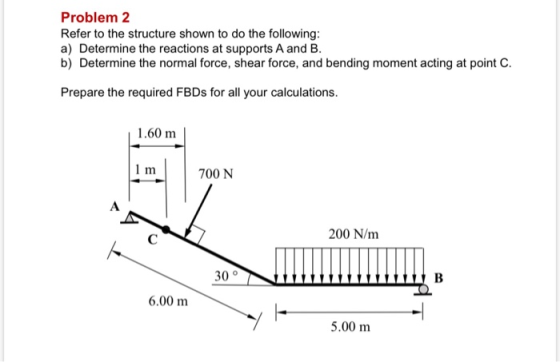

Problem 2 Refer to the structure shown to do the following: a) Determine the reactions at...

Question

Question

science physics

Answer 1

Answer #1

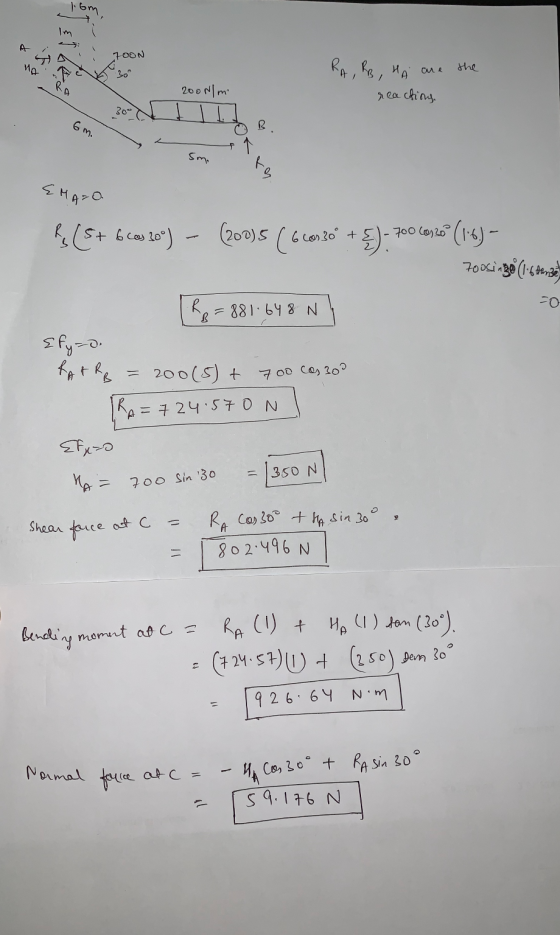

lom 700N 3. RA, RB, H cue the 200 N/m reactions 300 6 m. B Sm. g EMASO ļ (5+ 6 cas 10) (200)5 (6c0930 + 3)-700 (33 700 coy

Answer 2

Similar Homework Help Questions

Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram...

Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram (4 marks) c) Axial force diagram(4 marks) d) Bending moment diagram (4 marks) Question 1 (20 marks) Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram (4 marks) c) Axial force diagram(4 marks) d) Bending moment diagram (4 marks) 25 kN/m 2C 3 m D 4 m 6 m Show your computations in the solution book then...
Problem 2: For the beams shown below: 1-Calculate the reactions at the supports. 2- Draw the...

Problem 2: For the beams shown below: 1-Calculate the reactions at the supports. 2- Draw the shear force) and the bending moment diagrams. Indicate all critical values. 800 N Internal hinge 200 N.m 4 m 120 N/m Beam A 8 m 100 KN Internal hinge 20 KN/mm 10m ←ㅡㅡㅡ + + 5 m ㅡㅡ 10m ㅡ ㅡ Beam B
1) Determine the reactions at the supports for the structures shown. The support at A is...

1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...

Using force method , determine the reactions of the supports for the beam shown in Figure...

Using force method , determine the reactions of the supports for the beam shown in Figure ( 5 ) . Then draw shear and bending moment diagrams for the beam El is constant Use conjugate beam method to determine deflections , 6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
asap Q5: Using force method, determine the reactions of the supports for the beam shown in...

asap Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. EI is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 9 m 3 m Fig. (5)
H a) Calculate the reactions forces at the supports A and D. b) Use Macaulay notation...

H a) Calculate the reactions forces at the supports A and D. b) Use Macaulay notation to find equations for the shear force and the bending moment (M) c) Draw the shear force diagram, either by inspection or by using equations from part b). d) Draw the bending moment diagram, either by inspection or by using equations from part b) e) Determine the maximum value of the bending moment (M), and where on the beam it occurs. The length of...

beam problem QUESTION 6: Draw the free body diagram of the beam shown below and determine...

beam problem QUESTION 6: Draw the free body diagram of the beam shown below and determine the reactions and formulate the shear-force and bending moment equations for the beam. Sketch the shear and moment diagrams: Type your answers and intermediate calculations on the screen on the blackboard 400 N 100 N/m A 4 m 4 m
For the beam and loading shown in Figure A2: - a. Determine the support reactions b....

For the beam and loading shown in Figure A2: - a. Determine the support reactions b. Draw the shear and bending moment diagrams c. Determine the maximum absolute value of shear force and bending moment P= 100 N P= 140 N w = 30 N/m A B 4 m 7 m 10 m 3 Figure A2.
make sure not to copy previous work For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the shear force and the...

make sure not to copy previous work For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the shear force and the bending moment diagrams 2 KN 3 KN 2 m 2 m 3 m 4 m For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the...

Chapter 12 File Edit View Help Problem 2 Do not round intermediate answers. Give your final answe...

could you show how the moment at point D effects the shear-moment diagram please? Chapter 12 File Edit View Help Problem 2 Do not round intermediate answers. Give your final answer(s) to three decimal places. Check your units (of 20) aw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum value (inchuding the sign) ent is (a) of the shear, and b) of the bending moment I n ben V (max)- 12.778 M (max)...
