Homework Answers
Add Answer to:

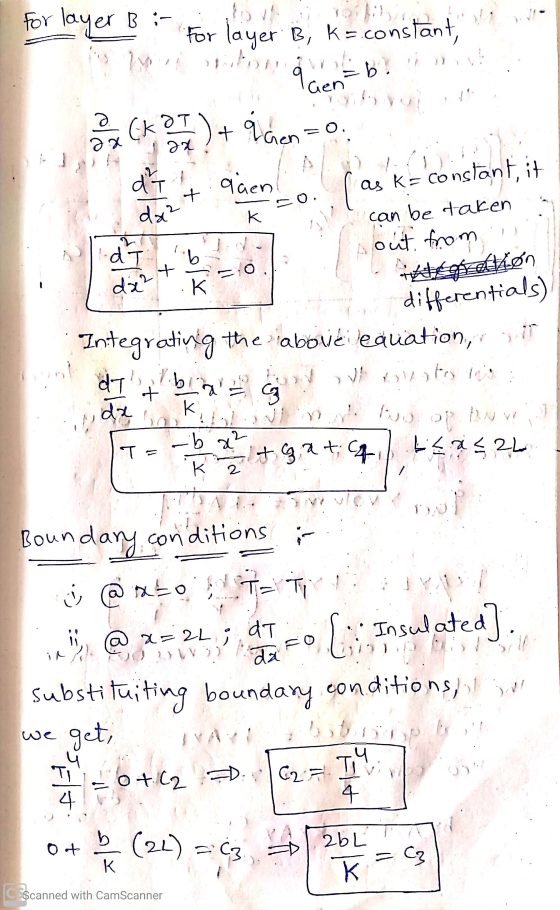

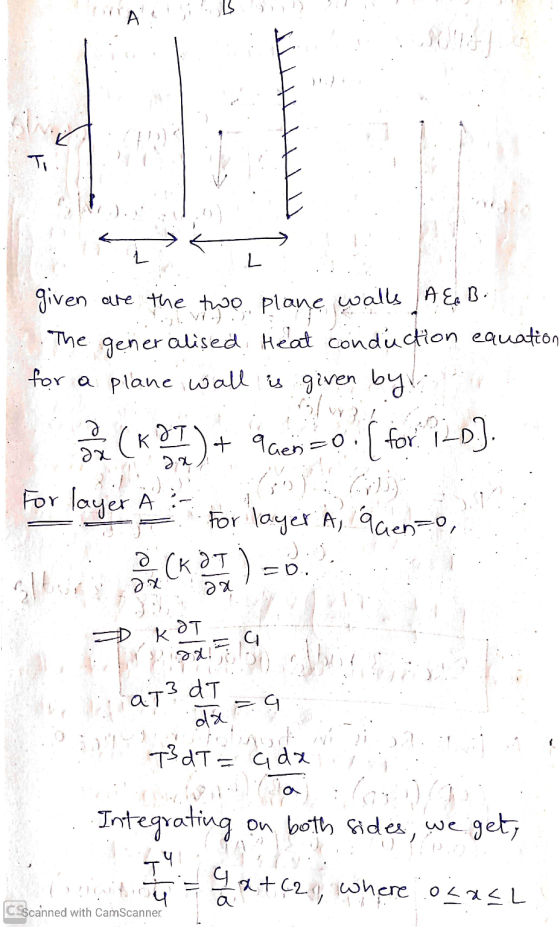

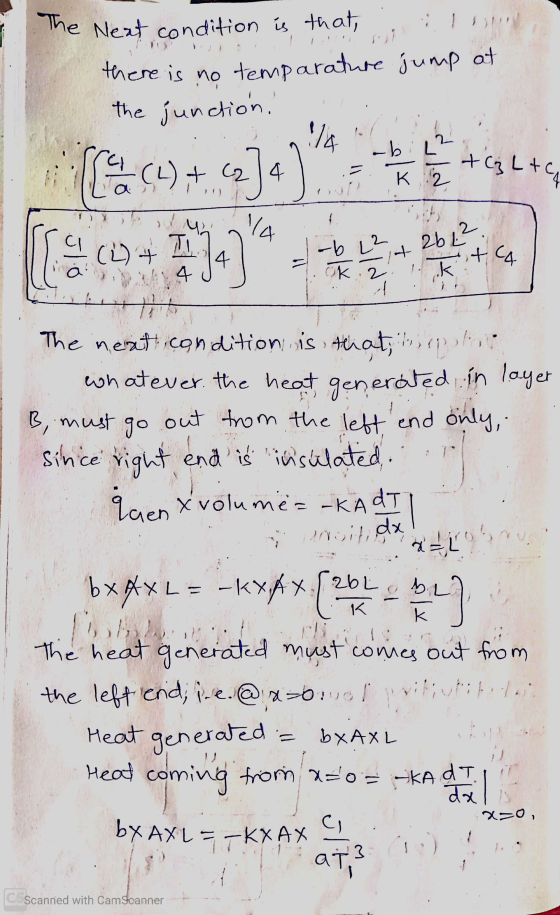

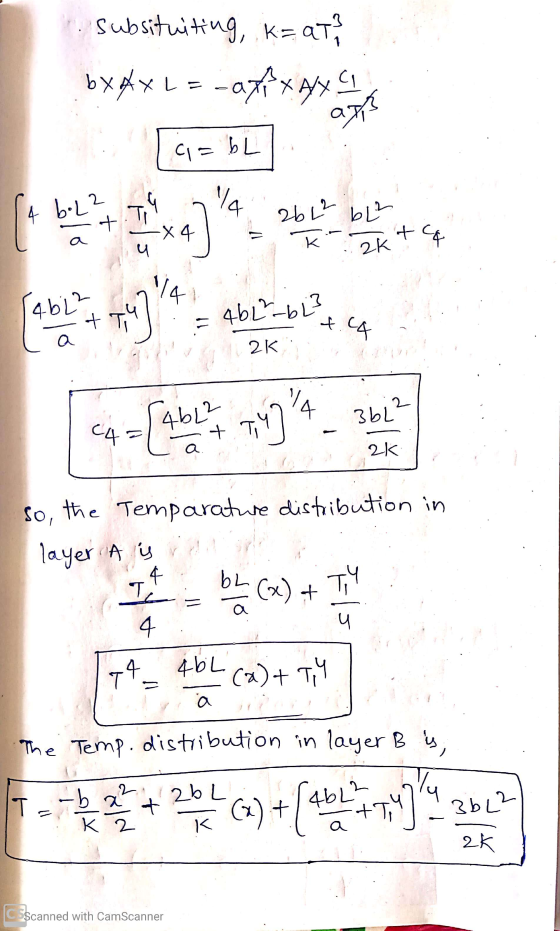

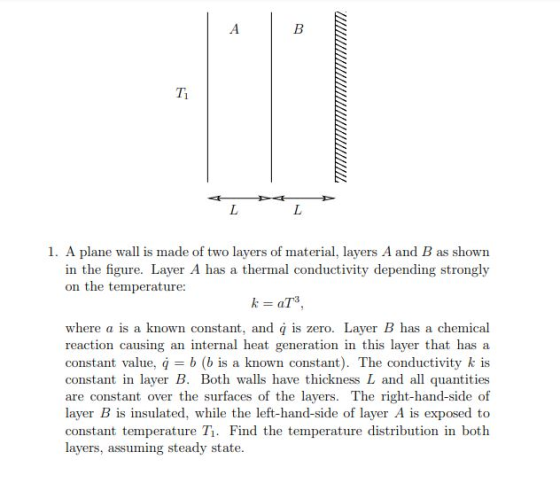

LL 1. A plane wall is made of two layers of material, layers A and B...
A plane wall of thickness L has constant thermal conductivity, k, uniform generation throughout, q, and...
A plane wall of thickness L has constant thermal conductivity, k, uniform generation throughout, q, and is insulated on one side, at x-0. Only the outer surface temperature (Ts) is known. (a) Derive an equation describing the steady-state wall temperature at any point (x), when given the outer wall surface temperature, Tsi. (b) If L-15 cm, k: 3.4 W/m"K, q-10 kW/m3, and Ts1-300 K, what is the steady-state temperature at x - 6 cm (in K)? S1
Reviewer Score 3. A plane wall of thickness 0.12m and thermal conductivity 40W/m K having uniform volumetric ene...
Reviewer Score 3. A plane wall of thickness 0.12m and thermal conductivity 40W/m K having uniform volumetric energy generation of 0.4MW/m3 is insulated on one side, while the other side is exposed to a fluid at 52 C. The convection heat transfer coefficient between the wall and the fluid is 400W/m2-K. Determine the (20 scores) maximum temperature in the wall. 4. r,rod OA rotates with uniform o o. At the moment, AB- 6r Signatory Score leration of block B at...
A plane wall with thermal conductivity of k, is insulated on one side and is exposed...
A plane wall with thermal conductivity of k, is insulated on one side and is exposed to ambient air at To and convection coefficient of h, on the other side. A heat source in the 3) wall is generating a uniform heat rate per unit volume of For one-dimensional steady-state conduction in the wall, derive a proper differential equation for the temperature by either using the heat equations or doing the energy balance. Identify proper boundary conditions and find the...
A plane wall is composed of two materials. Material A has a uniform heat generation of...
A plane wall is composed of two materials. Material A has a uniform heat generation of 100 kW/m3, a thermal conductivity of 50 W/mK, and a thickness of 10 cm. The inner surface of material A is well insulated. The other surface of material A is connected to Material B which has no generation with a thermal conductivity of 100 W/mK and a thickness of 20 cm. The outer surface of material B is cooled by ambient air at 300...
A plane wall of thickness 2L= 30 mm and thermal conductivity k= 3 W/m·K experiences uniform...
A plane wall of thickness 2L= 30 mm and thermal conductivity k= 3 W/m·K experiences uniform volumetric heat generation at a rate q˙, while convection heat transfer occurs at both of its surfaces (x=-L, +L), each of which is exposed to a fluid of temperature ∞T∞= 20°C. Under steady-state conditions, the temperature distribution in the wall is of the form T(x)=a+bx+cx2 where a= 82.0°C, b= -210°C/m, c= -2 × 104°C/m2, and x is in meters. The origin of the x-coordinate...
Consider two blocks A and B that are insulated from all sides except the right side....
Consider two blocks A and B that are insulated from all sides except the right side. There is internal heat generation (qa= 104 W/m²) in block A but not in block B. Block B which is in perfect thermal contact with block A is exposed to a fluid at temperature Ta=25C and heat transfer coefficient h= 10 W/m²C. The thickness of block B is LB= 20cm and that of block Ais La=10cm. The thermal conductivity of block B is 5...
A planar wall is composed of two materials, wall 1 has a uniform heat generation of...
A planar wall is composed of two materials, wall 1 has a uniform heat generation of 1.5 x 106 W/m3 and a thermal conductivity of 60 Wm.Κ. Wall 2 has no heat generation and thermal resistance of 150 W/m.K. The inner surface of Wall 1 is well insulated, while the outer surface of Wall 2 is exposed to 30°C fluld. The temperature of the wall surface exposed to the fluid is most nearly 00 heat flow fluid at 30°C h...
3.68 Consider o conduction in a plane com- posite wall. The outer surfaces are exposed to...
3.68 Consider o conduction in a plane com- posite wall. The outer surfaces are exposed to a fluid at 25°C and a convection heat transfer coefficient of 1000 Wim K. The generation q8, while there is no generation in walls A and C. The temperatures at 261°C and T2-211 C. middle wall B experiences uniform heat the interfaces are T, T. 9a k,-25 W/rm-K LA = 30 mm c-50 W/m-K L 30 mm L 20 mnm (a) Assuming negligible contact...
Consider a pipe consisting of two layers: Consider a pipe consisting of two layers: • an...
Consider a pipe consisting of two layers:
Consider a pipe consisting of two layers: • an inner layer of AISI 1010 steel with thickness 2 cm, and • an outer layer of insulation (k = 0.034 W/(m · K)) with thickness 4 cm The pipe's contents keep the inner surface at a constant temperature of 120 °C, while the outside experiences convection with overall convection coefficient h 30 W/(m²K) to the surroundings at T = 25°C. The pipe's inner diameter...
A planar material can be modeled as 1-dimensional with thickness L = 2m. On one boundary...
A planar material can be modeled as 1-dimensional with thickness L = 2m. On one boundary (x=0), the surface is held at a fixed temperature Ts = 20°C. the other boundary is perfectly insulated. There is a constant thermal conductivity k = 40 W/mK and the material is being heated internally. The system is at steady state. a) write an expression for each of the two boundary conditions b) If the volumetric heat generation is equal to q.= 10 W/m3....
A plane wall of thickness L has constant thermal conductivity, k, uniform generation throughout, q, and is insulated on one side, at x-0. Only the outer surface temperature (Ts) is known. (a) Derive an equation describing the steady-state wall temperature at any point (x), when given the outer wall surface temperature, Tsi. (b) If L-15 cm, k: 3.4 W/m"K, q-10 kW/m3, and Ts1-300 K, what is the steady-state temperature at x - 6 cm (in K)? S1
Reviewer Score 3. A plane wall of thickness 0.12m and thermal conductivity 40W/m K having uniform volumetric energy generation of 0.4MW/m3 is insulated on one side, while the other side is exposed to a fluid at 52 C. The convection heat transfer coefficient between the wall and the fluid is 400W/m2-K. Determine the (20 scores) maximum temperature in the wall. 4. r,rod OA rotates with uniform o o. At the moment, AB- 6r Signatory Score leration of block B at...
A plane wall with thermal conductivity of k, is insulated on one side and is exposed to ambient air at To and convection coefficient of h, on the other side. A heat source in the 3) wall is generating a uniform heat rate per unit volume of For one-dimensional steady-state conduction in the wall, derive a proper differential equation for the temperature by either using the heat equations or doing the energy balance. Identify proper boundary conditions and find the...
A plane wall is composed of two materials. Material A has a uniform heat generation of 100 kW/m3, a thermal conductivity of 50 W/mK, and a thickness of 10 cm. The inner surface of material A is well insulated. The other surface of material A is connected to Material B which has no generation with a thermal conductivity of 100 W/mK and a thickness of 20 cm. The outer surface of material B is cooled by ambient air at 300...
Consider two blocks A and B that are insulated from all sides except the right side. There is internal heat generation (qa= 104 W/m²) in block A but not in block B. Block B which is in perfect thermal contact with block A is exposed to a fluid at temperature Ta=25C and heat transfer coefficient h= 10 W/m²C. The thickness of block B is LB= 20cm and that of block Ais La=10cm. The thermal conductivity of block B is 5...
A planar wall is composed of two materials, wall 1 has a uniform heat generation of 1.5 x 106 W/m3 and a thermal conductivity of 60 Wm.Κ. Wall 2 has no heat generation and thermal resistance of 150 W/m.K. The inner surface of Wall 1 is well insulated, while the outer surface of Wall 2 is exposed to 30°C fluld. The temperature of the wall surface exposed to the fluid is most nearly 00 heat flow fluid at 30°C h...
3.68 Consider o conduction in a plane com- posite wall. The outer surfaces are exposed to a fluid at 25°C and a convection heat transfer coefficient of 1000 Wim K. The generation q8, while there is no generation in walls A and C. The temperatures at 261°C and T2-211 C. middle wall B experiences uniform heat the interfaces are T, T. 9a k,-25 W/rm-K LA = 30 mm c-50 W/m-K L 30 mm L 20 mnm (a) Assuming negligible contact...
Consider a pipe consisting of two layers:
Consider a pipe consisting of two layers: • an inner layer of AISI 1010 steel with thickness 2 cm, and • an outer layer of insulation (k = 0.034 W/(m · K)) with thickness 4 cm The pipe's contents keep the inner surface at a constant temperature of 120 °C, while the outside experiences convection with overall convection coefficient h 30 W/(m²K) to the surroundings at T = 25°C. The pipe's inner diameter...
