A coil of 35 turns is wrapped around a long solenoid of cross-sectional area 5.5 ?...
A coil of 35 turns is wrapped around a long solenoid of cross-sectional area 5.5 ? 10?3 m2. The solenoid is 0.60 m long and has 600 turns.

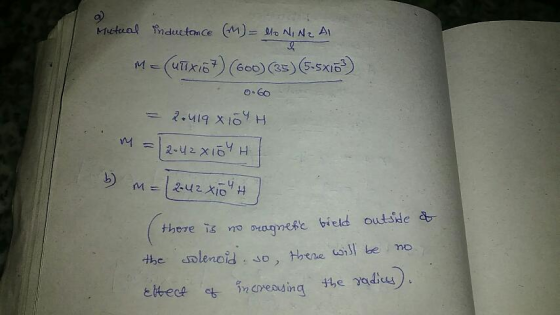

What is the mutual inductance of this system (in H)?
The outer coil is replaced by a coil of 35 turns whose radius is three times that of the solenoid. What is the mutual inductance of this configuration (in H)?
Homework Answers
