A solenoid a cross-sectional area of 5.4x10^-4 m^2, consists of 540 turns per meter, and carries...

A solenoid a cross-sectional area of 5.4x10^-4 m^2, consists of 540 turns per meter, and carries a current of 0.46 A/ A 18-turn coil is wrapped tightly around the circumference of the solenoid. The ends of the coil are connected to a 1.3 (unit) resistor. Suddenly, a switch is opened, and the current in the solenoid dies to zero in time of 0.047 S. Find the average current induced in the coil.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

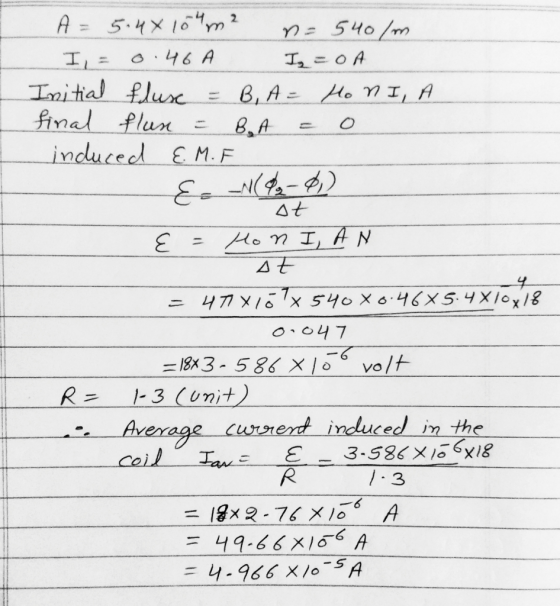

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A solenoid a cross-sectional area of 5.4x10^-4 m^2, consists of 540 turns per meter, and carries...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A toroidal solenoid has 540 turns, cross-sectional area 6.80 cm^2, and mean radius 4.20 cm. Calcualte...

    A toroidal solenoid has 540 turns, cross-sectional area 6.80 cm^2, and mean radius 4.20 cm. Calcualte the coil's self-inductance. If the current decreases uniformly from 5.00 A to 2.00 A in 3.00 ms, calculate the self-induced emf in the coil. Please help with this homework question. Thank you very much.

  • A solenoid is 1.5 m long and has 470 turns per meter. What is the cross...

    A solenoid is 1.5 m long and has 470 turns per meter. What is the cross sectional area of this solenoid if it stores .31 J of energy when it carries a current of 12 A?

  • A long solenoid has n = 380 turns per meter and carries a current given by...

    A long solenoid has n = 380 turns per meter and carries a current given by I = 34.0(1 − e−1.60t ), where I is in amperes and t is in seconds. Inside the solenoid and coaxial with it is a coil that has a radius of R = 6.00 cm and consists of a total of N = 250 turns of fine wire (see figure below). What emf is induced in the coil by the changing current? (Use the...

  • A coil of 35 turns is wrapped around a long solenoid of cross-sectional area 5.5 ?...

    A coil of 35 turns is wrapped around a long solenoid of cross-sectional area 5.5 ? 10?3 m2. The solenoid is 0.60 m long and has 600 turns. What is the mutual inductance of this system (in H)? The outer coil is replaced by a coil of 35 turns whose radius is three times that of the solenoid. What is the mutual inductance of this configuration (in H)?

  • A solenoid with a cross-sectional area of 1.16×10−3m2 is 0.770 m long and has 900 turns...

    A solenoid with a cross-sectional area of 1.16×10−3m2 is 0.770 m long and has 900 turns per meter. Part A Find the induced emf in this solenoid if the current in it is increased from 0 to 2.50 A in 31.8 ms __________mV

  • A long, current-carrying solenoid with an air core has 1800 turns per meter of length and...

    A long, current-carrying solenoid with an air core has 1800 turns per meter of length and a radius of 0.0220 m. A coil of 220 turns is wrapped tightly around the outside of the solenoid, so it has virtually the same radius as the solenoid. What is the mutual inductance of this system?

  • Part A A solenoid with 64 turns per meter, a cross sectional radius of 0.6 meters,...

    Part A A solenoid with 64 turns per meter, a cross sectional radius of 0.6 meters, and a length of 6 meters is connected in series to a 6 Ohm resistor and a battery. What is the time constant of the circuit in milli-seconds? Part Aa A 21 volt battery (DC) is connected in series to a 4 milli-henrie inductor, and a 4 ohm resistor. What is the current in the circuit, in amps, if one waits a very, very...

  • A coll of 55 turns is wrapped around a long solenoid of cross-sectional area 5.5 x...

    A coll of 55 turns is wrapped around a long solenoid of cross-sectional area 5.5 x 10"m". The solenoid is 0.40 m long and has 350 turns. (a) What is the mutual inductance of this system (In H)? (b) The outer coll is replaced by a coil of 55 turns whose radius is three times that of the solenoid. What is the mutual inductance of this configuration (in H)?

  • A very long, straight solenoid with a cross-sectional area of 6.15 cm² is wound with 48...

    A very long, straight solenoid with a cross-sectional area of 6.15 cm² is wound with 48 turns of wire per centimeter, and the windings carry a current of 0.275 A A secondary winding of 2 turns encircles the solenoid at its center. When the primary circuit is opened, the magnetic field of the solenoid becomes zero in 4.75x10-2 s. Part A What is the average induced emf in the secondary coil? IVO ALDA O ? Submit Request Answer

  • A long solenoid (cross-sectional area = 1.10*10^-6 m^2, number of turns per unit length = 2544...

    A long solenoid (cross-sectional area = 1.10*10^-6 m^2, number of turns per unit length = 2544 turns/m) is bent into a circular shape so it looks like a donut. This wire-wound donut is called a toroid. Assume that the diameter of the solenoid is small compared to the radius of the toroid, which is 0.052 m. Find the emf induced in the toroid when the current decreases to 1.3 A from 2.7 A in a time of 0.14 s. The...
