Homework Answers

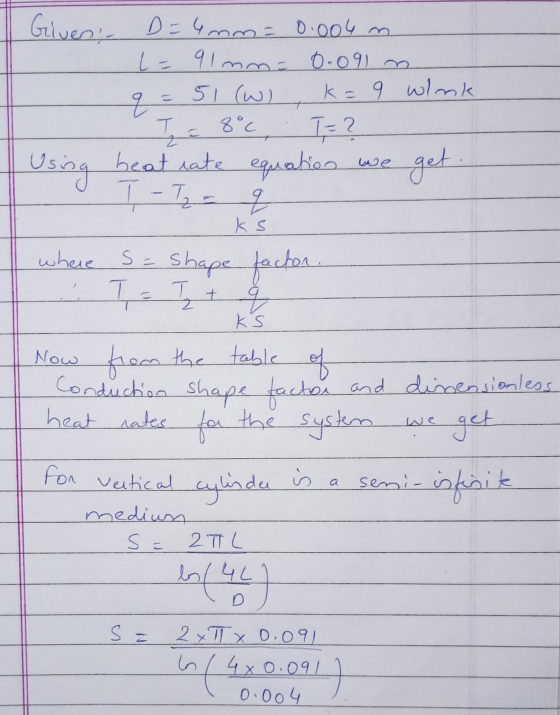

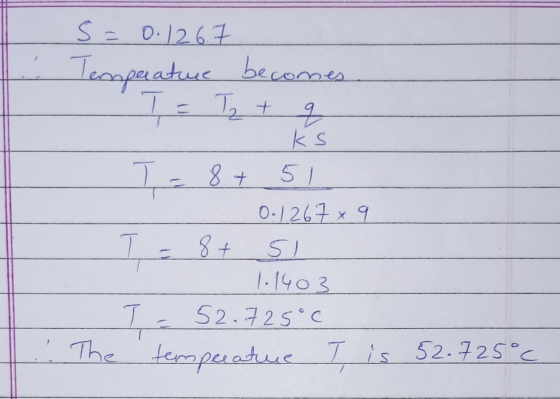

Using
heat rate equation to get the result.
Add Answer to:
Heat Transfer

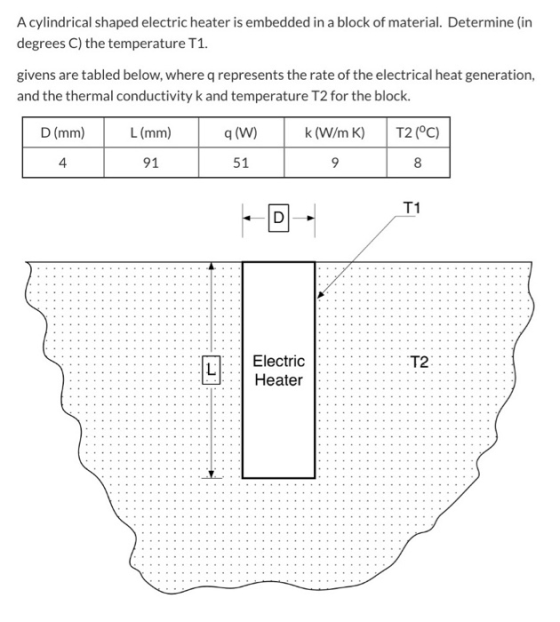

A cylindrical shaped electric heater is embedded in a block of material. Determine (in...
