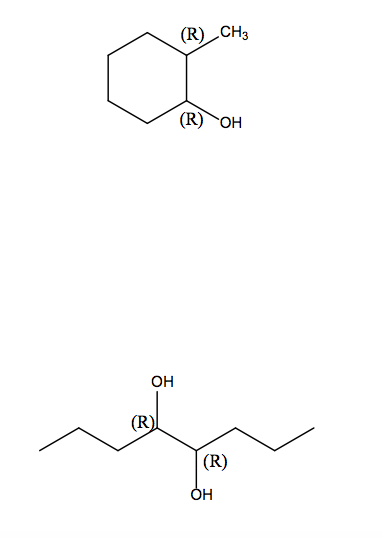

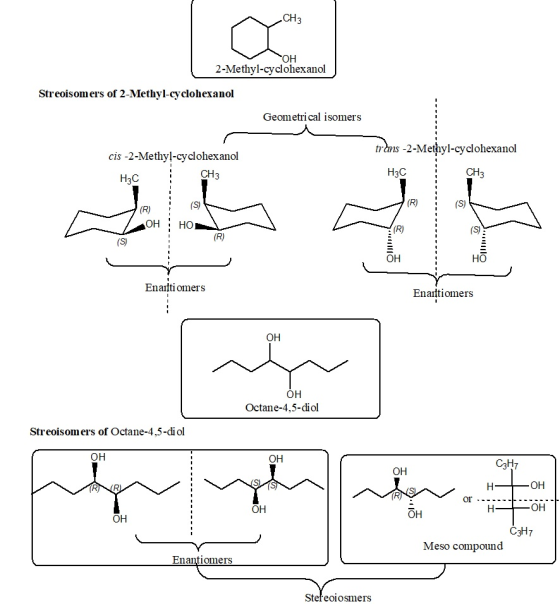

Draw all the stereoisomers (redraw the first with the proper 3-D representation) of the compounds below. The configuration for the first isomer you should draw is provided. Assign R or S configuration to each chirality center in the additional isomers. Indicate the stereochemical relationship (diastereomers, enantiomers, meso compounds) between the first isomer and each of the others. The configuration for the Fischer Projection has been omitted, since stereochemistry can be determined from a 2-D structure. You do not need to include wedges and dashes for the Fischer Projections. Make sure to include the configuration for the first Fischer Projection.
Homework Answers
Add Answer to:
Draw all the stereoisomers (redraw the first with the proper 3-D
representation) of the compounds below....
Solve 12-14 12. Consider the molecule shown below. OH OH f. How many stereoisomers are possible?...
Solve 12-14
12. Consider the molecule shown below. OH OH f. How many stereoisomers are possible? g. Draw each of these stereoisomers. h. Identify pairs of enantiomers and pairs of diastereomers. i. Build a model of the stereoisomer that has both OH groups pointing out. Also, build a model of the mirror image of this molecule. j. Do your two molecules represent enantiomers? Are they chiral? Fischer Projections 13. Build a model of 1-bromo-1-chloroethane. a. Draw a3D representation of this...
1.) Name the following compounds including stereochemistry. + Br 2.) Assign configurations to each of the...
1.) Name the following compounds including stereochemistry. + Br 2.) Assign configurations to each of the chiral centers and circle the stereochemical relationship of the two compounds shown below in Fischer notation? CH3 C2H5 Br- H CH HCI Brt CzH5 A) enantiomers. B) diastereomers - C) constitutional isomers- D) cis/trans - isomers E) meso - same structure CH3 3.) Draw the structure of the meso form of 1,3-dichlorocyclopentane. Take particular care to indicate three-dimensional stereochemical detail properly. -
Draw all stereoisomers associated with 2-Bromo-3-methypentane. Draw the Fischer projections for all stereoisomers associated with 2-Bromo-3-methypentane....
Draw all stereoisomers associated with 2-Bromo-3-methypentane.
Draw the Fischer projections for all stereoisomers associated with
2-Bromo-3-methypentane. Clearly label all stereoisomers as either
enantiomers, diastereomers, or meso. Place the lowest priority
groups in two vertical positions in final display. SHOW ALL WORK
CLEARLY. Thank you!
help needed in andwering this full question Question Three a. For each chiral centre in the...
help needed in andwering this full question
Question Three a. For each chiral centre in the following molecules, assign an Ror S configuration. For full marks, you must clearly indicate the order of priority of the groups attached to each chiral centre, OH OH CH3 CH(OCH3)2 CHO b. Draw all stereoisomers of 2,3-dibromobutane (use 3D dash/wedge structures or Fischer projections to depict stereochemistry). Clearly identify enantiomers, diastereomers and meso compounds. Be sure to identify the stereocentres as Rors
For CH3CH2CH(CH2OH)CH2OH: 1. Carefully draw a structures of the molecule and its mirror image using proper...
For CH3CH2CH(CH2OH)CH2OH: 1. Carefully draw a structures of the molecule and its mirror image using proper stereochemical notation. The mirror images should be drawn side-by-side indicating the mirror plane. Structures should be drawn USING THE ZIG-ZAG STYLE WITH WEDGES AND DASHES. 2. Determine if the mirror images can be superposed and therefore if they are enantiomers and/or diastereomers. 3. Identify the stereogenic center(s) of the molecule. 4. Determine the configuration at each stereogenic center (R or S). 5. For compounds...
1. Draw all stereoisomers of 1,2-dibromo-2-chloro-1-ethanol (fischer projections). How many isomers exist? Which are superimposable on...
1. Draw all stereoisomers of 1,2-dibromo-2-chloro-1-ethanol (fischer projections). How many isomers exist? Which are superimposable on each other? Which are non superimposable? Which are enantiomers? Which are diastereomers? 2. Draw all stereoisomers of 1,2-dichloro-1,2-dibromoethane (fischer projections). How many isomers exist? Which are superimposable on each other? Which are non-superimposable? Which are enantiomers? Which are diastereomers? Is there a mesocompound?
please do all. 7D. Complete the following Fischer projections for all 4 of your models and...
please do all.
7D. Complete the following Fischer projections for all 4 of your models and assign Rand S to all chiral carbons. Label the pairs of enantiomers and the pairs of diastereomers. COOH COOH COOH COOH НО- -Н Н- СН3 COOH Союн COOH соон 7A. Complete the following Fischer projections for the three tartaric acid isomers. Label the pair of enantiomers, a pair of diastereomers, and the meso isomer. Assign R or S designations to all chiral carbons. COOH...
need help with 21-24 21. Label each of the following compounds as "meso" or "not meso."...
need help with 21-24
21. Label each of the following compounds as "meso" or "not meso." (1 pt) он он Br Он он Ән The following problems are about Fischer projections. Watch the Chapter 5 Conclusion Video and read section 5.7 in the Klein textbook before you continue. 22. Assign the following stereocenter as having the Ror S absolute configuration (1 pt) он HEEt 23. Are the following compounds enantiomers, diastereomers, identical, or constitutional isomers? (1 pt) но -н нон...
6&8 OH A. Place a on cach chiral enters in compounds above. B. Draw a Fisher...
6&8
OH A. Place a on cach chiral enters in compounds above. B. Draw a Fisher projection of A and label it C. Draw all possible dinstereomers of A. D. How many total stereoisomers are possible for A (including All Label any meso compounds that you have drawn or were drawn for you Select the term that best describes the relationship between the following structure drawings: A identical C. diasteroomers B. enantiomers SCH CH.CH OCH Kajan BE H ISH, HCY...
14) Which of the following terms best describes the stereochemical relationship of compounds shown below in...
14) Which of the following terms best describes the stereochemical relationship of compounds shown below in Fischer notation? Clationship of the two CH3 Cats H HCI BAH Cats CH3 A) enantiomers B) diastereomers C) constitutional isomers D) cis/trans - isomers E) meso - same structure 15y What term describes the structural relationship between cis-1.2-dimethylcyclopentane and trans-1,2-dimethylcyclopentane? A) not isomers B) constitutional isomers C) enantiomers D) diastereomers E) conformers 16) How many diastereomers are there of the molecule shown below? ÇOZH...
Solve 12-14
12. Consider the molecule shown below. OH OH f. How many stereoisomers are possible? g. Draw each of these stereoisomers. h. Identify pairs of enantiomers and pairs of diastereomers. i. Build a model of the stereoisomer that has both OH groups pointing out. Also, build a model of the mirror image of this molecule. j. Do your two molecules represent enantiomers? Are they chiral? Fischer Projections 13. Build a model of 1-bromo-1-chloroethane. a. Draw a3D representation of this...
1.) Name the following compounds including stereochemistry. + Br 2.) Assign configurations to each of the chiral centers and circle the stereochemical relationship of the two compounds shown below in Fischer notation? CH3 C2H5 Br- H CH HCI Brt CzH5 A) enantiomers. B) diastereomers - C) constitutional isomers- D) cis/trans - isomers E) meso - same structure CH3 3.) Draw the structure of the meso form of 1,3-dichlorocyclopentane. Take particular care to indicate three-dimensional stereochemical detail properly. -
Draw all stereoisomers associated with 2-Bromo-3-methypentane.
Draw the Fischer projections for all stereoisomers associated with
2-Bromo-3-methypentane. Clearly label all stereoisomers as either
enantiomers, diastereomers, or meso. Place the lowest priority
groups in two vertical positions in final display. SHOW ALL WORK
CLEARLY. Thank you!
help needed in andwering this full question
Question Three a. For each chiral centre in the following molecules, assign an Ror S configuration. For full marks, you must clearly indicate the order of priority of the groups attached to each chiral centre, OH OH CH3 CH(OCH3)2 CHO b. Draw all stereoisomers of 2,3-dibromobutane (use 3D dash/wedge structures or Fischer projections to depict stereochemistry). Clearly identify enantiomers, diastereomers and meso compounds. Be sure to identify the stereocentres as Rors
please do all.
7D. Complete the following Fischer projections for all 4 of your models and assign Rand S to all chiral carbons. Label the pairs of enantiomers and the pairs of diastereomers. COOH COOH COOH COOH НО- -Н Н- СН3 COOH Союн COOH соон 7A. Complete the following Fischer projections for the three tartaric acid isomers. Label the pair of enantiomers, a pair of diastereomers, and the meso isomer. Assign R or S designations to all chiral carbons. COOH...
need help with 21-24
21. Label each of the following compounds as "meso" or "not meso." (1 pt) он он Br Он он Ән The following problems are about Fischer projections. Watch the Chapter 5 Conclusion Video and read section 5.7 in the Klein textbook before you continue. 22. Assign the following stereocenter as having the Ror S absolute configuration (1 pt) он HEEt 23. Are the following compounds enantiomers, diastereomers, identical, or constitutional isomers? (1 pt) но -н нон...
6&8
OH A. Place a on cach chiral enters in compounds above. B. Draw a Fisher projection of A and label it C. Draw all possible dinstereomers of A. D. How many total stereoisomers are possible for A (including All Label any meso compounds that you have drawn or were drawn for you Select the term that best describes the relationship between the following structure drawings: A identical C. diasteroomers B. enantiomers SCH CH.CH OCH Kajan BE H ISH, HCY...
14) Which of the following terms best describes the stereochemical relationship of compounds shown below in Fischer notation? Clationship of the two CH3 Cats H HCI BAH Cats CH3 A) enantiomers B) diastereomers C) constitutional isomers D) cis/trans - isomers E) meso - same structure 15y What term describes the structural relationship between cis-1.2-dimethylcyclopentane and trans-1,2-dimethylcyclopentane? A) not isomers B) constitutional isomers C) enantiomers D) diastereomers E) conformers 16) How many diastereomers are there of the molecule shown below? ÇOZH...
