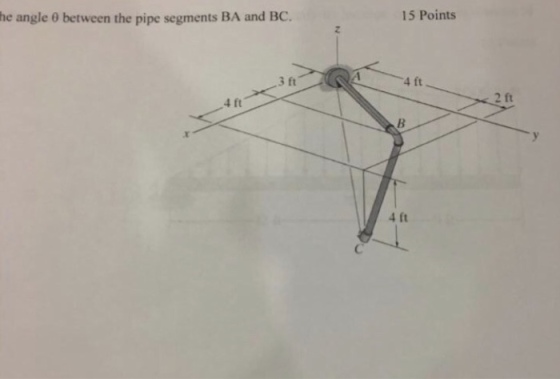

he angle 0 between the pipe segments BA and BC. 15 Points 3 ft 4 ft...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

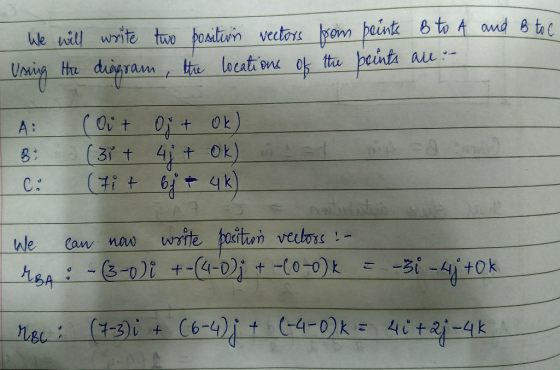

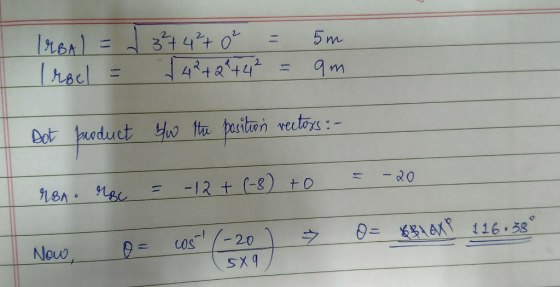

we will wie tao hostwin vetore somn peink BA isc Now

Answer 2

Similar Homework Help Questions

2. Determine the angle u between BA and BC 2 m 4 m F' = 3...

2. Determine the angle u between BA and BC 2 m 4 m F' = 3 kN
The pipe is subjected to the force of F = 60 lbf. Determine the angle between...

The pipe is subjected to the force of F = 60 lbf. Determine the angle between F and the pipe segment BA and the projection of F along this segment. ft 4ft - > 4 ft til 2 ft F = 60 lb degrees FBA Ibf
8. (15 points) Water flows through a 3-in diameter pipe with a velocity of 25 ft/s...

8. (15 points) Water flows through a 3-in diameter pipe with a velocity of 25 ft/s as shown in the figure below. The relative roughness of the pipe is 0.0004 ft, and the loss coefficient for the exit is 1.0. Values for the liquid height in the tank (z) and the pipe length between the standpipe and tank (L) are 6 ft and 10 ft, respectively. Determine the height, h (ft), to which the water rises in the standpipe. P...

PHYS 202 Assignment #2 To be handed by Fri Jan 31, 2020 Show all of your...

PHYS 202 Assignment #2 To be handed by Fri Jan 31, 2020 Show all of your work to get full marks. Note that numbers and figures may be different from those in the textbook Textbook Chapter Problem numbers 2-131+2-133 3-28, 3-54,3-50 2-131+2-133: (a) Determine the angle between the pipe segments BA and BC. (b) Determine the magnitudes of the components of F acting along and perpendicular to segment BA of the pipe assembly. 3 ft 4 ft .4 ft F...
8. (15 points) Water flows through a 2-in diameter pipe with a velocity of 15 ft/s...

8. (15 points) Water flows through a 2-in diameter pipe with a velocity of 15 ft/s as shown in the figure below. The relative roughness of the pipe is 0.0004 ft, and the loss coefficient for the exit is 1.0. Values for the liquid height in the tank (2) and the pipe length between the standpipe and tank (L) are 8 ft and 8 ft, respectively. Determine the height, h (ft), to which the water rises in the standpipe. P...
3 ft 12 ft 8 ft 15 ft Determine the angle between cables AC and AB.

3 ft 12 ft 8 ft 15 ft Determine the angle between cables AC and AB.

4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension...

4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension in the cable is 750 lb. Determine the angle between the cable and member BA. a. Determine the components of Fac (the cable force acting at B) parallel and perpendicular to member BA. b. 1.6 15 ft 0.8 ft 35° 0.9ft E4.7.9
Problem #3 (15 points) For the pipe assembly shown below (a) Express F as a Cartesian...

Problem #3 (15 points) For the pipe assembly shown below (a) Express F as a Cartesian vector. (3 points) (b) Determine the moment of F about point A. (3 points) (c) Determine the moment of F about point B. (3 points) (d) Determine the moment of F about the AB axis (3 point), (e) Determine the magnitude of the moment of F about the x-axis (1 point), (f) Determine the magnitude of the moment of F about the y-axis (1...
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle...

The three supporting cables exert the forces shown on the sign. a) b) Determine the angle θ between BA and BC. Determine the magnitude of the projected component of the 3 kN force acting along the axis BC of the pipe. 2 m 4 m F-3KNC

Problem #8: (10 Points): For the flowing robot arm ai-3 ft and a,-2 ft. The a, angle with vertica...

Problem #8: (10 Points): For the flowing robot arm ai-3 ft and a,-2 ft. The a, angle with vertical axis is 30 degrees while the a, axis with vertical axis is 15 degrees. a) Calculate the position of point P b) Calculate the maximum sweeping area e)Calculate the maximum sweeping volume a, Axis 2 Axis 1 Problem #9: (10 Points): For the following Robot arm, о,-15.0,- 3ft, 2-2 ft and ,-3ft. 150, and e, 30, 1 Find the Cartesian axes...
