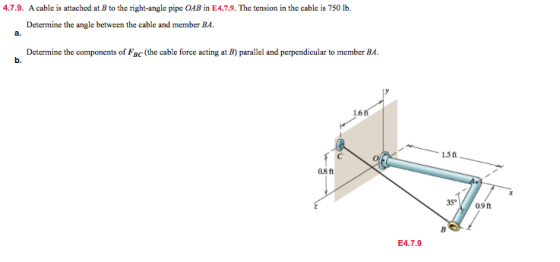

4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension...
A cable is attached at B to the right-angle pipe OAB in the figure. The tension...

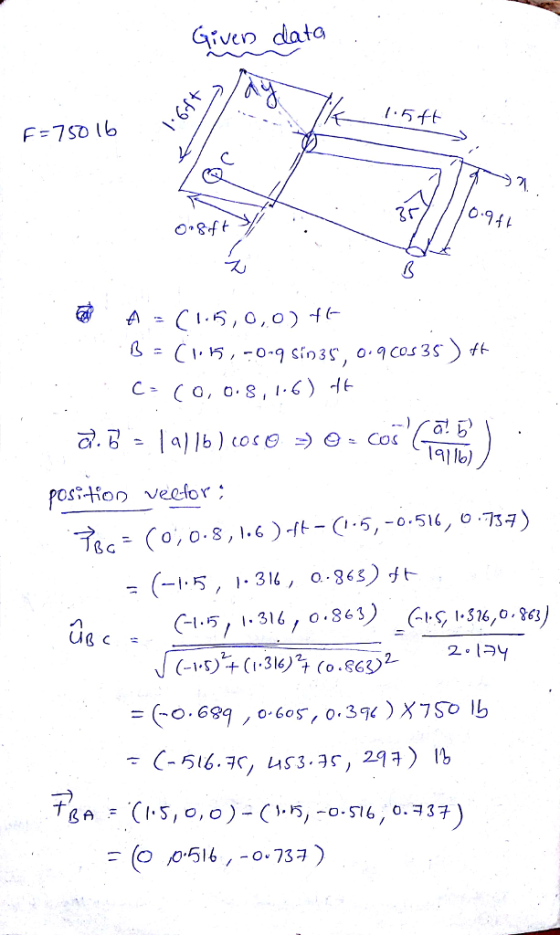

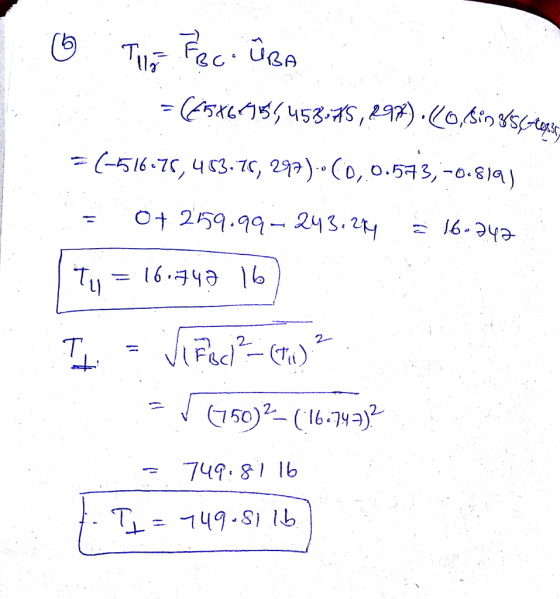

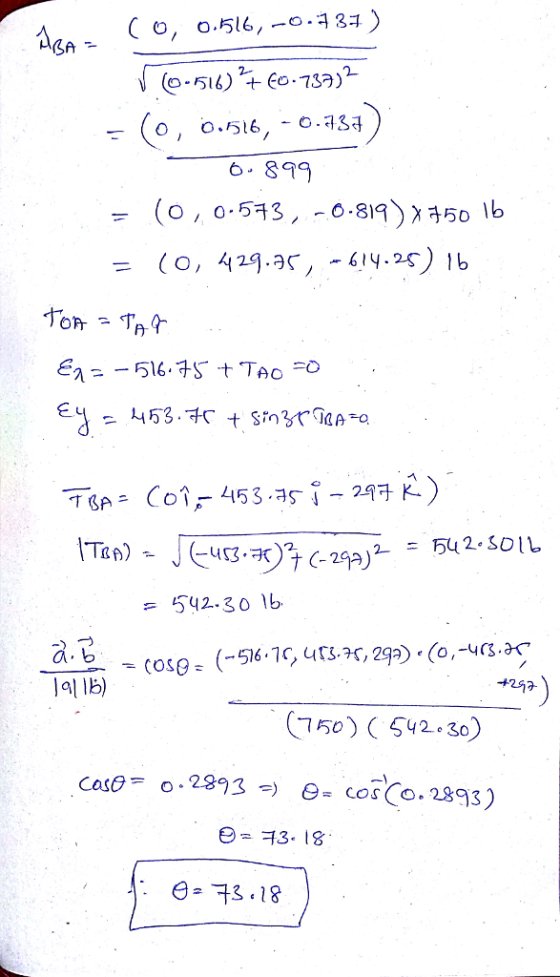

A cable is attached at B to the right-angle pipe OAB in the figure. The tension in the cable is 730 lb. (a) Determine the angle between the cable and member BA. Determine the components of FBC (the cable force acting at B) (b) parallel to member BA, (c) perpendicular to member BA. 1.2 ft 1.7 ft. 0.7 ft 30 0.8 ft (a) degrees (b) Ib (c) Ib
2/134 The right-angle pipe OAB of Prob. 2/111 is shown again here. Replace the 750-N tensile...
2/134 The right-angle pipe OAB of Prob. 2/111 is shown again here. Replace the 750-N tensile force which the cable exerts on point B by a force-couple system at point O. 1.6 m 0.7 m 2
The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on...
The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on point B by a force-couple system at point O.
Given: Two cables are attached to a hook at Pt A (see figure). The tension in...
Given: Two cables are attached to a hook at Pt A (see figure). The tension in cable AB is 600 lb. The tension in cable AC is 850 lb Determine the resultant force magnitude and corresponding coordinate direction angles acting on the hook. Retain three significant digits in each of your final answers. For your diagram, carefully and neatly redraw the cables AB and AC on a rotated coordinate system as shown. Find: Label endpoints. Dimension such that the position...
An oil pipeline is supported at 6-ft intervals by vertical hangers attached to the cable shown....
An oil pipeline is supported at 6-ft intervals by vertical hangers attached to the cable shown. Due to the combined weight of the pipe and its contents the tension in each hanger is 400 lb. Knowing that, do 10 ft determine (a) the maximum tension in the cable, (b) the distance de dsdcdp -5 @ 6 ft = 30 ft Adidation
The pipe is subjected to the force of F = 60 lbf. Determine the angle between...
The pipe is subjected to the force of F = 60 lbf. Determine the angle between F and the pipe segment BA and the projection of F along this segment. ft 4ft - > 4 ft til 2 ft F = 60 lb degrees FBA Ibf
2. Three cables are attached at point B on the boom of a large construction crane as shown in the...
2. Three cables are attached at point B on the boom of a large construction crane as shown in the figure below. The cable forces acting at point B are FBc 50 kN FBD-100 kN and FBA-75 kN. Determine: a) The resultant, R, of the three (3) forces acting at B, b) The moment of R about the point A, c) The moment of R about the line AD d) The perpendicular distance from A to the line of action...
Problem 3.2 Determine the moment around B from the cable, and the perpendicular distance from point B to cable AC Student ID Number: Given Length (ft) 10 Cy-5+C Tension in cable500 lbs Break force in...
Problem 3.2 Determine the moment around B from the cable, and the perpendicular distance from point B to cable AC Student ID Number: Given Length (ft) 10 Cy-5+C Tension in cable500 lbs Break force into their x, y, z components using unit vector uni AC vector Fx AX dz chec 2.Calculate moments of forces about (0,0) M-rxFrx ry rz Fz Mi Mk- Total M 3. Find the perpendicular distance from point A to the cable BC DistForce
Problem 3.2 Determine...
Help please Knowing that the tension in cable AB is 1425 N, determine the components of...
Help please
Knowing that the tension in cable AB is 1425 N, determine the components of the force exerted on the plate at B. 360 mm 920 mm 600 mm D A force acts at the origin of a coordinate system in a direction defined by the angles a-70.go and θ'-144.ge, Knowing that the z component of the force is -52.0 lb, determine (a) the angle 8,, (b) the other components and the magnitude of the force. 82
A cable is attached at B to the right-angle pipe OAB in the figure. The tension in the cable is 730 lb. (a) Determine the angle between the cable and member BA. Determine the components of FBC (the cable force acting at B) (b) parallel to member BA, (c) perpendicular to member BA. 1.2 ft 1.7 ft. 0.7 ft 30 0.8 ft (a) degrees (b) Ib (c) Ib
2/134 The right-angle pipe OAB of Prob. 2/111 is shown again here. Replace the 750-N tensile force which the cable exerts on point B by a force-couple system at point O. 1.6 m 0.7 m 2
The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on point B by a force-couple system at point O.
Given: Two cables are attached to a hook at Pt A (see figure). The tension in cable AB is 600 lb. The tension in cable AC is 850 lb Determine the resultant force magnitude and corresponding coordinate direction angles acting on the hook. Retain three significant digits in each of your final answers. For your diagram, carefully and neatly redraw the cables AB and AC on a rotated coordinate system as shown. Find: Label endpoints. Dimension such that the position...
An oil pipeline is supported at 6-ft intervals by vertical hangers attached to the cable shown. Due to the combined weight of the pipe and its contents the tension in each hanger is 400 lb. Knowing that, do 10 ft determine (a) the maximum tension in the cable, (b) the distance de dsdcdp -5 @ 6 ft = 30 ft Adidation
The pipe is subjected to the force of F = 60 lbf. Determine the angle between F and the pipe segment BA and the projection of F along this segment. ft 4ft - > 4 ft til 2 ft F = 60 lb degrees FBA Ibf
2. Three cables are attached at point B on the boom of a large construction crane as shown in the figure below. The cable forces acting at point B are FBc 50 kN FBD-100 kN and FBA-75 kN. Determine: a) The resultant, R, of the three (3) forces acting at B, b) The moment of R about the point A, c) The moment of R about the line AD d) The perpendicular distance from A to the line of action...
Problem 3.2 Determine the moment around B from the cable, and the perpendicular distance from point B to cable AC Student ID Number: Given Length (ft) 10 Cy-5+C Tension in cable500 lbs Break force into their x, y, z components using unit vector uni AC vector Fx AX dz chec 2.Calculate moments of forces about (0,0) M-rxFrx ry rz Fz Mi Mk- Total M 3. Find the perpendicular distance from point A to the cable BC DistForce
Problem 3.2 Determine...
Help please
Knowing that the tension in cable AB is 1425 N, determine the components of the force exerted on the plate at B. 360 mm 920 mm 600 mm D A force acts at the origin of a coordinate system in a direction defined by the angles a-70.go and θ'-144.ge, Knowing that the z component of the force is -52.0 lb, determine (a) the angle 8,, (b) the other components and the magnitude of the force. 82
